Drinking Fountain Bottle Filler Converter, Mounting Bracket and Filter
for Elkay Ezo, Ezs, Lzo and Lzs

| Üretici için | Elkay |
| Üretici Serisi için | EZO, EZS, LZO, LZS |
| Montaj Konumu | Duvar |
| Gövde Rengi | Gri |
| Malzeme | |
| Gövde | Paslanmaz Çelik |
| Havza | Plastik |
| İçerir | Mounting Bracket, Filter |
| Yükseklik | 18 7/8"47.94 cm |
| Genişlik | 17 7/8"45.40 cm |
| Derinlik | 19"48.26 cm |
| Akım | 1 amp |
| Gerilim | 120V AC |
| Giriş | |
| Bağlantı Portu | Boru |
| Bağlantı | Tak ve Bağlan |
| Boru Dış Çapı | 3/8"0.95 cm |
| Montaj | |
| Dahil Edilen Bağlantı Elemanları | Evet |
| Delik Çapı (Delik Sayısı) | 7/16" (6)1.11 cm |
| Özellikler | Bottle Counter, Drain, Motion Sensor, Smooth Flow |
| Sertifikasyon | C-UL Listeli, CSA Certified, UL Listed |
| Çevre | Yiyecek ve İçecek |
| Gıda Endüstrisi Standardı | NSF/ANSI 372, NSF/ANSI 61 |
| Dış Mekan Kullanımı için | Hayır |
| Karşılanan Teknik Özellikler | UL 399 |
| UL Dosya Numarası | SA45441 |
| Menşe Ülke | Amerika Birleşik Devletleri |
| DFARS Uyumluluğu | Özel Metaller COTS Muafiyeti |
| İhracat Kontrol Sınıflandırma Numarası (ECCN) | EAR99 |
| REACH Uyumluluğu | Uygun Değil |
| RoHS Uyumluluğu | Uygun Değil |
| Schedule B Numarası | 847989.9900 |
| ABD-Meksika-Kanada Anlaşması (USMCA) Uygunluğu | Hayır |

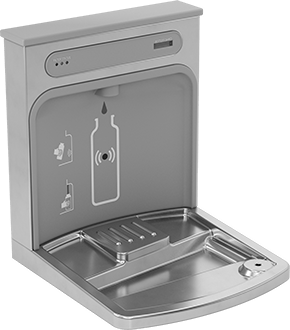

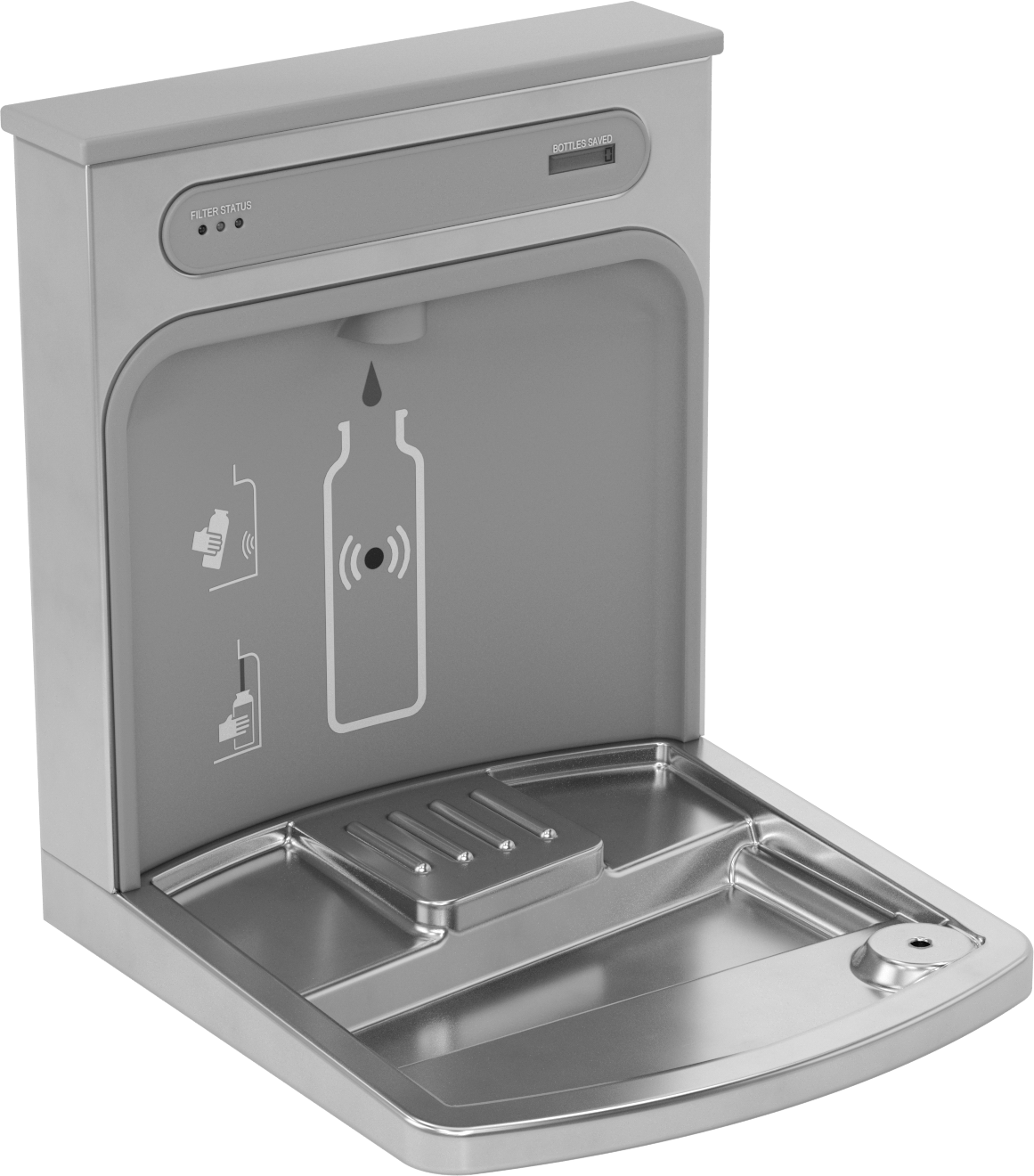

Turn standard drinking fountains into water bottle filling stations. Just set a water bottle in front of the motion sensor to fill it up—the flow will stop once you remove the bottle. The spout produces a smooth stream that prevents splashing. A counter displays how many water bottles have been filled so you can see how many single-use plastic bottles you’ve saved.
These converters replace the basin on your existing drinking fountain, so you can upgrade your fountain without replacing the entire unit. Ensure wheelchair users have access by installing the spout 48” or less off the floor. Water flows for 10 seconds before turning off, so they’re ADA compliant.
Filter—Converters with a filter get rid of any tastes or smells and reduce the amount of lead and chlorine in the water. They're compatible with models starting with LZS, LZO, and LMA that already have a filter, or you can use them to upgrade models starting with EZS, EZO, and EMA from a non-filtered unit to a filtered unit. Change the filter cartridge every 3,000 gallons, or when signaled by the filter status light.
