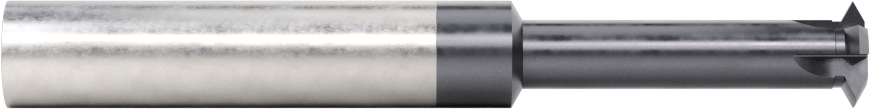

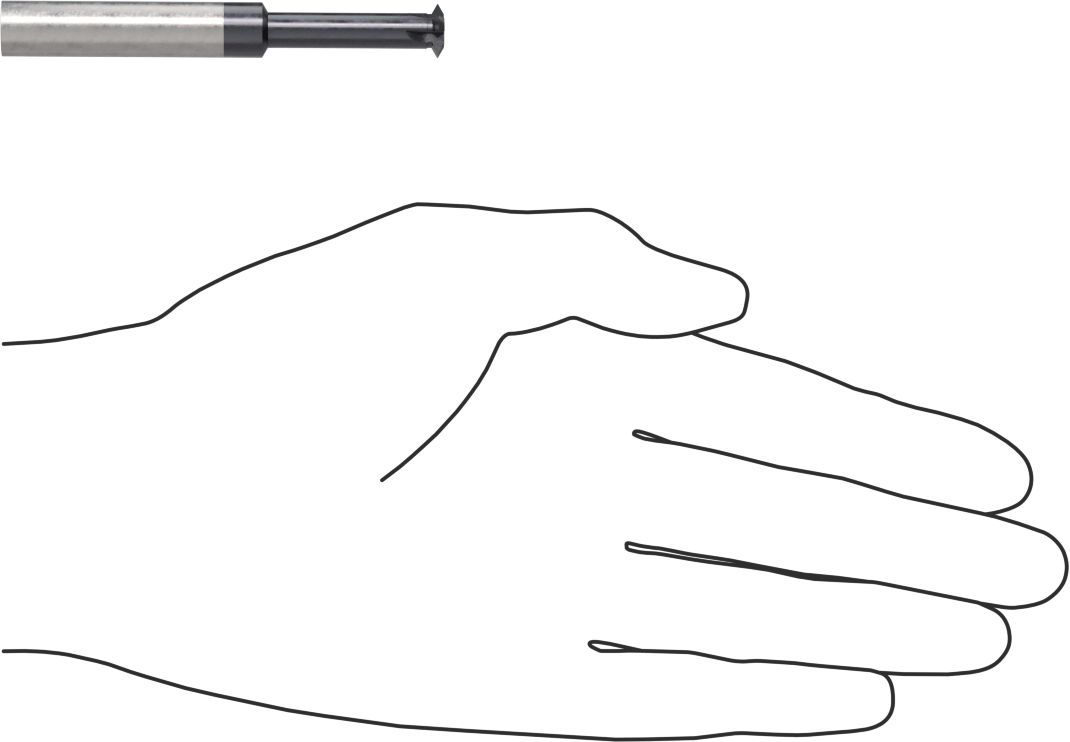

Thread Mill for Internal/External Threading

for 1/2" (1.27 cm) Minimum Thread

Thread Mill for Internal/External Threading, for 1/2" Minimum Thread
₺10.656 Adet
4425N21
1'li paket
Diş Konumu (Diş Tipi) içinFor Internal/External Threads (UNC, UNEF, UNF, UNS) and Internal Threads (UNJ)
MalzemeAlüminyum Titanyum Nitrür (AlTiN) Kaplı Karbür
Minimum Vida Boyutu için1/2"1.27 cm
İnç Başına Diş Sayısı12 to 48
Toplam Uzunluk3"7.62 cm
Sap Boyutu3/8"0.95 cm
Boyun Çapı0.24"0.61 cm
UygulamaDiş Açma
Kesim StiliDiş Açma
Delik Tipi içinPerde, Geçişli
Kullanılacağı YerAlüminyum, Pirinç, Bronz, Bakır, Fiberglas, Demir, Nikel, Plastik, Paslanmaz Çelik, Çelik, Titanyum, Sertleştirilmiş Çelik
Maksimum Diş Açma Derinliği1 13/64"3.06 cm
Freze Çapı0.372"0.94 cm
Diş Açma Uç Sayısı1
Sap TipiYuvarlak
Satış AdıBireysel
Diş YönüSağ El ve Sol El
Menşe ÜlkeAmerika Birleşik Devletleri
DFARS UyumluluğuÖzel Metaller COTS Muafiyeti
İhracat Kontrol Sınıflandırma Numarası (ECCN)EAR99
REACH UyumluluğuREACH (EC 1907/2006) (02/04/2026, 253 SVHC) Uyumlu
RoHS UyumluluğuRoHS 3 (2015/863/EU) Uyumlu
Schedule B Numarası820740.0000
ABD-Meksika-Kanada Anlaşması (USMCA) UygunluğuEvet

Cut a range of thread sizes with a single tool. These thread mills can also produce both right-hand and left-hand threads. All are made of solid carbide with an aluminum-titanium-nitride (AlTiN) coating, so they have high strength and excellent wear resistance, even when cutting hard and abrasive material. Use them in a CNC machine that allows helical interpolation.

When used for internal threading, thread mills can create threads of any size equal to or greater than the minimum size listed. They leave space in the hole for chips to fall, and a broken thread mill can fall into the hole without damaging the workpiece.

For Internal/External Threads (UNC, UNEF, UNF, UNS) and Internal Threads (UNJ)—Thread mills have a single cutting point that cuts internal/external UNC, UNEF, UNF, or UNS threads in a range of different pitches on both the inside and outside of the workpiece. They can also cut internal UNJ threads in a range of different pitches.
