Dalgalı Disk Yaylar
139 ürün
Birden fazla temas noktası yükü eşit olarak dağıtır, bu nedenle bu yaylar, kavisli disk yaylara göre desteği daha iyi dengeler. Ayrıca dalga yaylı kilit pullarından daha yüksek itme yüklerini de kaldırabilirler.
| Görsel | Fiyat | ID | Dış Çap | Disk Yay Tipi | Kalınlık | Malzeme | Yay Tipi | Yükseklik | Çalışma yükü | Çalışma Yükünde Sıkıştırılmış Yükseklik | Çalışma Yükünde Sapma | Pul Tipi | Performans | Parça No |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dalgalı Disk Yaylar | ||||||||||||||
 | ₺1.770 | 0.096" | 0.187" | Dalga | 0.005" | Çelik | Disk | 0.025" | 7 lb. | 0.022" | 0.003" | Dalga | Yığınlanabilir | 9714K191 |
 | ₺1.118 | 0.098" | 0.152" | Dalga | 0.005" | Çelik | Disk | 0.032" | 4 lb. | 0.03" | 0.002" | Dalga | Yığınlanabilir | 9714K192 |
 | ₺1.584 | 0.11" | 0.196" | Dalga | 0.012" | Çelik | Disk | 0.033" | 33 lb. | 0.032" | 0.001" | Dalga | Yığınlanabilir | 9714K198 |
 | ₺1.398 | 0.12" | 0.225" | Dalga | 0.006" | Çelik | Disk | 0.03" | 9 lb. | 0.027" | 0.003" | Dalga | Yığınlanabilir | 9714K214 |
 | ₺1.863 | 0.125" | 0.25" | Dalga | 0.032" | Çelik | Disk | 0.062" | 153 lb. | 0.061" | 0.001" | Dalga | Yığınlanabilir | 9714K226 |
 | ₺2.096 | 0.129" | 0.375" | Dalga | 0.005" | Çelik | Disk | 0.04" | 3.5 lb. | 0.031" | 0.009" | Dalga | Yığınlanabilir | 9714K233 |
 | ₺2.532 | 0.134" | 0.183" | Dalga | 0.0035" | 302 Stainless Steel, Stainless Steel | Disk | 0.023" | 0.4 lb. | 0.012" | 0.011" | Dalga | Korozyona Dayanıklı, İstiflenebilir | 9714K21 |
 | ₺2.096 | 0.143" | 0.282" | Dalga | 0.005" | Çelik | Disk | 0.042" | 7 lb. | 0.036" | 0.006" | Dalga | Yığınlanabilir | 9714K234 |
 | ₺1.910 | 0.155" | 0.281" | Dalga | 0.006" | Çelik | Disk | 0.045" | 8.5 lb. | 0.04" | 0.005" | Dalga | Yığınlanabilir | 9714K235 |
 | ₺2.121 | 0.16" | 0.345" | Dalga | 0.012" | Çelik | Disk | 0.06" | 21 lb. | 0.057" | 0.003" | Dalga | Yığınlanabilir | 9714K243 |
 | ₺1.398 | 0.165" | 0.25" | Dalga | 0.005" | Çelik | Disk | 0.025" | 3.5 lb. | 0.019" | 0.006" | Dalga | Yığınlanabilir | 9714K245 |
 | ₺2.121 | 0.167" | 0.375" | Dalga | 0.016" | Çelik | Disk | 0.04" | 39 lb. | 0.037" | 0.003" | Dalga | Yığınlanabilir | 9714K246 |
 | ₺2.121 | 0.169" | 0.5" | Dalga | 0.016" | Çelik | Disk | 0.05" | 38 lb. | 0.045" | 0.005" | Dalga | Yığınlanabilir | 9714K247 |
 | ₺1.491 | 0.18" | 0.343" | Dalga | 0.01" | Çelik | Disk | 0.03" | 26 lb. | 0.025" | 0.005" | Dalga | Yığınlanabilir | 9714K248 |
 | ₺1.956 | 0.187" | 0.265" | Dalga | 0.008" | Çelik | Disk | 0.06" | 7 lb. | 0.056" | 0.004" | Dalga | Yığınlanabilir | 9714K263 |
 | ₺1.538 | 0.19" | 0.281" | Dalga | 0.01" | Çelik | Disk | 0.03" | 13 lb. | 0.026" | 0.004" | Dalga | Yığınlanabilir | 9714K268 |
 | ₺2.502 | 0.194" | 0.242" | Dalga | 0.0057" | 302 Stainless Steel, Stainless Steel | Disk | 0.03" | 0.75 lb. | 0.015" | 0.015" | Dalga | Korozyona Dayanıklı, İstiflenebilir | 9714K22 |
 | ₺2.096 | 0.198" | 0.438" | Dalga | 0.015" | Çelik | Disk | 0.06" | 10 lb. | 0.057" | 0.003" | Dalga | Yığınlanabilir | 9714K269 |
 | ₺2.049 | 0.198" | 0.438" | Dalga | 0.025" | Çelik | Disk | 0.06" | 169 lb. | 0.058" | 0.002" | Dalga | Yığınlanabilir | 9714K277 |
 | ₺1.630 | 0.203" | 0.368" | Dalga | 0.016" | Çelik | Disk | 0.045" | 62 lb. | 0.042" | 0.003" | Dalga | Yığınlanabilir | 9714K278 |
 | ₺1.257 | 0.203" | 0.438" | Dalga | 0.01" | Çelik | Disk | 0.05" | 27 lb. | 0.046" | 0.004" | Dalga | Yığınlanabilir | 9714K323 |
 | ₺1.770 | 0.206" | 0.36" | Dalga | 0.01" | Çelik | Disk | 0.06" | 22 lb. | 0.055" | 0.005" | Dalga | Yığınlanabilir | 9714K342 |
 | ₺1.491 | 0.219" | 0.414" | Dalga | 0.02" | Çelik | Disk | 0.071" | 105 lb. | 0.068" | 0.003" | Dalga | Yığınlanabilir | 9714K347 |
 | ₺1.491 | 0.221" | 0.374" | Dalga | 0.01" | Çelik | Disk | 0.05" | 20 lb. | 0.044" | 0.006" | Dalga | Yığınlanabilir | 9714K348 |
 | ₺2.345 | 0.243" | 0.305" | Dalga | 0.0066" | 302 Stainless Steel, Stainless Steel | Disk | 0.03" | 0.75 lb. | 0.015" | 0.015" | Dalga | Korozyona Dayanıklı, İstiflenebilir | 9714K23 |
 | ₺2.148 | 0.244" | 0.386" | Dalga | 0.008" | High-Carbon Steel, Steel | Disk | 0.047" | 5.4 lb. | 0.008" | 0.039" | Dalga | Yığınlanabilir | 9714K12 |
 | ₺1.025 | 0.255" | 0.345" | Dalga | 0.008" | Çelik | Disk | 0.03" | 5.5 lb. | 0.022" | 0.008" | Dalga | Yığınlanabilir | 9714K352 |
 | ₺2.589 | 0.265" | 0.367" | Dalga | 0.006" | 302 Stainless Steel, Stainless Steel | Disk | 0.03" | 3 lb. | 0.015" | 0.015" | Dalga | Korozyona Dayanıklı, İstiflenebilir | 9714K25 |

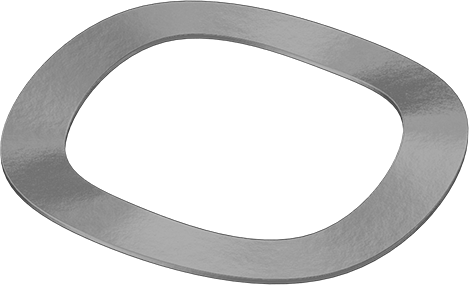

 | ₺2.226 | 0.265" | 0.367" | Dalga | 0.006" | High-Carbon Steel, Steel | Disk | 0.03" | 3 lb. | 0.015" | 0.015" | Dalga | Yığınlanabilir | 9714K24 |
 | ₺1.855 | 0.283" | 0.472" | Dalga | 0.008" | High-Carbon Steel, Steel | Disk | 0.055" | 44 lb. | 0.008" | 0.047" | Dalga | Yığınlanabilir | 9714K13 |
 | ₺2.330 | 0.29" | 0.531" | Dalga | 0.01" | Çelik | Disk | 0.07" | 24 lb. | 0.059" | 0.011" | Dalga | Yığınlanabilir | 9714K357 |
 | ₺1.491 | 0.312" | 0.463" | Dalga | 0.016" | Çelik | Disk | 0.031" | 54 lb. | 0.027" | 0.004" | Dalga | Yığınlanabilir | 9714K361 |
 | ₺1.491 | 0.312" | 0.463" | Dalga | 0.02" | Çelik | Disk | 0.05" | 97 lb. | 0.047" | 0.003" | Dalga | Yığınlanabilir | 9714K363 |
 | ₺1.608 | 0.325" | 0.5" | Dalga | 0.015" | Çelik | Disk | 0.055" | 35 lb. | 0.047" | 0.008" | Dalga | Yığınlanabilir | 9714K365 |
 | ₺2.168 | 0.328" | 0.682" | Dalga | 0.01" | Çelik | Disk | 0.062" | 15 lb. | 0.045" | 0.017" | Dalga | Yığınlanabilir | 9714K367 |
 | ₺1.608 | 0.335" | 0.562" | Dalga | 0.01" | Çelik | Disk | 0.06" | 36 lb. | 0.052" | 0.008" | Dalga | Yığınlanabilir | 9714K376 |
 | ₺1.956 | 0.346" | 0.562" | Dalga | 0.01" | Çelik | Disk | 0.08" | 18 lb. | 0.066" | 0.014" | Dalga | Yığınlanabilir | 9714K383 |
 | ₺2.535 | 0.35" | 0.492" | Dalga | 0.007" | 302 Stainless Steel, Stainless Steel | Disk | 0.035" | 4 lb. | 0.02" | 0.015" | Dalga | Korozyona Dayanıklı, İstiflenebilir | 9714K28 |
 | ₺2.139 | 0.35" | 0.492" | Dalga | 0.007" | High-Carbon Steel, Steel | Disk | 0.035" | 4 lb. | 0.02" | 0.015" | Dalga | Yığınlanabilir | 9714K27 |
 | ₺2.142 | 0.365" | 0.485" | Dalga | 0.006" | Çelik | Disk | 0.06" | 2.5 lb. | 0.04" | 0.02" | Dalga | Yığınlanabilir | 9714K389 |
 | ₺1.677 | 0.385" | 0.5" | Dalga | 0.005" | Çelik | Disk | 0.05" | 1.5 lb. | 0.024" | 0.026" | Dalga | Yığınlanabilir | 9714K392 |
 | ₺1.118 | 0.385" | 0.5" | Dalga | 0.01" | Çelik | Disk | 0.05" | 6 lb. | 0.037" | 0.013" | Dalga | Yığınlanabilir | 9714K393 |
 | ₺2.990 | 0.397" | 0.484" | Dalga | 0.009" | 302 Stainless Steel, Stainless Steel | Disk | 0.029" | 4 lb. | 0.02" | 0.009" | Dalga | Korozyona Dayanıklı, İstiflenebilir | 9714K96 |
 | ₺2.021 | 0.397" | 0.484" | Dalga | 0.009" | High-Carbon Steel, Steel | Disk | 0.029" | 4 lb. | 0.02" | 0.009" | Dalga | Yığınlanabilir | 9714K26 |
 | ₺1.760 | 0.413" | 0.622" | Dalga | 0.006" | High-Carbon Steel, Steel | Disk | 0.053" | 37 lb. | 0.006" | 0.047" | Dalga | Yığınlanabilir | 9714K14 |
 | ₺1.910 | 0.413" | 0.622" | Dalga | 0.012" | High-Carbon Steel, Steel | Disk | 0.059" | 77 lb. | 0.012" | 0.047" | Dalga | Yığınlanabilir | 9714K15 |
 | ₺2.669 | 0.44" | 0.618" | Dalga | 0.008" | 302 Stainless Steel, Stainless Steel | Disk | 0.04" | 4 lb. | 0.015" | 0.025" | Dalga | Korozyona Dayanıklı, İstiflenebilir | 9714K32 |
 | ₺2.486 | 0.44" | 0.618" | Dalga | 0.008" | High-Carbon Steel, Steel | Disk | 0.04" | 4 lb. | 0.025" | 0.015" | Dalga | Yığınlanabilir | 9714K31 |
 | ₺3.446 | 0.459" | 0.608" | Dalga | 0.008" | 302 Stainless Steel, Stainless Steel | Disk | 0.04" | 4 lb. | 0.015" | 0.025" | Dalga | Korozyona Dayanıklı, İstiflenebilir | 9714K97 |
 | ₺2.453 | 0.459" | 0.608" | Dalga | 0.008" | High-Carbon Steel, Steel | Disk | 0.037" | 4 lb. | 0.025" | 0.012" | Dalga | Yığınlanabilir | 9714K29 |
 | ₺2.003 | 0.505" | 0.656" | Dalga | 0.006" | Çelik | Disk | 0.07" | 4 lb. | 0.049" | 0.021" | — | Yığınlanabilir | 9714K396 |

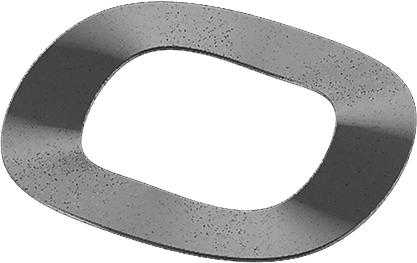

 | ₺1.910 | 0.52" | 0.74" | Dalga | 0.008" | Yüksek Karbonlu Çelik | Disk | 0.063" | 17.6 lb. | 0.008" | 0.055" | — | Yığınlanabilir | 9714K1 |
 | ₺2.168 | 0.52" | 0.74" | Dalga | 0.016" | Çelik | Disk | 0.08" | 25 lb. | 0.062" | 0.018" | — | Yığınlanabilir | 9714K428 |
 | ₺2.930 | 0.531" | 0.734" | Dalga | 0.009" | 302 Paslanmaz Çelik | Disk | 0.05" | 5.5 lb. | 0.02" | 0.03" | — | Korozyona Dayanıklı, İstiflenebilir | 9714K35 |
 | ₺2.403 | 0.531" | 0.734" | Dalga | 0.009" | Yüksek Karbonlu Çelik | Disk | 0.05" | 6 lb. | 0.03" | 0.02" | — | Yığınlanabilir | 9714K34 |
 | ₺1.956 | 0.545" | 0.852" | Dalga | 0.032" | Çelik | Disk | 0.08" | 168 lb. | 0.07" | 0.01" | — | Yığınlanabilir | 9714K458 |

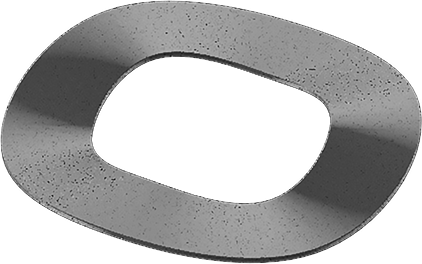

 | ₺1.955 | 0.551" | 0.858" | Dalga | 0.012" | Yüksek Karbonlu Çelik | Disk | 0.063" | 77 lb. | 0.012" | 0.051" | — | Yığınlanabilir | 9714K16 |
 | ₺1.863 | 0.56" | 0.75" | Dalga | 0.01" | Çelik | Disk | 0.045" | 8 lb. | 0.016" | 0.029" | — | Yığınlanabilir | 9714K464 |
 | ₺1.677 | 0.565" | 0.687" | Dalga | 0.01" | Çelik | Disk | 0.062" | 8 lb. | 0.036" | 0.026" | — | Yığınlanabilir | 9714K492 |
 | ₺3.020 | 0.588" | 0.731" | Dalga | 0.009" | 302 Paslanmaz Çelik | Disk | 0.047" | 4 lb. | 0.017" | 0.03" | — | Korozyona Dayanıklı, İstiflenebilir | 9714K98 |

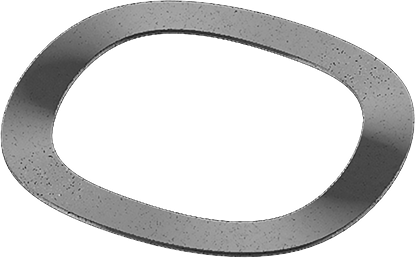

 | ₺2.403 | 0.588" | 0.731" | Dalga | 0.009" | Yüksek Karbonlu Çelik | Disk | 0.047" | 4 lb. | 0.03" | 0.017" | — | Yığınlanabilir | 9714K33 |
 | ₺1.025 | 0.609" | 0.859" | Dalga | 0.01" | Çelik | Disk | 0.062" | 10 lb. | 0.026" | 0.036" | — | Yığınlanabilir | 9714K518 |

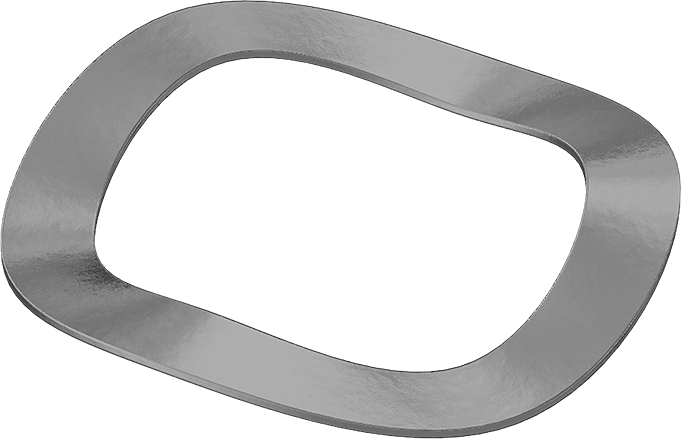

 | ₺1.991 | 0.622" | 0.858" | Dalga | 0.012" | Yüksek Karbonlu Çelik | Disk | 0.093" | 88 lb. | 0.012" | 0.081" | — | Yığınlanabilir | 9714K2 |
 | ₺2.609 | 0.64" | 0.866" | Dalga | 0.02" | Çelik | Disk | 0.045" | 41 lb. | 0.028" | 0.017" | — | Yığınlanabilir | 9714K562 |
 | ₺1.841 | 0.641" | 0.875" | Dalga | 0.008" | Çelik | Disk | 0.125" | 5.5 lb. | 0.077" | 0.048" | — | Yığınlanabilir | 9714K636 |
 | ₺2.783 | 0.65" | 0.855" | Dalga | 0.01" | 302 Paslanmaz Çelik | Disk | 0.06" | 5.5 lb. | 0.03" | 0.03" | — | Korozyona Dayanıklı, İstiflenebilir | 9714K37 |
 | ₺2.406 | 0.65" | 0.855" | Dalga | 0.01" | Yüksek Karbonlu Çelik | Disk | 0.06" | 6 lb. | 0.03" | 0.03" | — | Yığınlanabilir | 9714K36 |

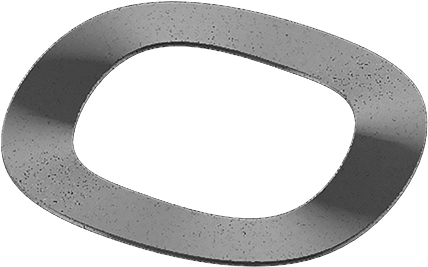

 | ₺1.965 | 0.689" | 0.937" | Dalga | 0.012" | Yüksek Karbonlu Çelik | Disk | 0.067" | 40 lb. | 0.012" | 0.055" | — | Yığınlanabilir | 9714K17 |
 | ₺2.049 | 0.691" | 1" | Dalga | 0.01" | Çelik | Disk | 0.092" | 12 lb. | 0.044" | 0.048" | — | Yığınlanabilir | 9714K651 |
 | ₺3.680 | 0.719" | 0.925" | Dalga | 0.01" | 302 Paslanmaz Çelik | Disk | 0.066" | 7.5 lb. | 0.033" | 0.033" | — | Korozyona Dayanıklı, İstiflenebilir | 9714K99 |

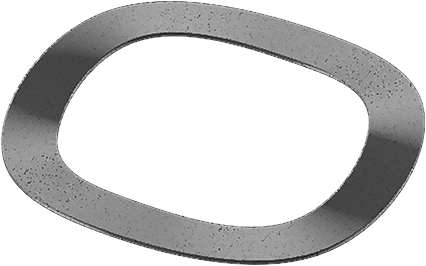

 | ₺3.335 | 0.719" | 0.925" | Dalga | 0.01" | Yüksek Karbonlu Çelik | Disk | 0.066" | 8 lb. | 0.033" | 0.033" | — | Yığınlanabilir | 9714K58 |

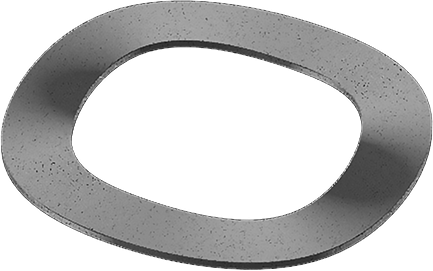

 | ₺3.504 | 0.76" | 1.016" | Dalga | 0.02" | Yüksek Karbonlu Çelik | Disk | 0.067" | 101 lb. | 0.02" | 0.047" | — | Yığınlanabilir | 9714K3 |
 | ₺3.360 | 0.78" | 1.004" | Dalga | 0.0105" | 302 Paslanmaz Çelik | Disk | 0.071" | 8.5 lb. | 0.036" | 0.035" | — | Korozyona Dayanıklı, İstiflenebilir | 9714K111 |

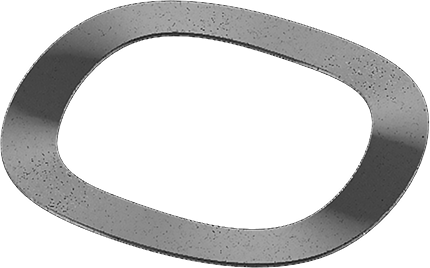

 | ₺3.279 | 0.78" | 1.004" | Dalga | 0.0105" | Yüksek Karbonlu Çelik | Disk | 0.071" | 8 lb. | 0.035" | 0.036" | — | Yığınlanabilir | 9714K59 |

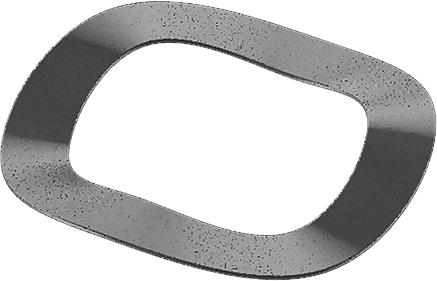

 | ₺3.573 | 0.787" | 1.094" | Dalga | 0.012" | Yüksek Karbonlu Çelik | Disk | 0.118" | 39 lb. | 0.012" | 0.106" | — | Yığınlanabilir | 9714K18 |
 | ₺1.770 | 0.812" | 0.983" | Dalga | 0.01" | Çelik | Disk | 0.08" | 7.5 lb. | 0.026" | 0.054" | — | Yığınlanabilir | 9714K678 |
 | ₺3.724 | 0.839" | 1.08" | Dalga | 0.0115" | 302 Paslanmaz Çelik | Disk | 0.073" | 10 lb. | 0.036" | 0.037" | — | Korozyona Dayanıklı, İstiflenebilir | 9714K112 |

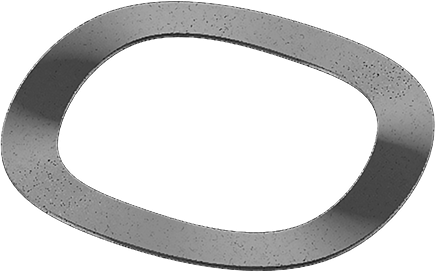

 | ₺3.662 | 0.839" | 1.08" | Dalga | 0.0115" | Yüksek Karbonlu Çelik | Disk | 0.073" | 10 lb. | 0.036" | 0.037" | — | Yığınlanabilir | 9714K61 |
 | ₺3.611 | 0.856" | 1.102" | Dalga | 0.012" | 302 Paslanmaz Çelik | Disk | 0.075" | 11 lb. | 0.037" | 0.038" | — | Korozyona Dayanıklı, İstiflenebilir | 9714K113 |
 | ₺3.600 | 0.856" | 1.102" | Dalga | 0.012" | Yüksek Karbonlu Çelik | Disk | 0.075" | 11 lb. | 0.037" | 0.038" | — | Yığınlanabilir | 9714K62 |
