Çubuk Hizalama Bağlantı Elemanları
94 ürün
Increase cylinder life by fixing alignment problems between air or hydraulic cylinders and driven components. Couplers have a threaded end that moves to compensate for the angle of misalignment, reducing wear on cylinder bearings and seals. Couplers have a male and female end.
| Görsel | Fiyat | Diş Boyutu | Gövde Malzemesi | Yanlış Hizalama Açısı | Dış Çap | Toplam Uzunluk | Maksimum Çekme Kuvveti | Parça No |
|---|---|---|---|---|---|---|---|---|
| Çubuk Hizalama Bağlantı Elemanları | ||||||||

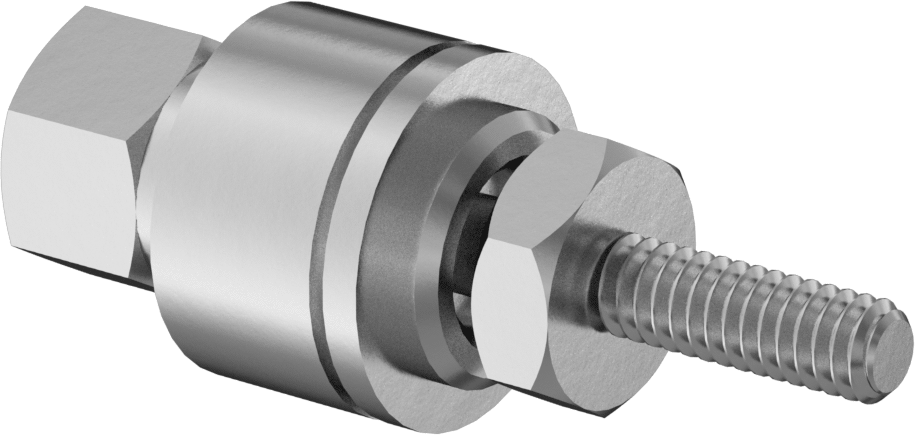

 | ₺1.974 | 5-40 | Pirinç | 5° | 0.47" | 1.2" | 110 lbf | 7334K1 |

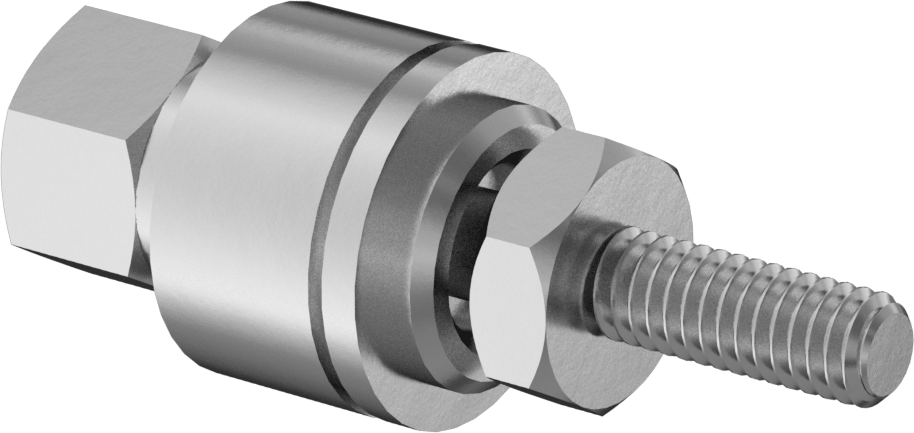

 | ₺2.468 | 6-40 | Pirinç | 5° | 0.47" | 1.2" | 140 lbf | 7334K2 |

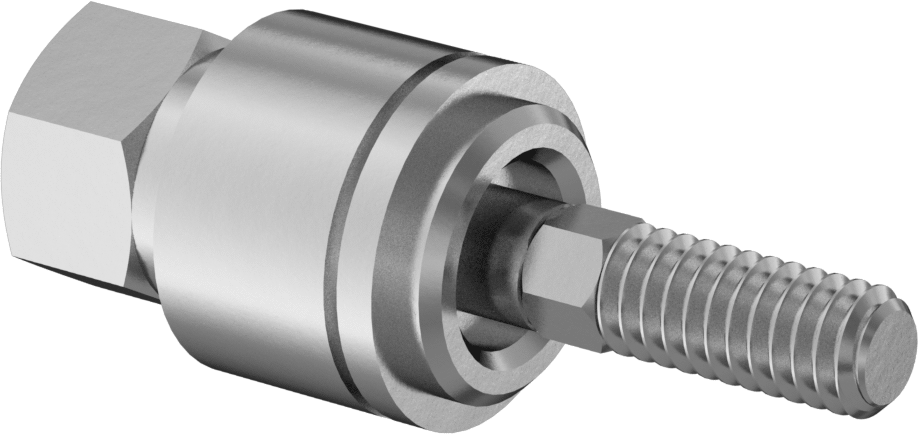

 | ₺2.625 | 8-32 | Pirinç | 5° | 0.47" | 1.23" | 175 lbf | 7334K9 |

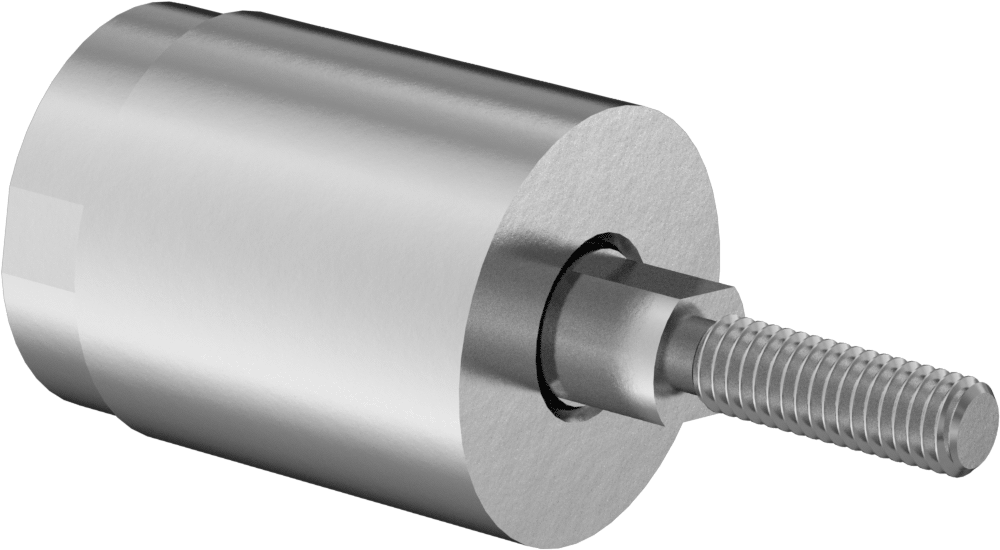

 | ₺13.931 | 10-32 | 303 Stainless Steel, Stainless Steel | 2° | 78" | 2" | 500 lbf | 6732K11 |

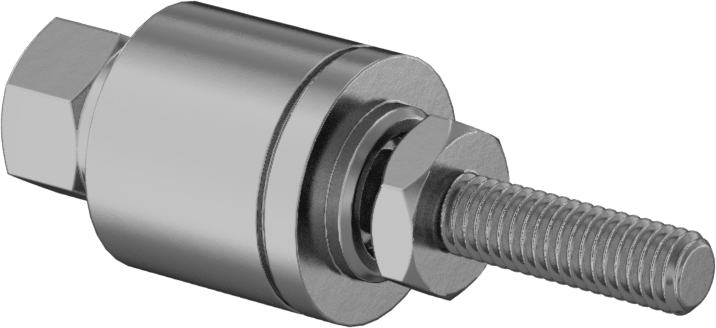

 | ₺2.940 | 10-32 | Pirinç | 5° | 0.63" | 1.79" | 250 lbf | 7334K3 |

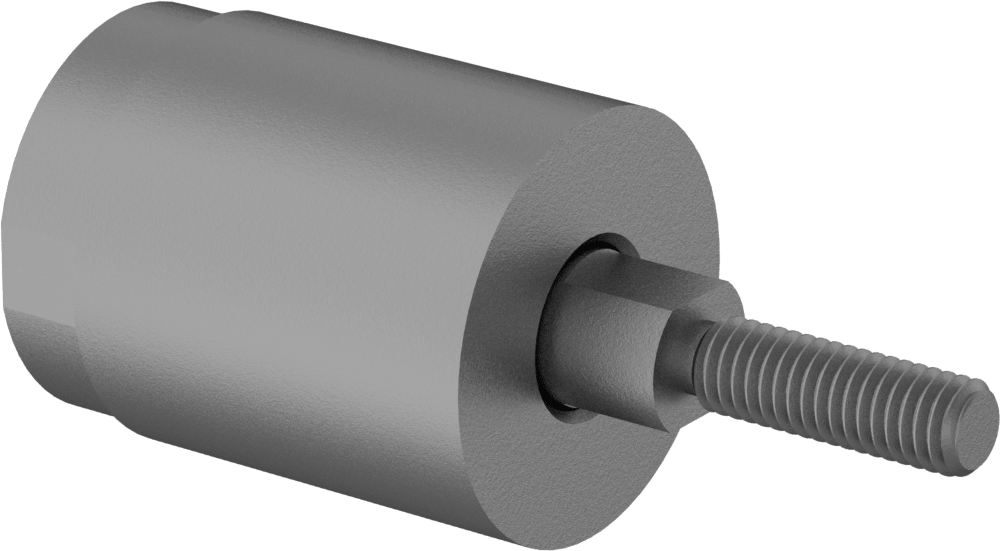

 | ₺8.984 | 10-32 | Çelik | 2° | 78" | 2" | 1,000 lbf | 6184K52 |

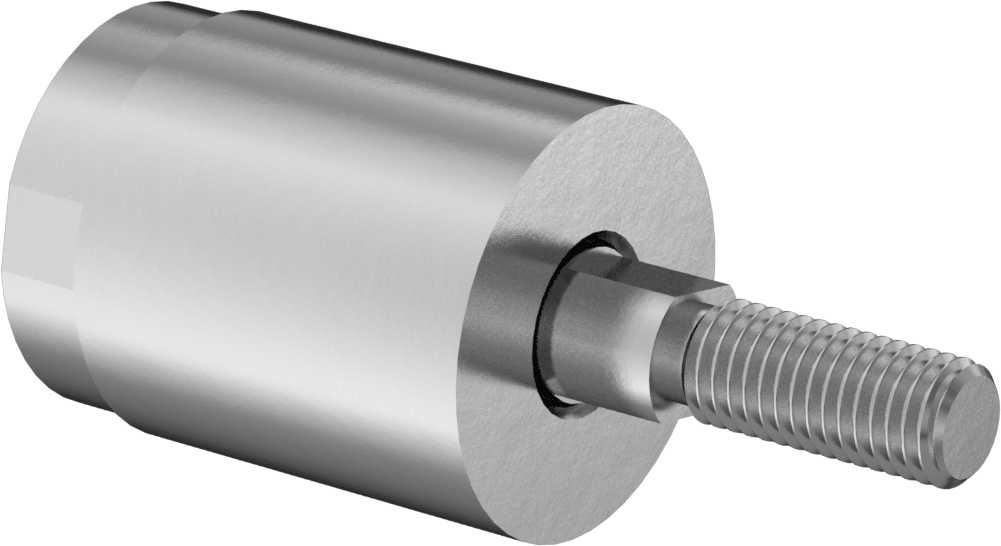

 | ₺13.931 | 14"-28 | 303 Stainless Steel, Stainless Steel | 2° | 78" | 2" | 1,100 lbf | 6732K12 |

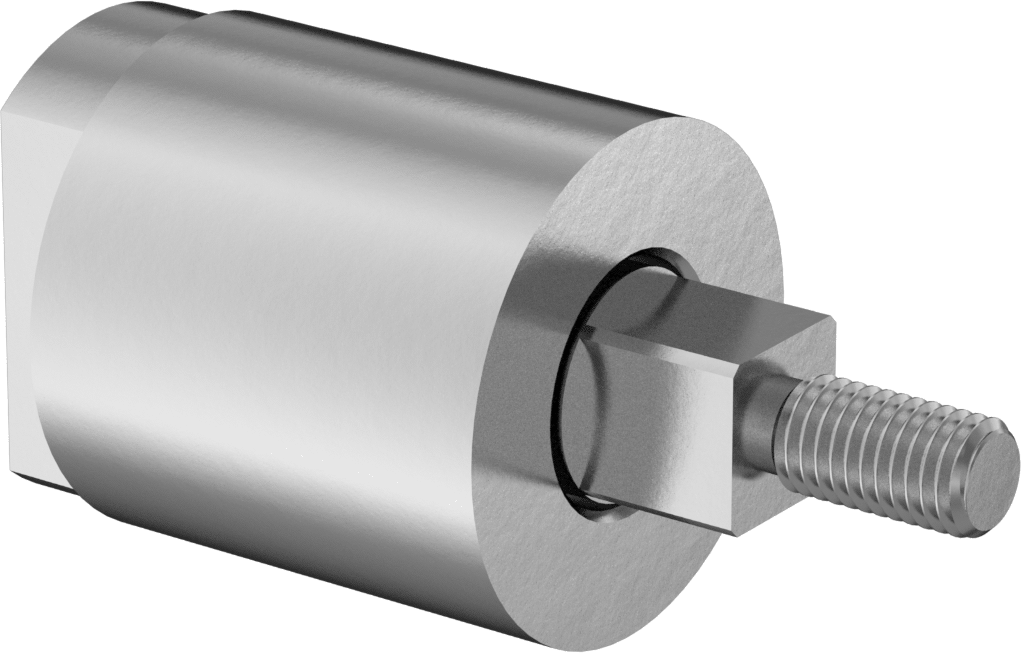

 | ₺19.011 | 14"-28 | 316 Stainless Steel, Stainless Steel | 1° | 1 18" | 2 14" | 200 lbf | 1101K31 |

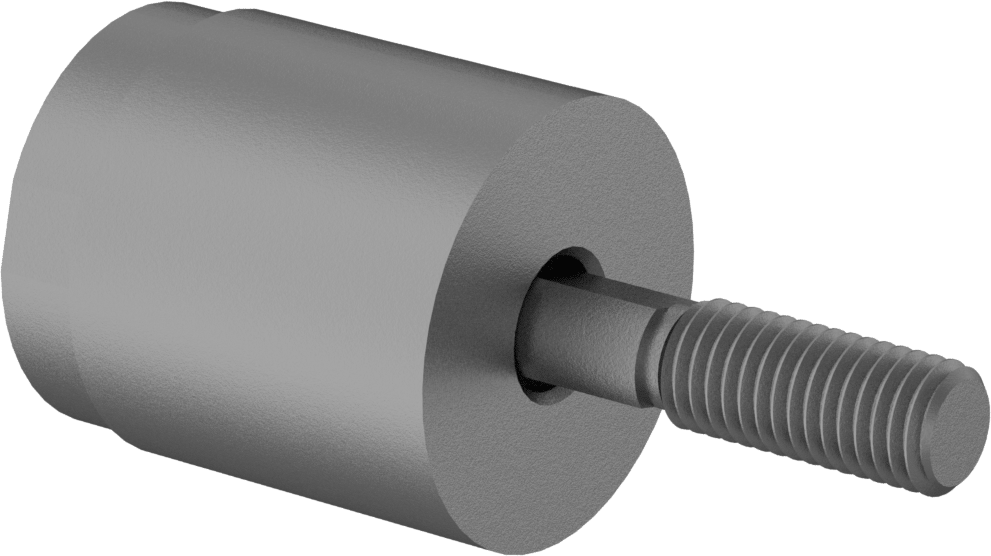

 | ₺7.629 | 14"-28 | Çelik | 1° | 78" | 1 78" | 4,000 lbf | 6460T1 |

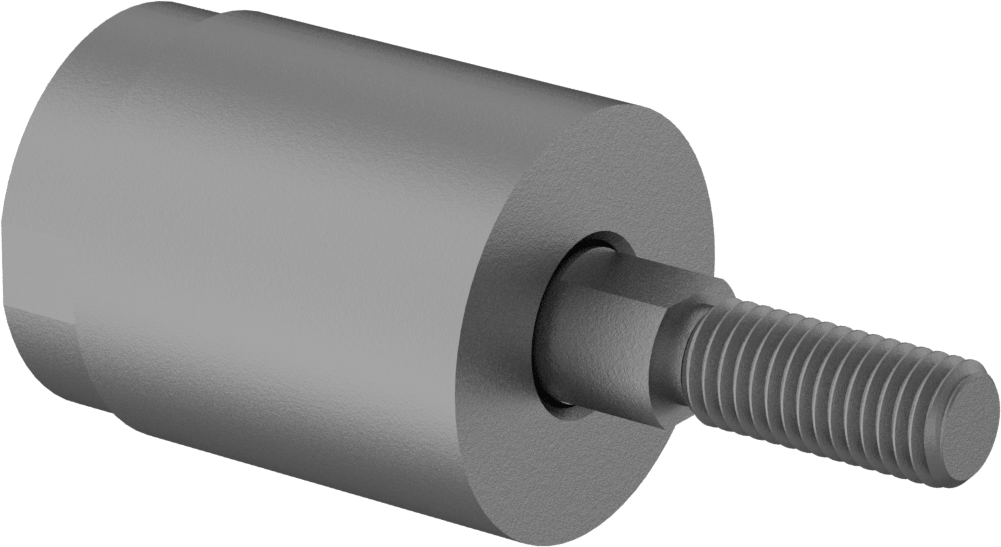

 | ₺8.984 | 14"-28 | Çelik | 2° | 78" | 2" | 1,700 lbf | 6184K53 |

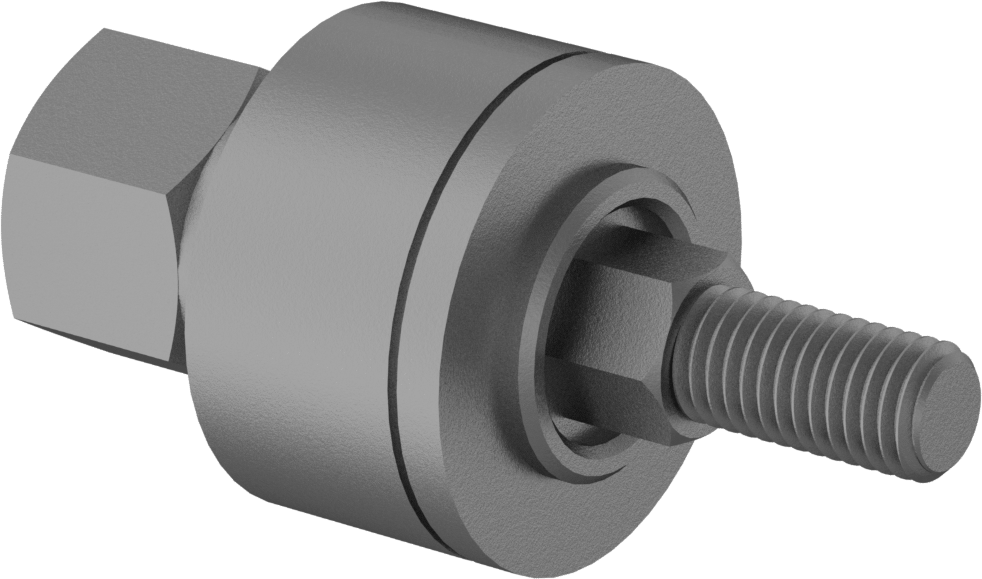

 | ₺4.158 | 14"-28 | Çelik | 5° | 0.94" | 1.88" | 760 lbf | 7334K4 |

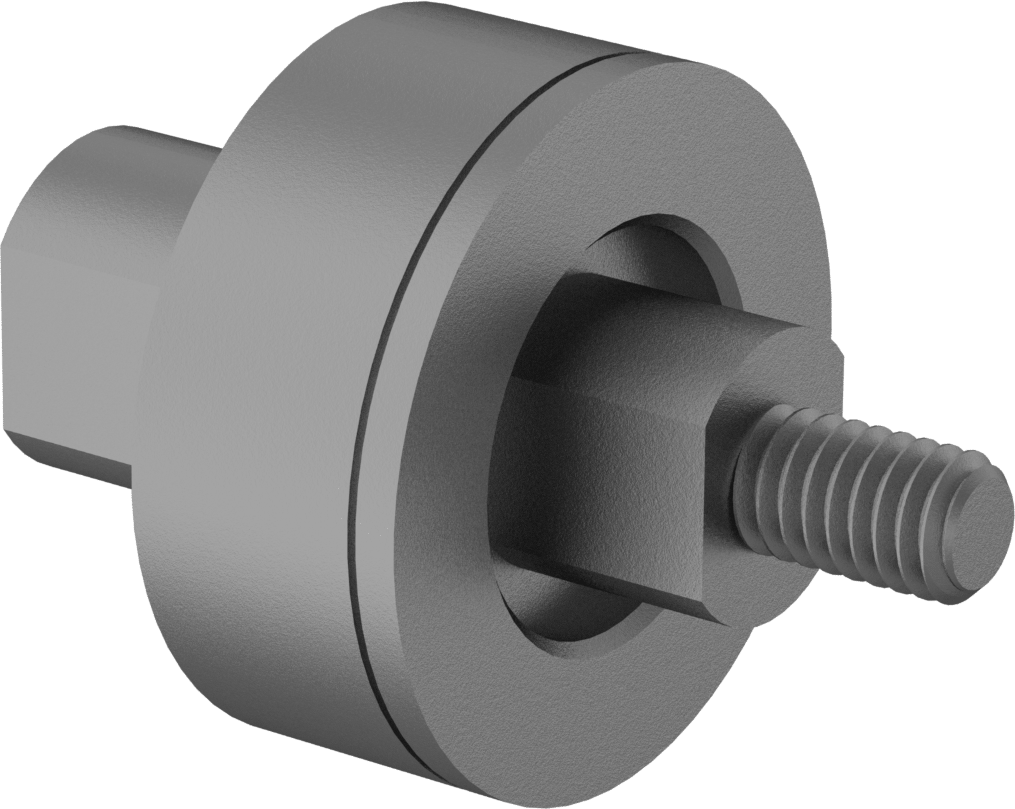

 | ₺25.134 | 516"-18 | Çelik | 5° | 1.56" | 2 14" | - | 6418T12 |

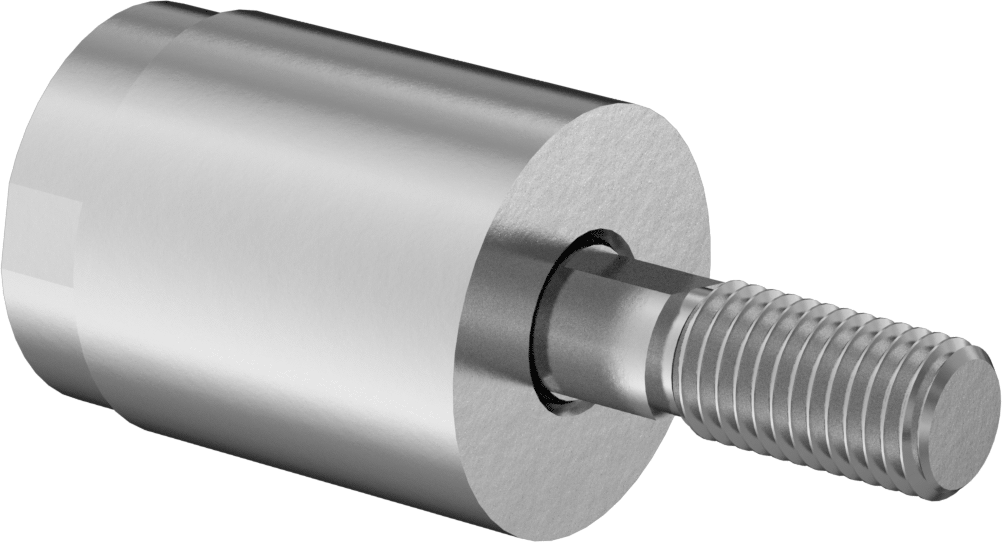

 | ₺13.931 | 516"-24 | 303 Stainless Steel, Stainless Steel | 2° | 78" | 2" | 2,800 lbf | 6732K13 |

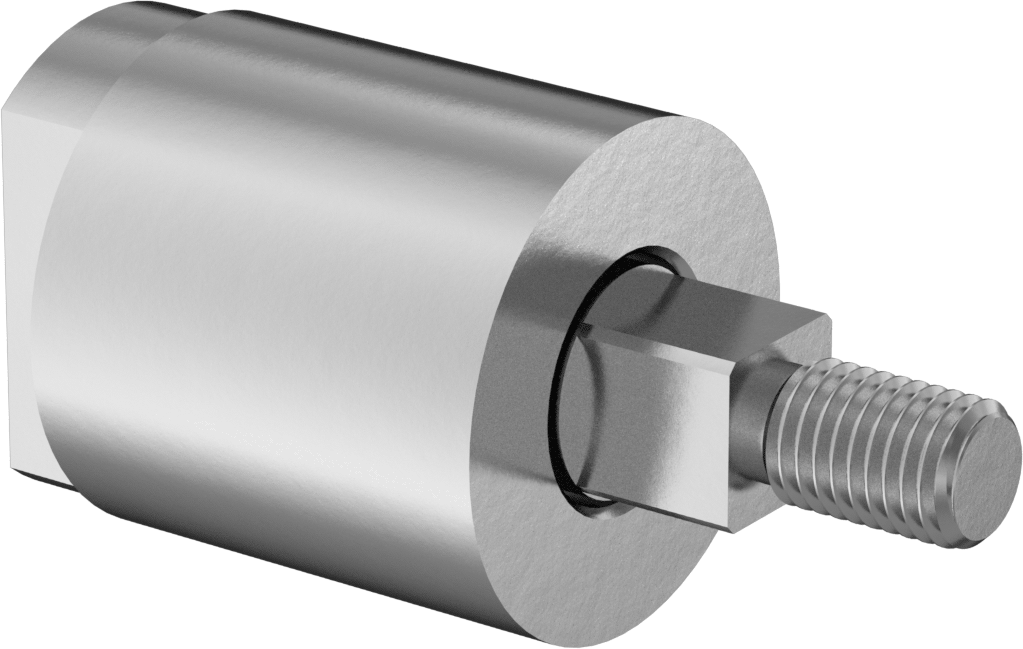

 | ₺20.621 | 516"-24 | 316 Stainless Steel, Stainless Steel | 1° | 1 18" | 2 14" | 400 lbf | 1101K32 |

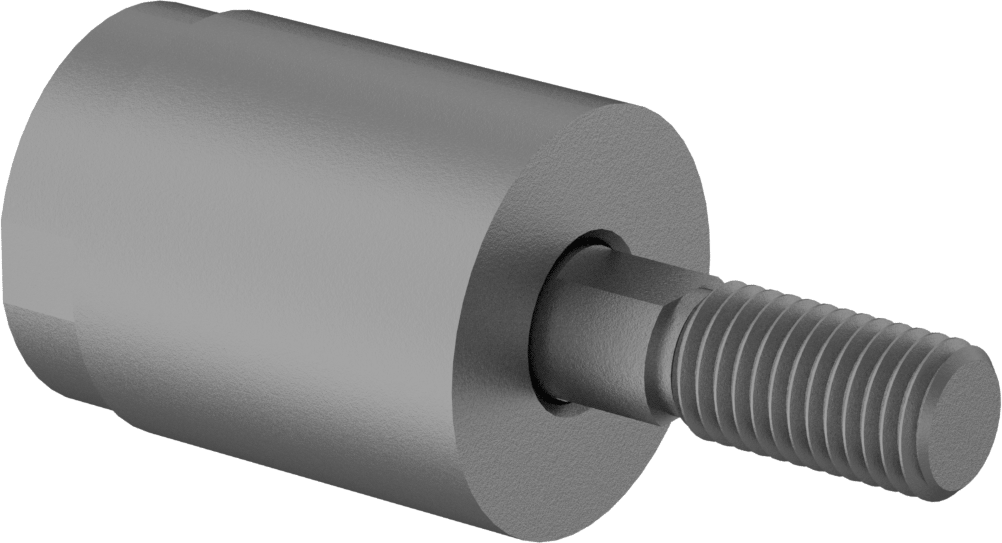

 | ₺8.984 | 516"-24 | Çelik | 2° | 78" | 2" | 8,300 lbf | 6184K41 |

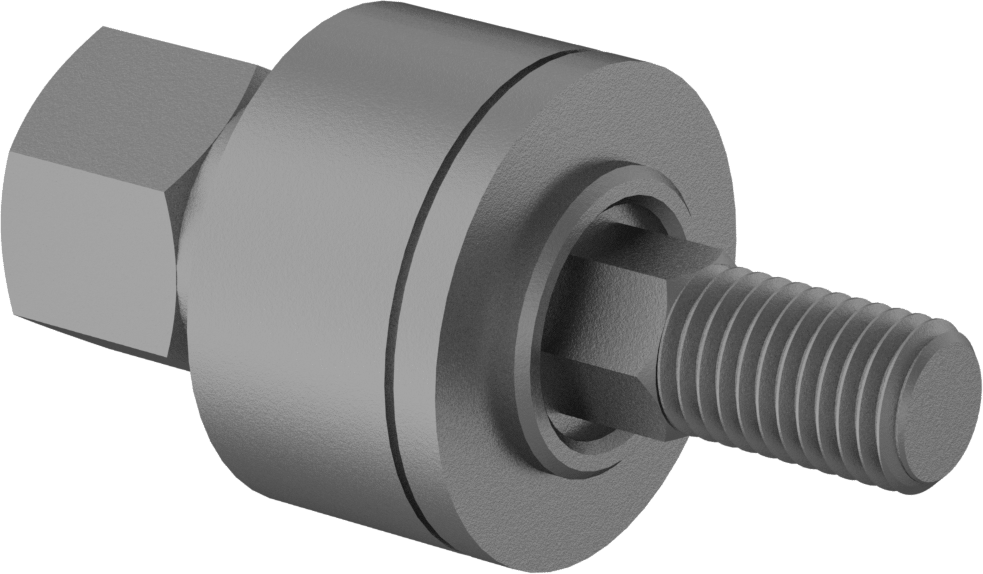

 | ₺6.090 | 516"-24 | Çelik | 5° | 0.94" | 1.88" | 1,200 lbf | 7334K5 |

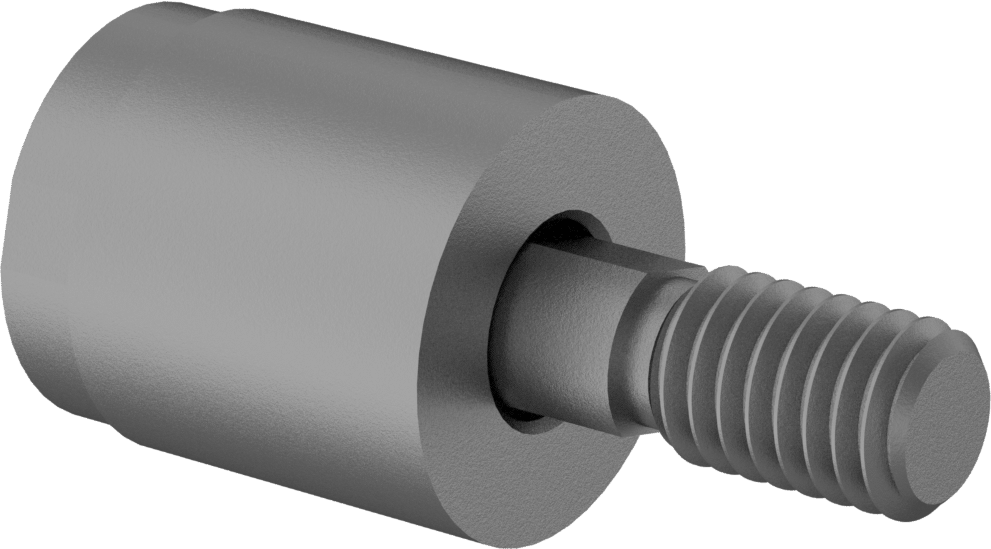

 | ₺7.629 | 38"-16 | Çelik | 1° | 78" | 1 78" | 5,000 lbf | 6460T2 |

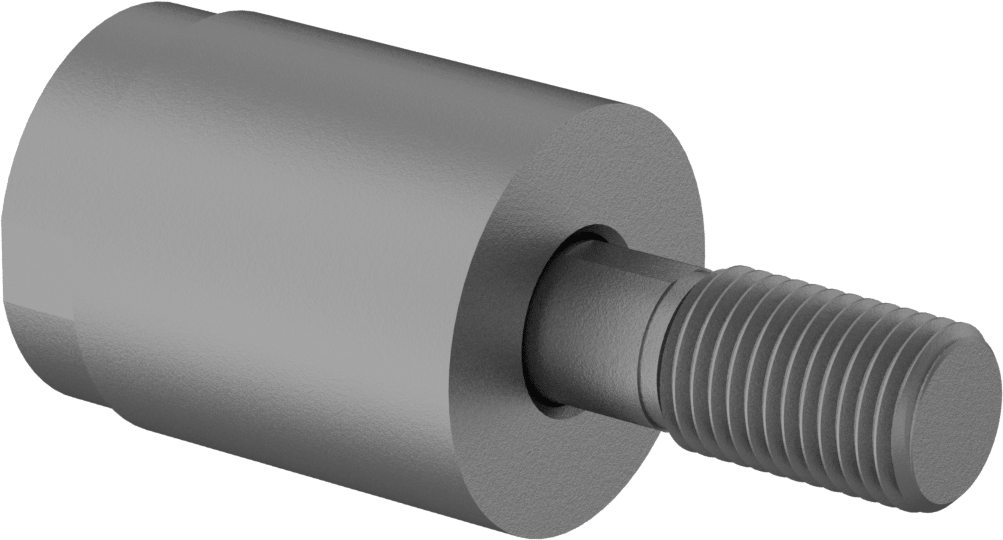

 | ₺8.984 | 38"-16 | Çelik | 2° | 78" | 2" | 8,300 lbf | 6184K54 |

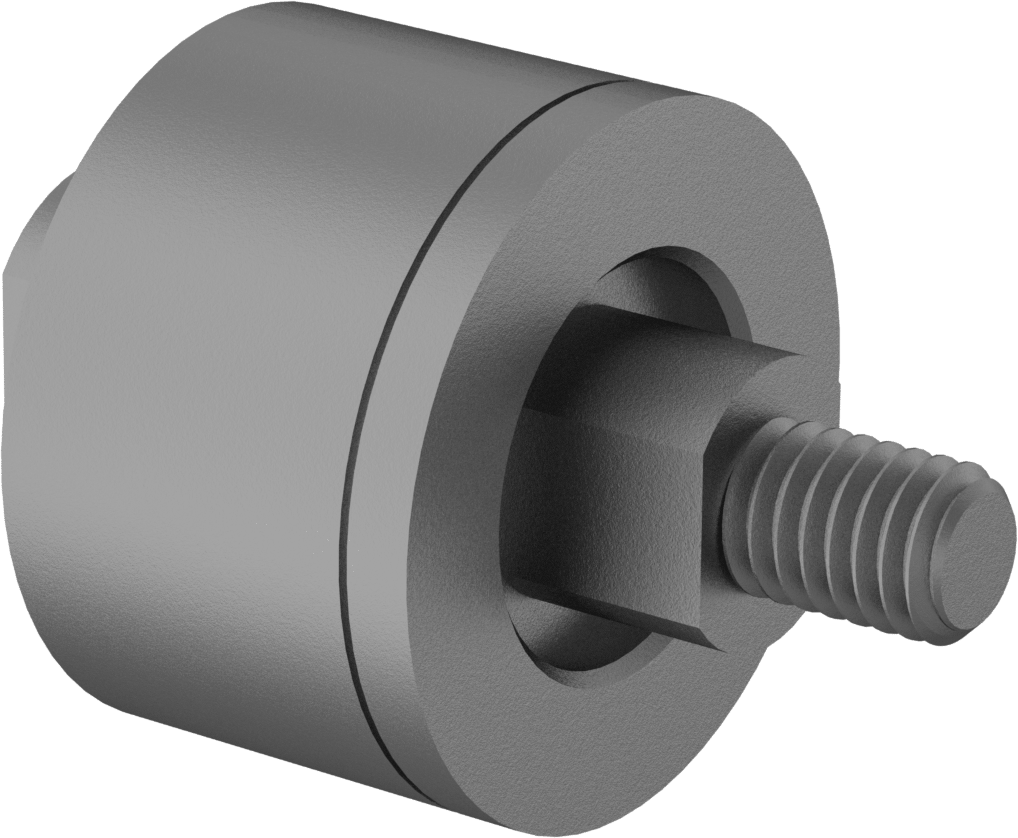

 | ₺22.578 | 38"-16 | Çelik | 5° | 1.56" | 2 14" | - | 6418T13 |

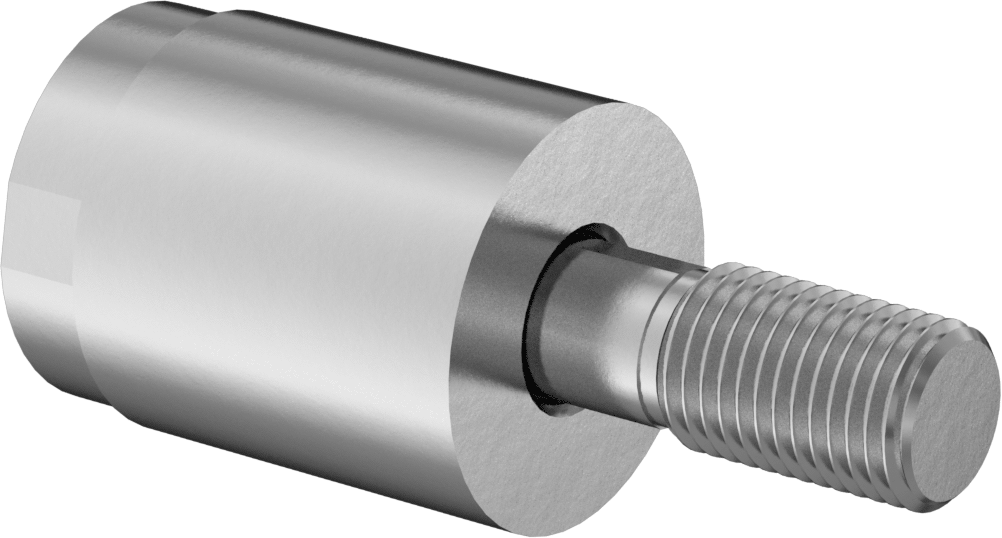

 | ₺13.931 | 38"-24 | 303 Stainless Steel, Stainless Steel | 2° | 78" | 2" | 2,800 lbf | 6732K17 |

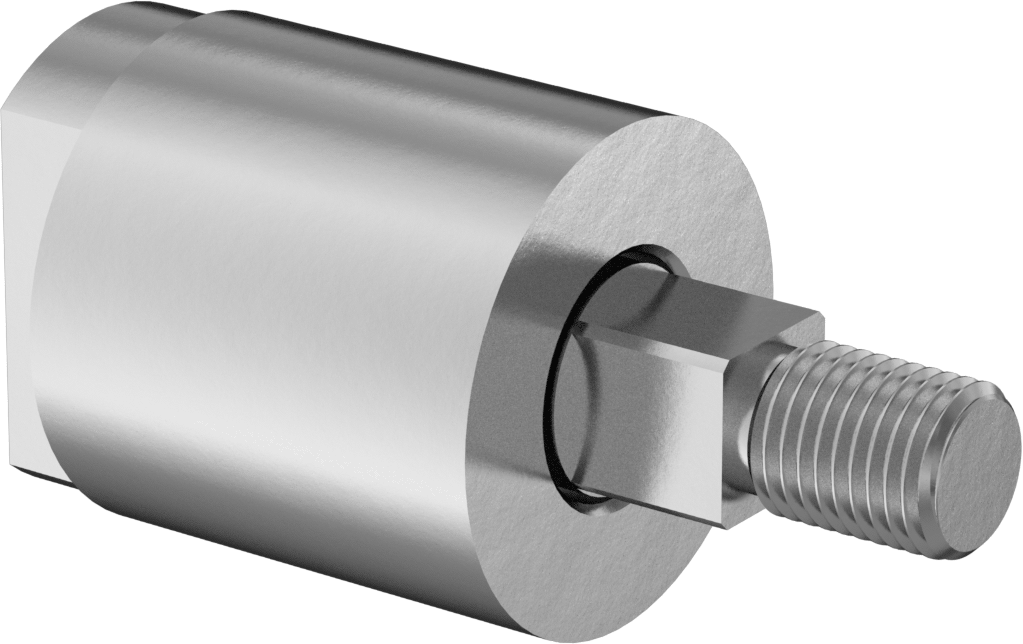

 | ₺22.137 | 38"-24 | 316 Stainless Steel, Stainless Steel | 1° | 1 18" | 2 14" | 600 lbf | 1101K33 |
 | ₺8.984 | 38"-24 | Çelik | 2° | 78" | 2" | 8,300 lbf | 6184K42 |
 | ₺6.837 | 38"-24 | Çelik | 5° | 1.56" | 2 14" | 2,425 lbf | 6418T1 |

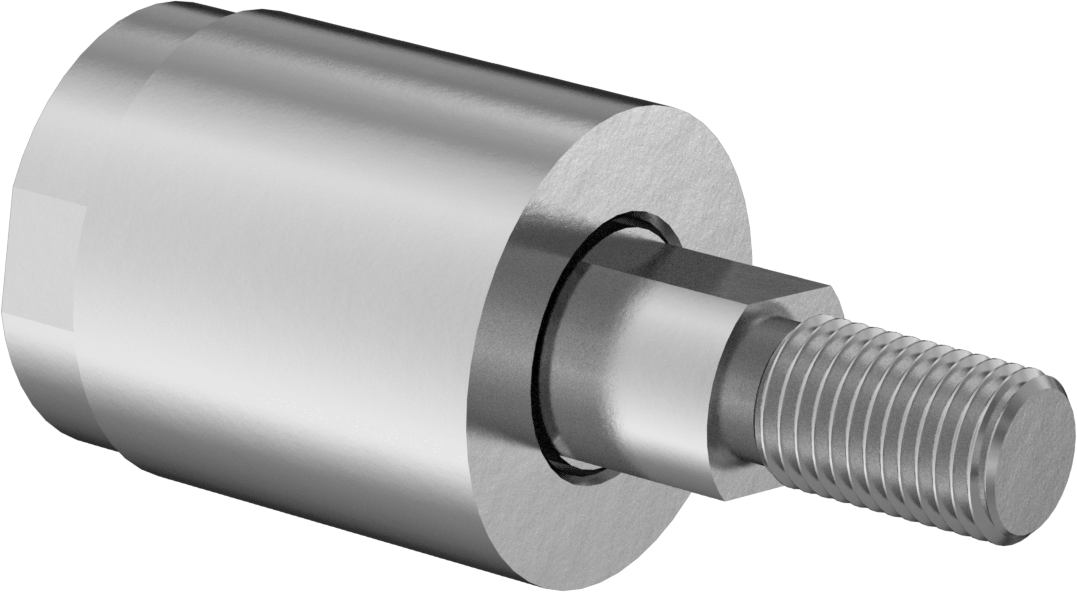

 | ₺16.781 | 716"-20 | 303 Stainless Steel, Stainless Steel | 2° | 1 14" | 2 34" | 3,400 lbf | 6732K14 |

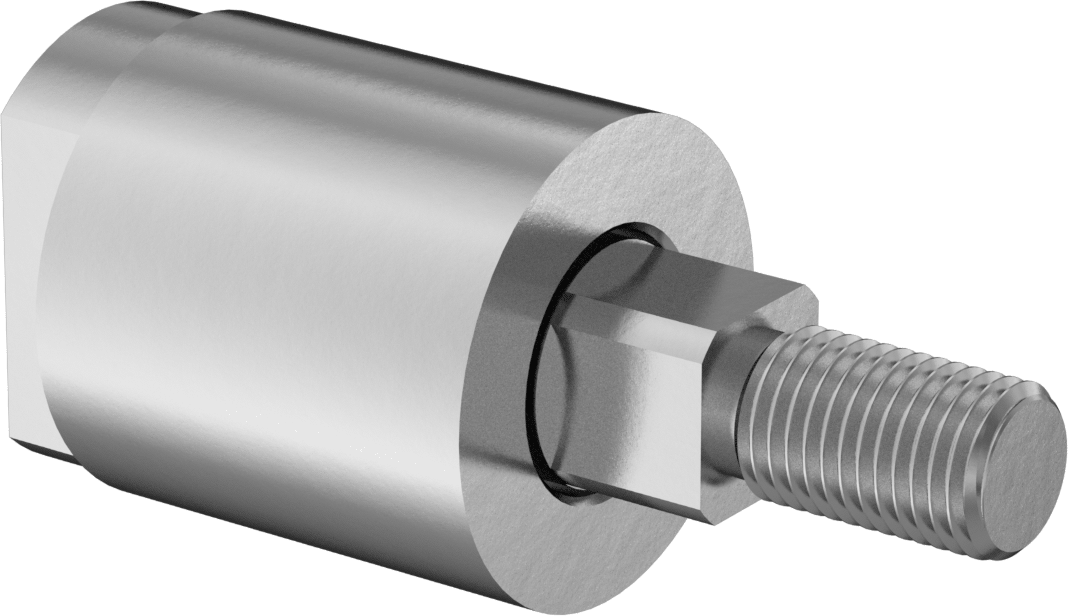

 | ₺26.969 | 716"-20 | 316 Stainless Steel, Stainless Steel | 1° | 1 14" | 2 34" | 850 lbf | 1101K34 |

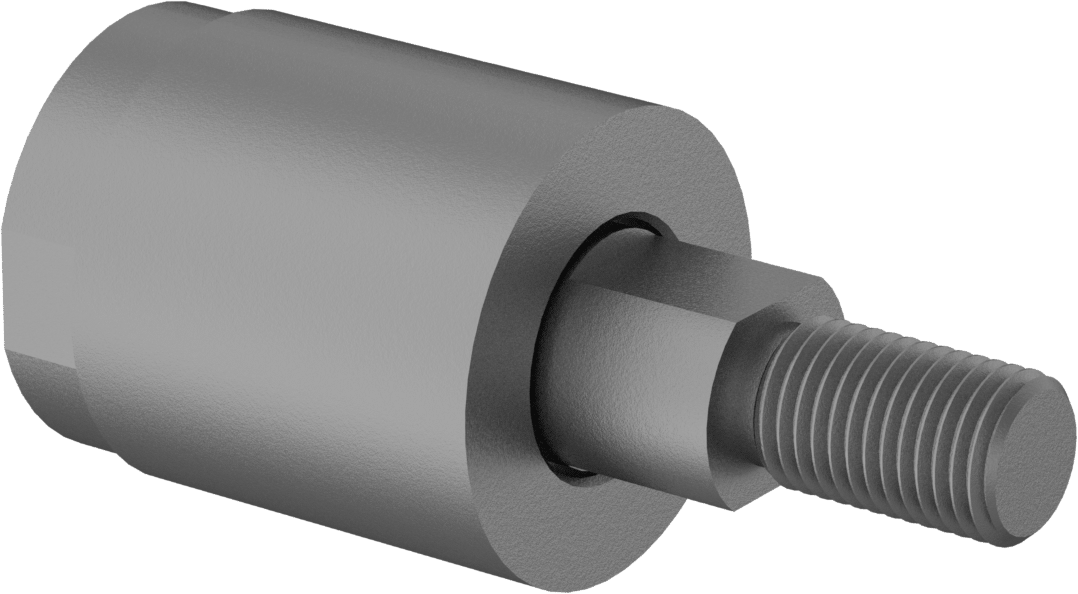

 | ₺11.262 | 716"-20 | Çelik | 2° | 1 14" | 2 34" | 10,000 lbf | 6184K43 |

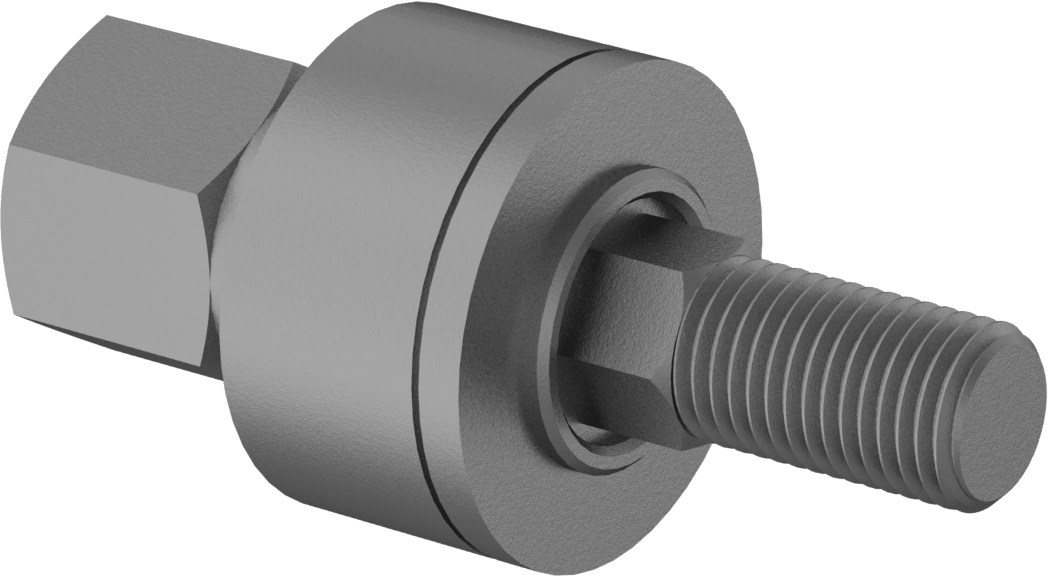

 | ₺7.319 | 716"-20 | Çelik | 5° | 1.22" | 2.58" | 2,600 lbf | 7334K6 |

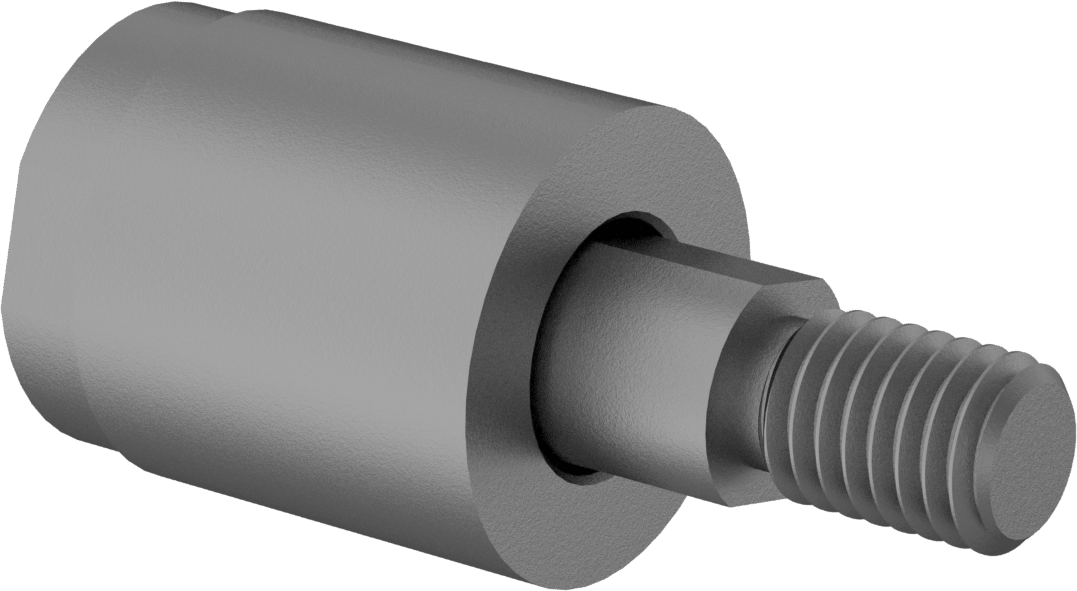

 | ₺9.107 | 12"-13 | Çelik | 1° | 1 14" | 2 34" | 14,000 lbf | 6460T3 |

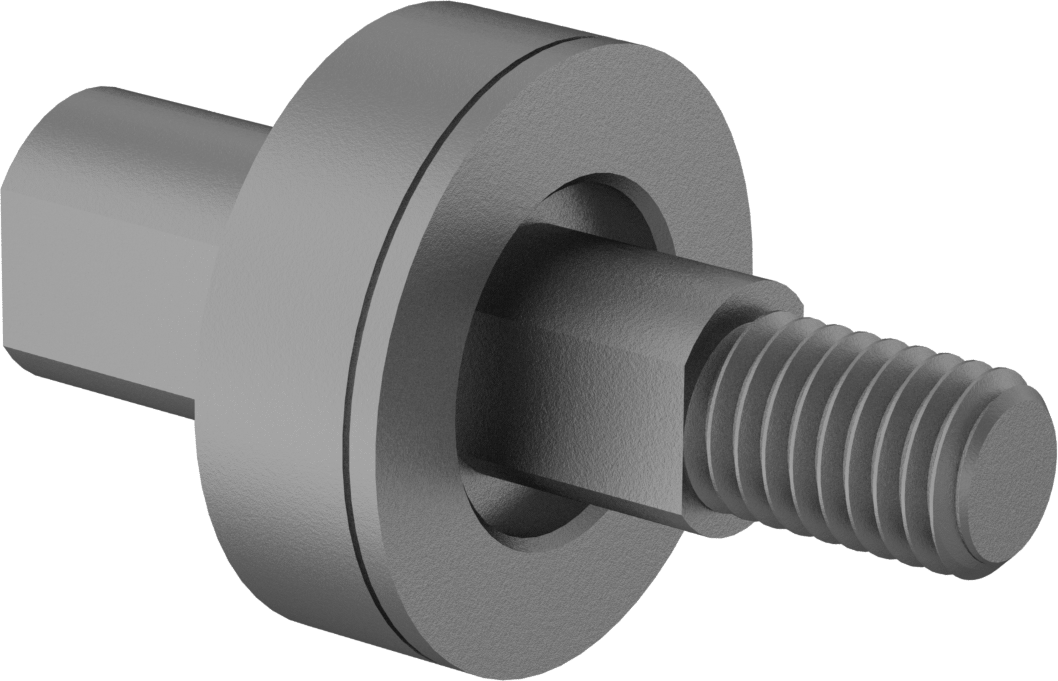

 | ₺31.005 | 12"-13 | Çelik | 5° | 1.56" | 2 34" | - | 6418T14 |

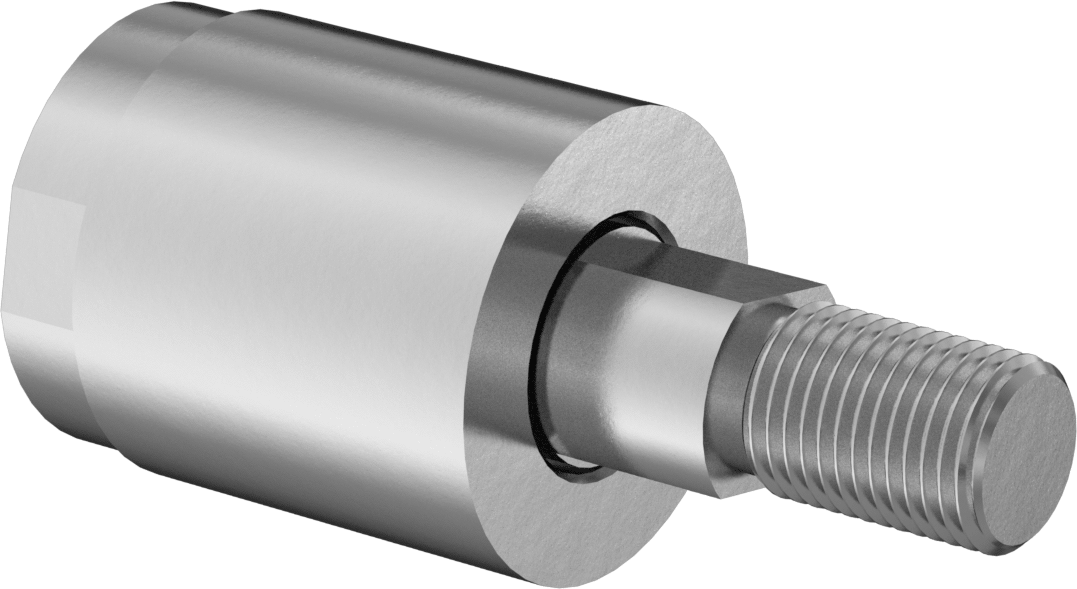

 | ₺16.781 | 12"-20 | 303 Stainless Steel, Stainless Steel | 2° | 1 14" | 2 34" | 4,700 lbf | 6732K15 |

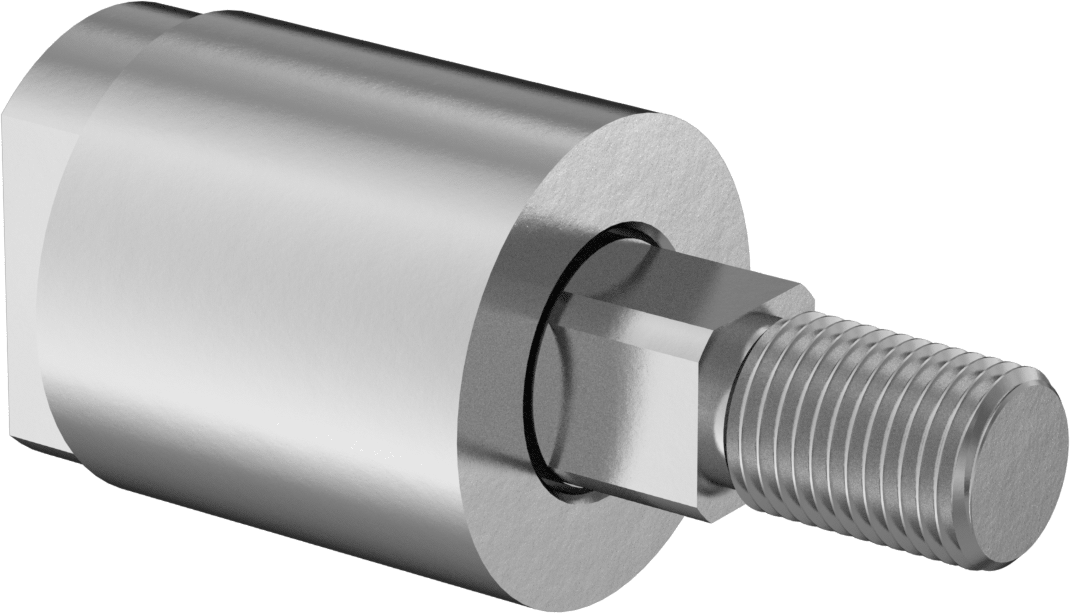

 | ₺29.523 | 12"-20 | 316 Stainless Steel, Stainless Steel | 1° | 1 14" | 2 34" | 1,200 lbf | 1101K35 |

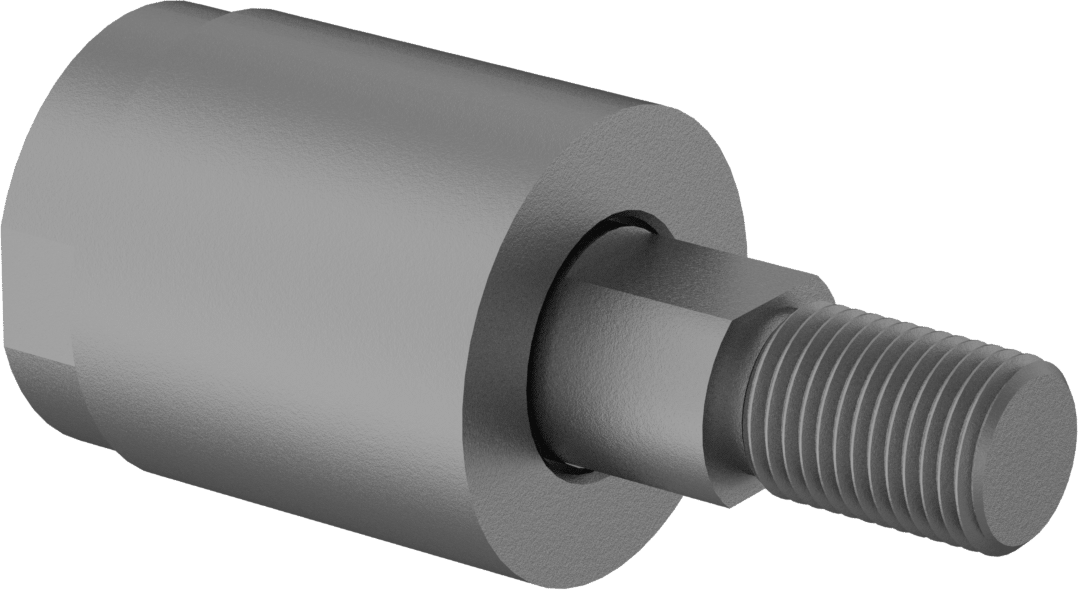

 | ₺11.262 | 12"-20 | Çelik | 2° | 1 14" | 2 34" | 14,000 lbf | 6184K44 |

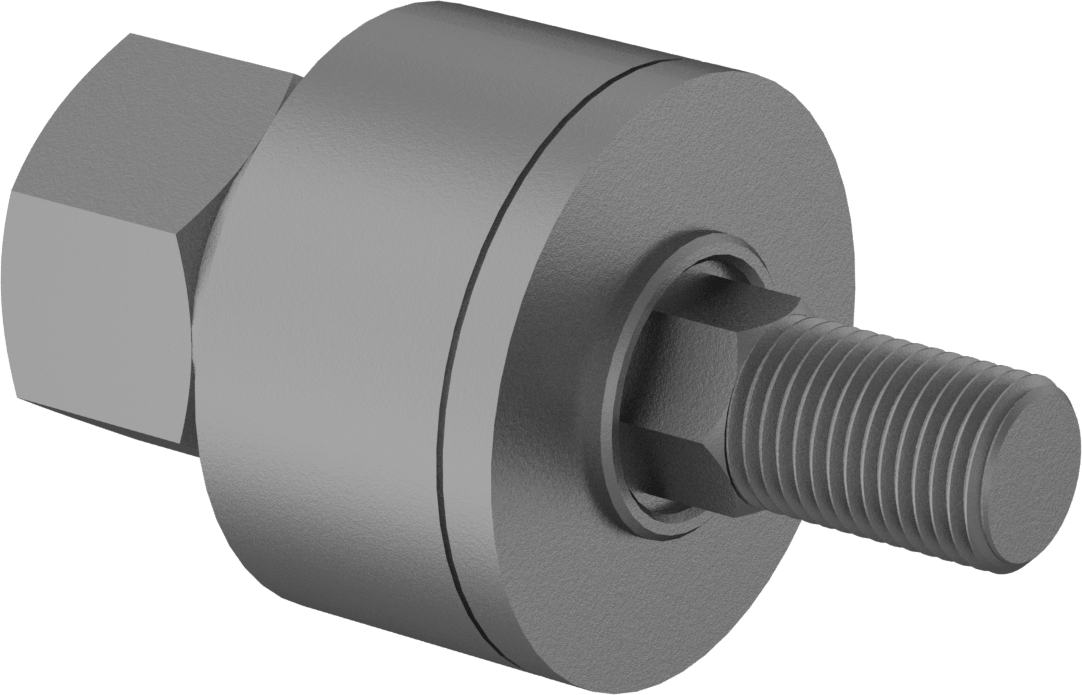

 | ₺7.319 | 12"-20 | Çelik | 5° | 1.61" | 2.86" | 3,500 lbf | 7334K7 |

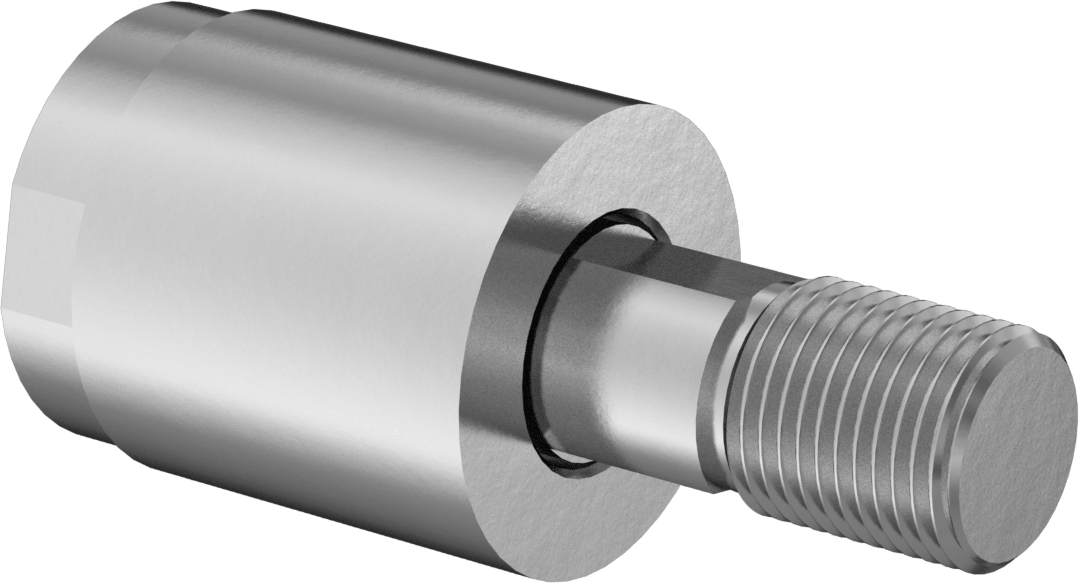

 | ₺16.781 | 58"-18 | 303 Stainless Steel, Stainless Steel | 2° | 1 14" | 2 34" | 5,200 lbf | 6732K18 |

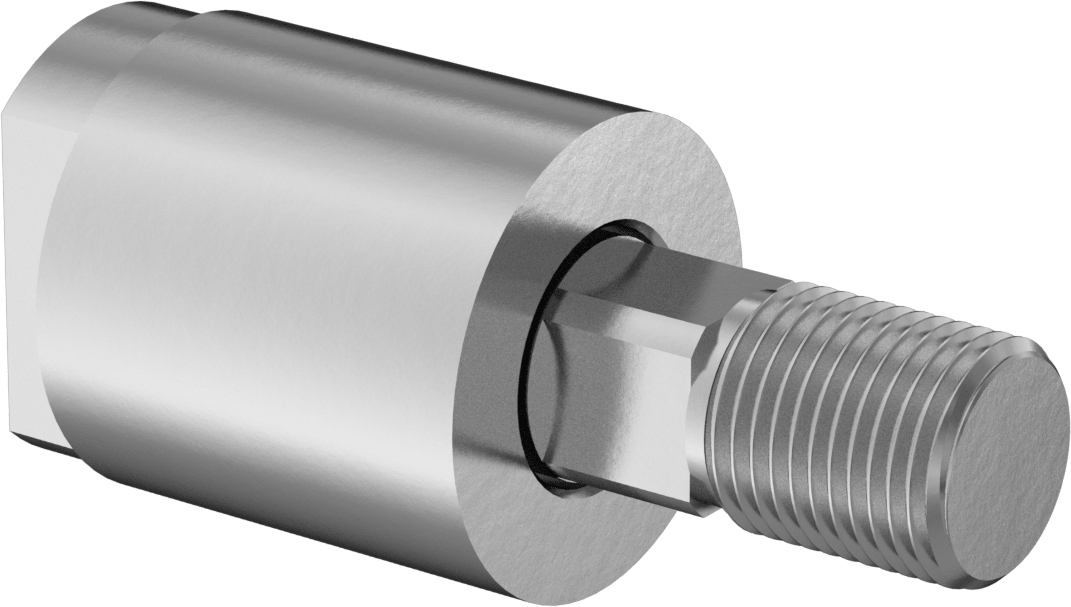

 | ₺28.748 | 58"-18 | 316 Stainless Steel, Stainless Steel | 1° | 1 14" | 2 34" | 1,950 lbf | 1101K36 |

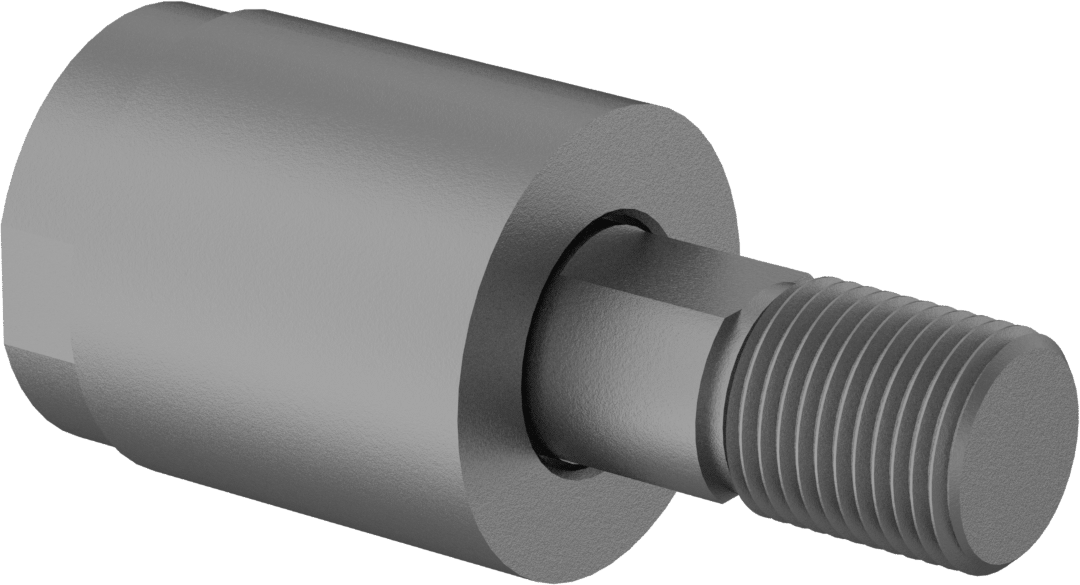

 | ₺11.262 | 58"-18 | Çelik | 2° | 1 14" | 2 34" | 19,000 lbf | 6184K45 |

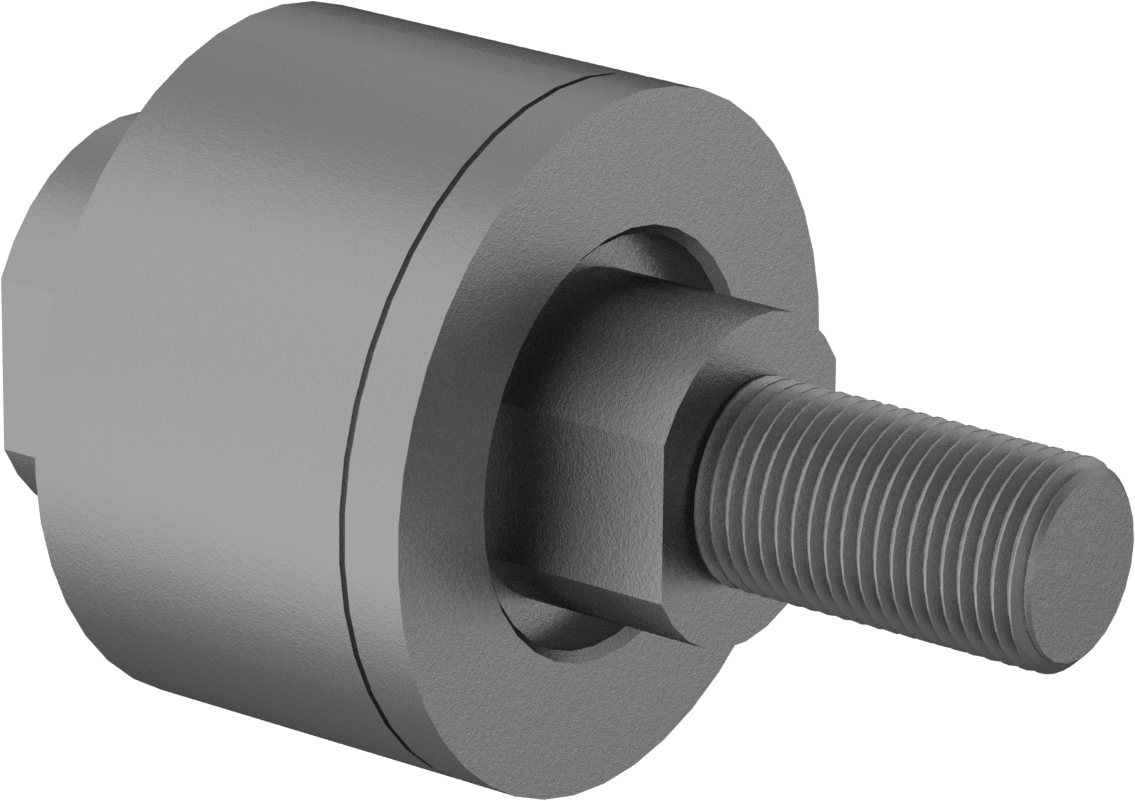

 | ₺11.448 | 58"-18 | Çelik | 5° | 2 18" | 3.437" | 7,150 lbf | 6418T2 |
 | ₺26.825 | 34"-10 | 303 Stainless Steel, Stainless Steel | 2° | 1 34" | 3 12" | 11,500 lbf | 6732K19 |

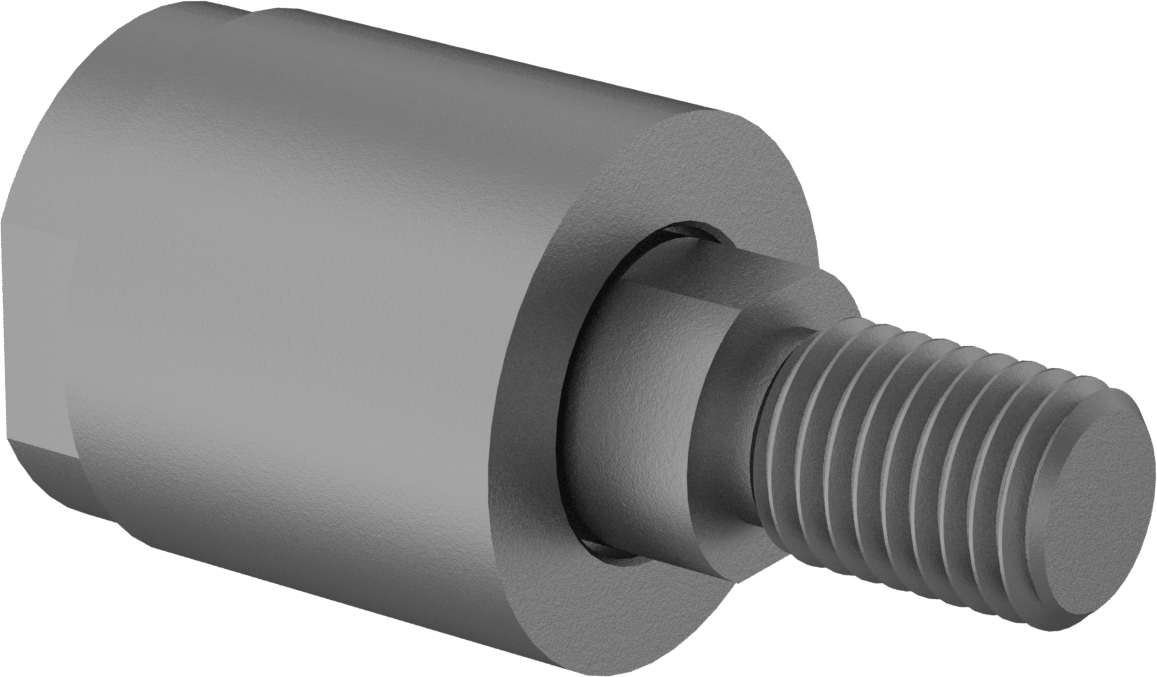

 | ₺16.509 | 34"-10 | Çelik | 2° | 1 34" | 3 12" | 34,000 lbf | 6184K51 |

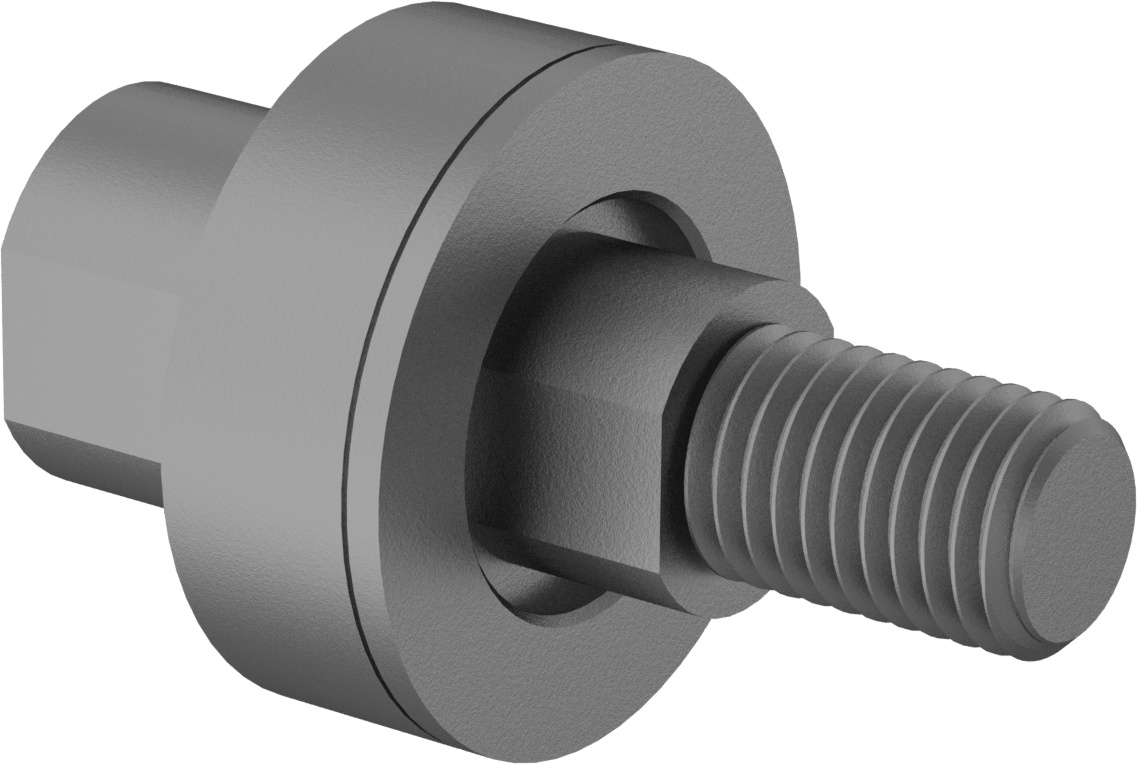

 | ₺46.374 | 34"-10 | Çelik | 5° | 2 18" | 3 716" | - | 6418T15 |

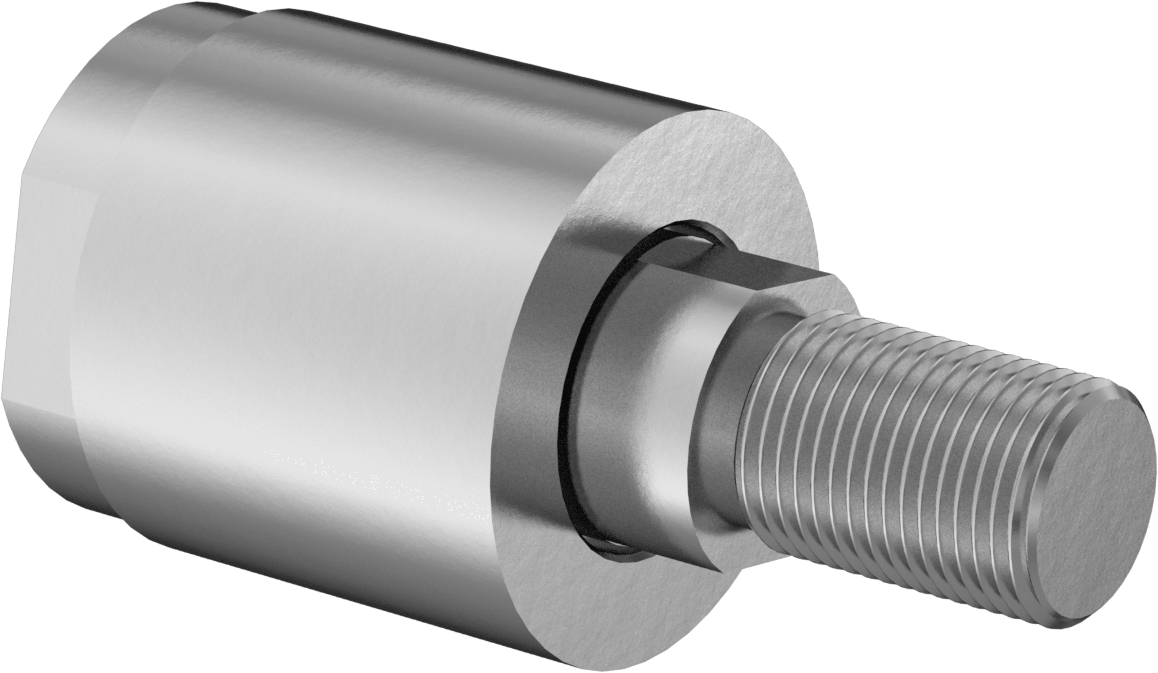

 | ₺26.825 | 34"-16 | 303 Stainless Steel, Stainless Steel | 2° | 1 34" | 3 12" | 11,500 lbf | 6732K16 |

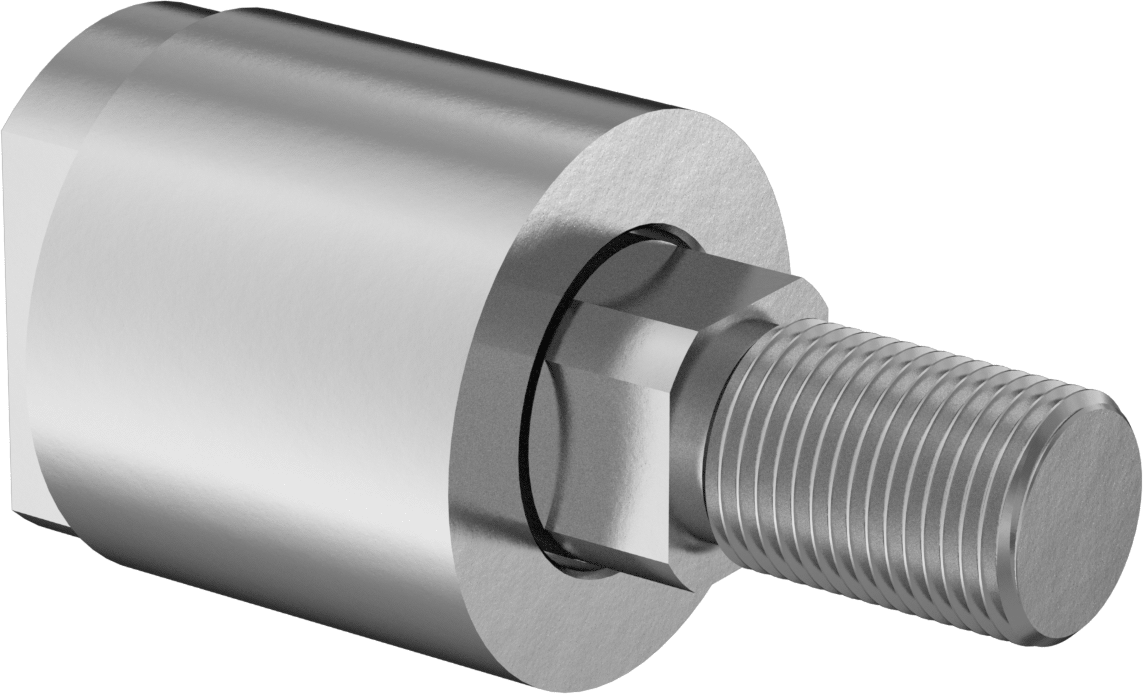

 | ₺36.122 | 34"-16 | 316 Stainless Steel, Stainless Steel | 1° | 1 34" | 3 716" | 2,850 lbf | 1101K37 |

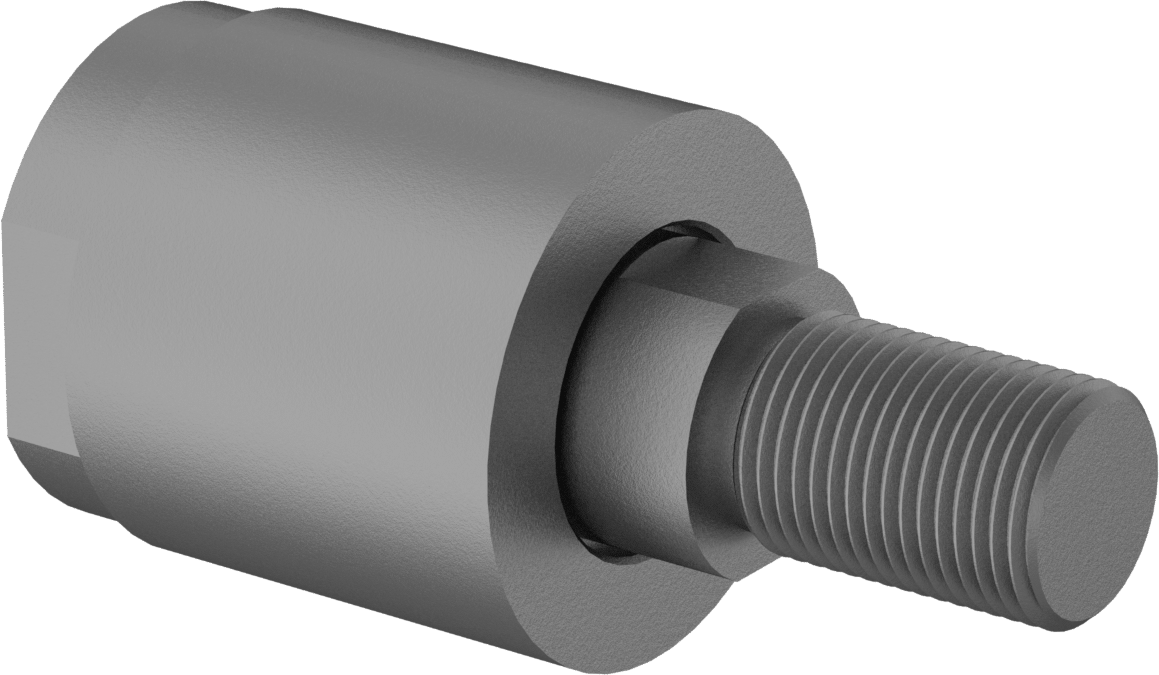

 | ₺16.509 | 34"-16 | Çelik | 2° | 1 34" | 3 12" | 34,000 lbf | 6184K46 |

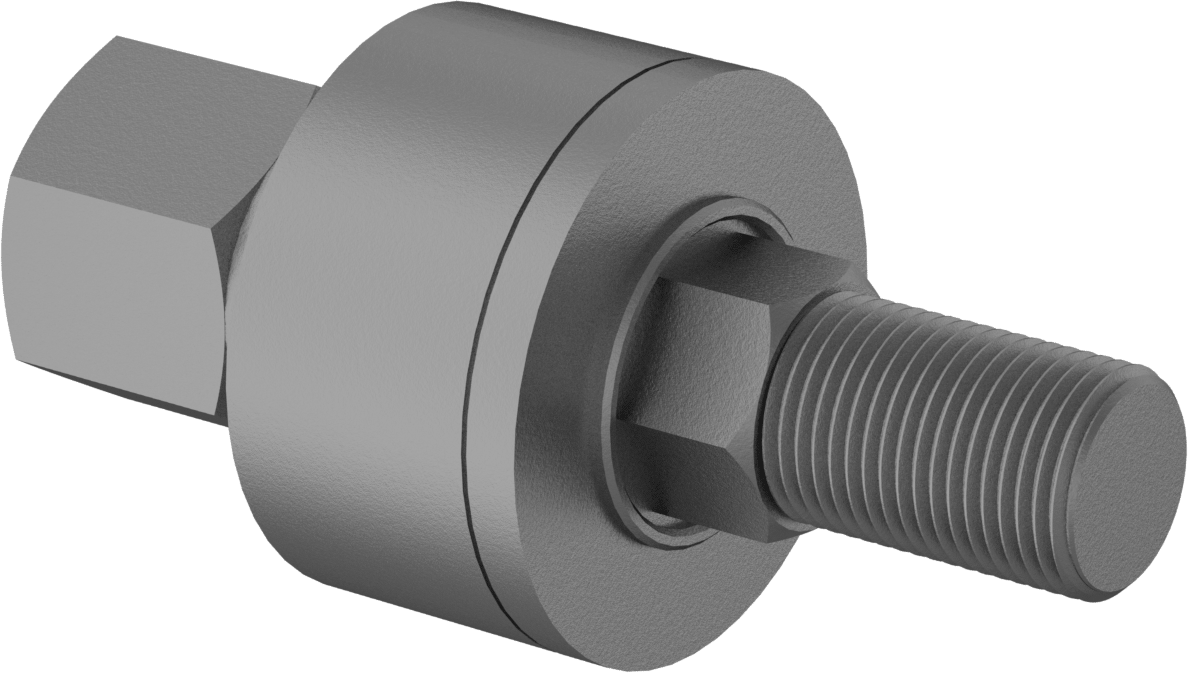

 | ₺9.755 | 34"-16 | Çelik | 5° | 1.97" | 4.04" | 8,500 lbf | 7334K8 |

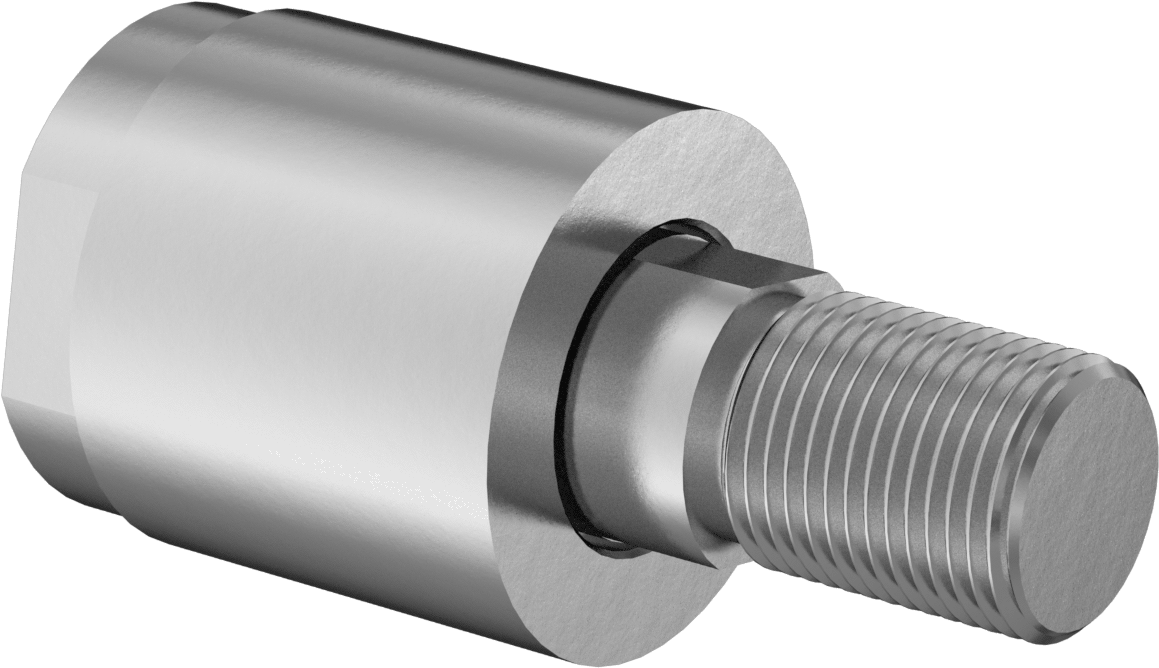

 | ₺26.825 | 78"-14 | 303 Stainless Steel, Stainless Steel | 2° | 1 34" | 3 12" | 11,700 lbf | 6732K21 |

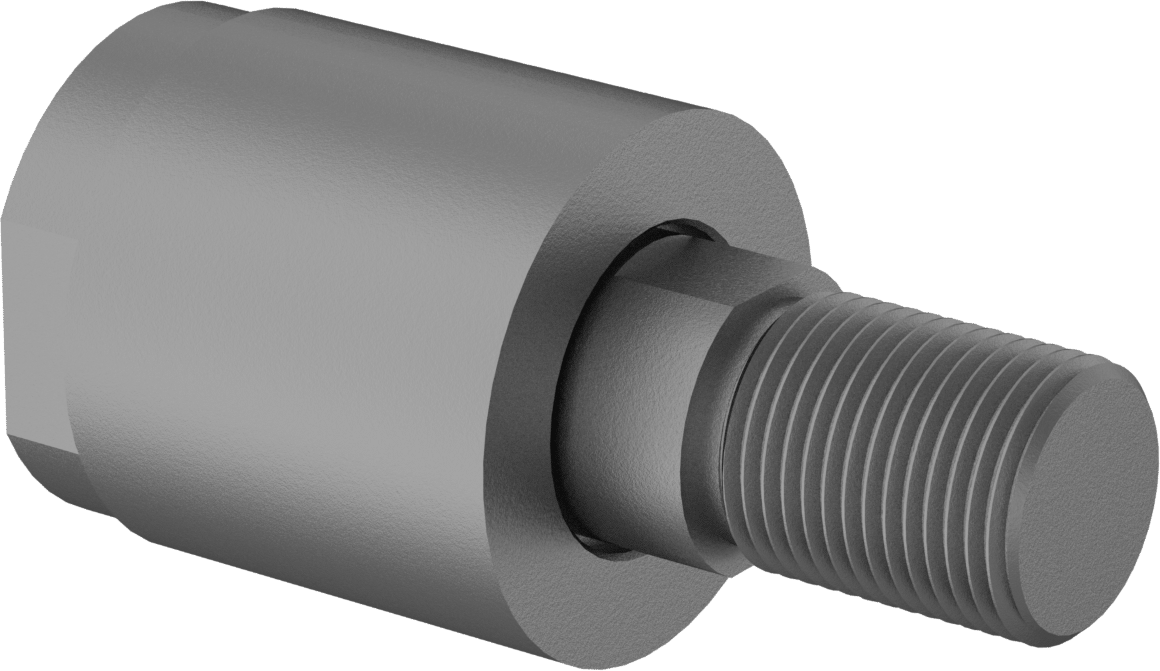

 | ₺16.509 | 78"-14 | Çelik | 2° | 1 34" | 3 12" | 39,000 lbf | 6184K47 |

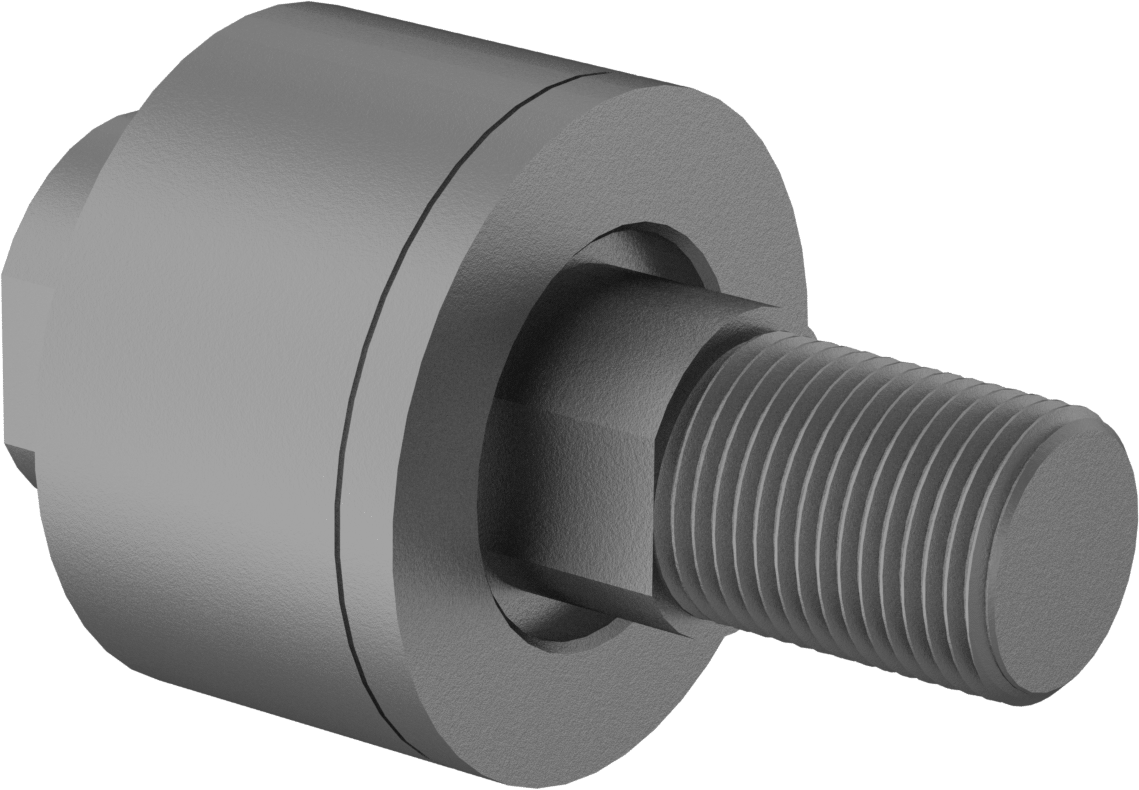

 | ₺11.448 | 78"-14 | Çelik | 5° | 2 18" | 3.437" | 14,450 lbf | 6418T3 |

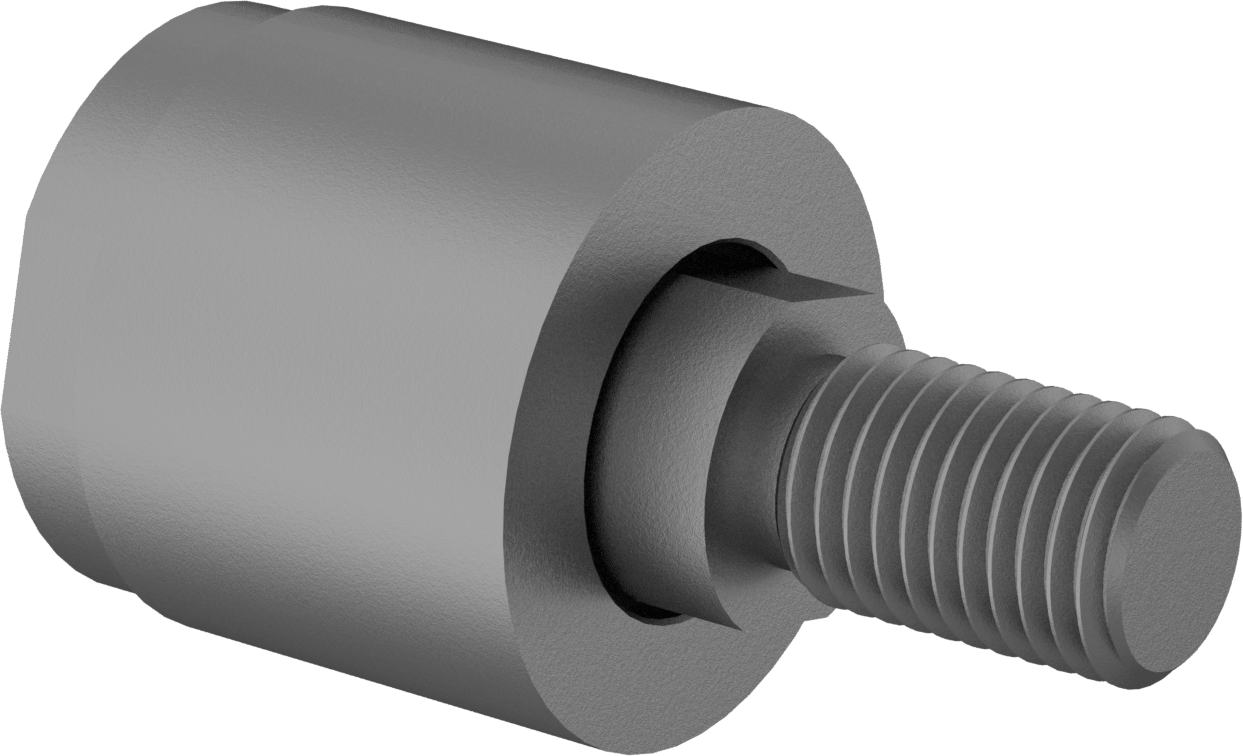

 | ₺30.347 | 1"-8 | Çelik | 1° | 2 12" | 4 916" | 64,000 lbf | 6460T4 |

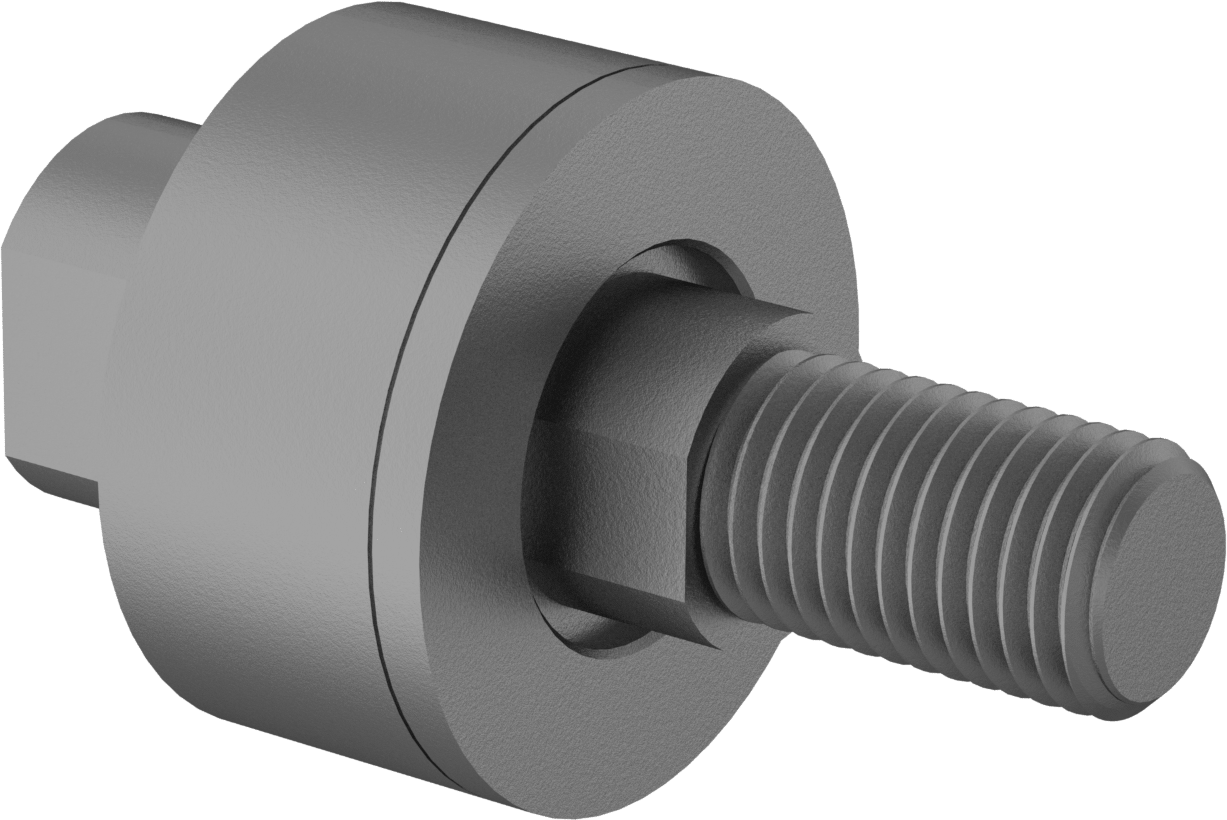

 | ₺73.809 | 1"-8 | Çelik | 5° | 2 34" | 4 1116" | - | 6418T16 |

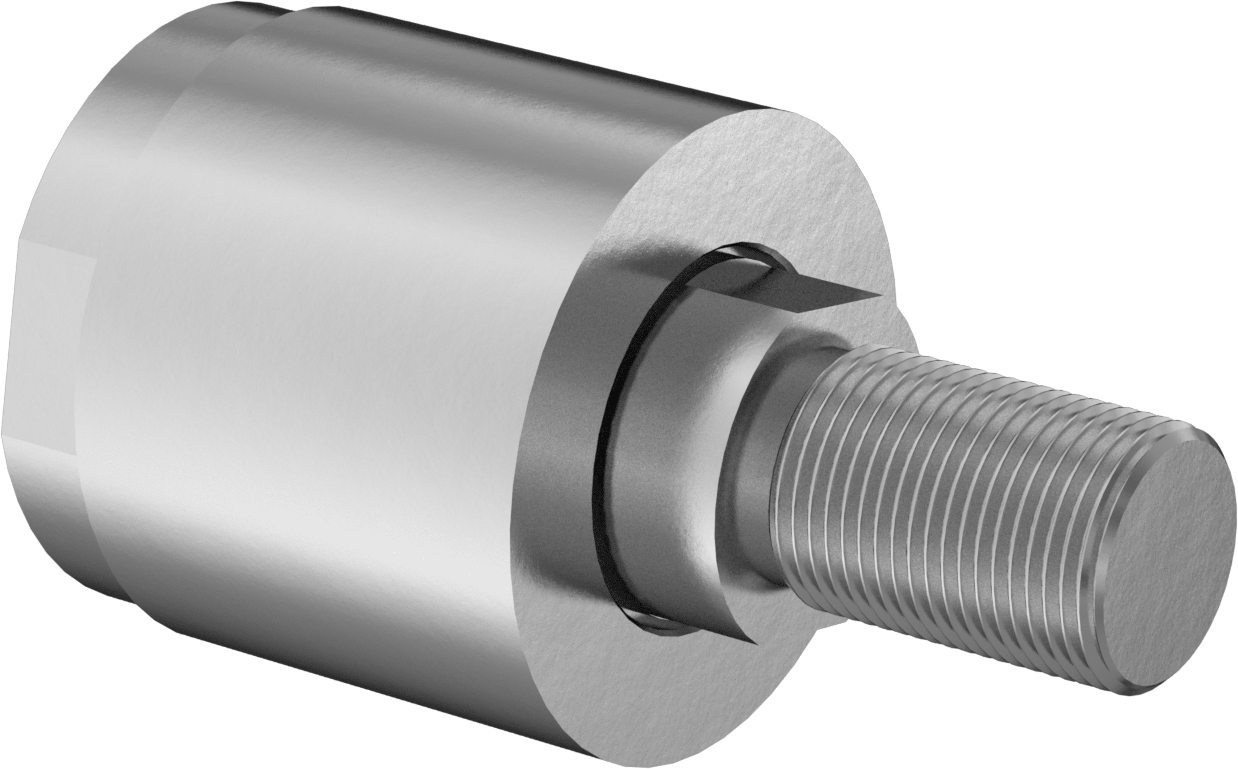

 | ₺39.452 | 1"-14 | 303 Stainless Steel, Stainless Steel | 2° | 2 12" | 4 716" | 17,600 lbf | 6732K22 |
| — | — | — | — | — | — | — | 1101K38 | |
| — | — | — | — | — | — | — | 6184K48 | |
| — | — | — | — | — | — | — | 6418T4 | |
| — | — | — | — | — | — | — | 6732K23 | |
| — | — | — | — | — | — | — | 6184K49 | |
| — | — | — | — | — | — | — | 6418T5 | |
| — | — | — | — | — | — | — | 6460T5 | |
| — | — | — | — | — | — | — | 6418T6 | |
| — | — | — | — | — | — | — | 6418T7 | |
| — | — | — | — | — | — | — | 6418T8 | |
| — | — | — | — | — | — | — | 6418T9 | |
| — | — | — | — | — | — | — | 6418T11 | |
| — | — | — | — | — | — | — | 1101K21 | |
| — | — | — | — | — | — | — | 6740K5 | |
| — | — | — | — | — | — | — | 1101K22 | |
| — | — | — | — | — | — | — | 6740K6 | |
| — | — | — | — | — | — | — | 6732K34 | |
| — | — | — | — | — | — | — | 6740K13 | |
| — | — | — | — | — | — | — | 6740K7 | |
| — | — | — | — | — | — | — | 6732K35 | |
| — | — | — | — | — | — | — | 1101K23 | |
| — | — | — | — | — | — | — | 3285N11 | |
| — | — | — | — | — | — | — | 3285N14 | |
| — | — | — | — | — | — | — | 6740K14 | |
| — | — | — | — | — | — | — | 6740K8 | |
| — | — | — | — | — | — | — | 6732K36 | |
| — | — | — | — | — | — | — | 1101K24 | |
| — | — | — | — | — | — | — | 3285N12 | |
| — | — | — | — | — | — | — | 3285N15 | |
| — | — | — | — | — | — | — | 6740K1 | |
