Pivot Rulmanları
20 ürün
Also known as flexure bearings, these bearings are best for applications that require small, precise oscillating motion with limited twisting such as gimbals, vibration hoppers, and optical devices. They have rotating sleeves connected by springs to create smooth motion without the need for lubricants. When used within their rated capacities, they don't require any maintenance. Clamp on, press fit, or use a set screw or pin to install.
| Görsel | Fiyat | Mil Montaj Tipi | Dış Çap | Radial Load Capacity in Tension | Rulman Tipi | Yay Sertliği | Gövde İç Çapı İçin | Pivot Yatak Tipi | Yay Malzemesi | Toplam Uzunluk | Yük Yönü için | Maksimum Sıcaklık | Minimum Sıcaklık | Radial Load Capacity in Compression | Dönen Uç Uzunluğu | Yağlama | Parça No |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pivot Rulmanları | |||||||||||||||||
 | ₺17.025 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.125" | 3.5 lb. | Pivot | 0.0003 in·lbf/1° | 18" | Tek Uçlu | Paslanmaz Çelik | 316" | Radyal | 375° F | -100° F | 0.95 lb. | 0.095" | Gerekli Değil | 4468N11 |

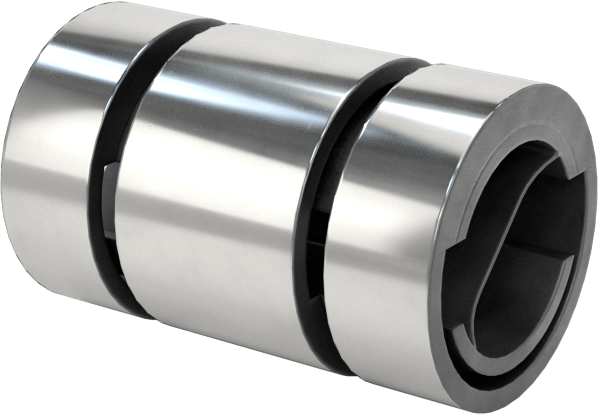

 | ₺24.428 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.125" | 4.5 lb. | Pivot | 0.0003 in·lbf/1° | 18" | Double End | Paslanmaz Çelik | 316" | Radyal | 375° F | -100° F | 2 lb. | 0.045" | Gerekli Değil | 4468N22 |
 | ₺17.765 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.1562" | 5.5 lb. | Pivot | 0.0004 in·lbf/1° | 532" | Tek Uçlu | Paslanmaz Çelik | 14" | Radyal | 375° F | -100° F | 1 lb. | 0.119" | Gerekli Değil | 4468N12 |
 | ₺25.538 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.1562" | 7 lb. | Pivot | 0.0004 in·lbf/1° | 532" | Double End | Paslanmaz Çelik | 14" | Radyal | 375° F | -100° F | 3.5 lb. | 0.054" | Gerekli Değil | 4468N23 |
 | ₺18.506 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.1875" | 7.5 lb. | Pivot | 0.0007 in·lbf/1° | 316" | Tek Uçlu | Paslanmaz Çelik | 932" | Radyal | 375° F | -100° F | 2 lb. | 0.142" | Gerekli Değil | 4468N13 |
 | ₺26.277 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.1875" | 10 lb. | Pivot | 0.0007 in·lbf/1° | 316" | Double End | Paslanmaz Çelik | 932" | Radyal | 375° F | -100° F | 5 lb. | 0.07" | Gerekli Değil | 4468N24 |
 | ₺19.986 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.25" | 14 lb. | Pivot | 0.0018 in·lbf/1° | 14" | Tek Uçlu | Paslanmaz Çelik | 1332" | Radyal | 375° F | -100° F | 3.5 lb. | 0.19" | Gerekli Değil | 4468N14 |
 | ₺28.499 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.25" | 18 lb. | Pivot | 0.0018 in·lbf/1° | 14" | Double End | Paslanmaz Çelik | 1332" | Radyal | 375° F | -100° F | 9 lb. | 0.09" | Gerekli Değil | 4468N25 |
 | ₺20.725 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.3125" | 22 lb. | Pivot | 0.0037 in·lbf/1° | 516" | Tek Uçlu | Paslanmaz Çelik | 12" | Radyal | 375° F | -100° F | 5.5 lb. | 0.235" | Gerekli Değil | 4468N15 |

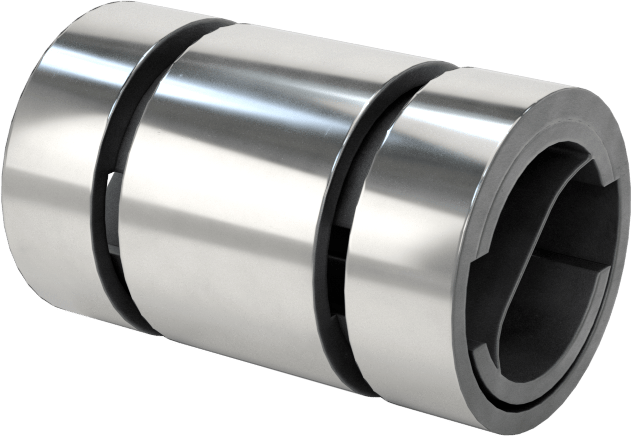

 | ₺29.608 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.3125" | 28 lb. | Pivot | 0.0037 in·lbf/1° | 516" | Double End | Paslanmaz Çelik | 12" | Radyal | 375° F | -100° F | 14 lb. | 0.11" | Gerekli Değil | 4468N26 |
 | ₺22.206 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.375" | 33 lb. | Pivot | 0.0065 in·lbf/1° | 38" | Tek Uçlu | Paslanmaz Çelik | 1932" | Radyal | 375° F | -100° F | 8 lb. | 0.285" | Gerekli Değil | 4468N16 |
 | ₺31.829 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.375" | 40 lb. | Pivot | 0.0065 in·lbf/1° | 38" | Double End | Paslanmaz Çelik | 1932" | Radyal | 375° F | -100° F | 20 lb. | 0.142" | Gerekli Değil | 4468N27 |

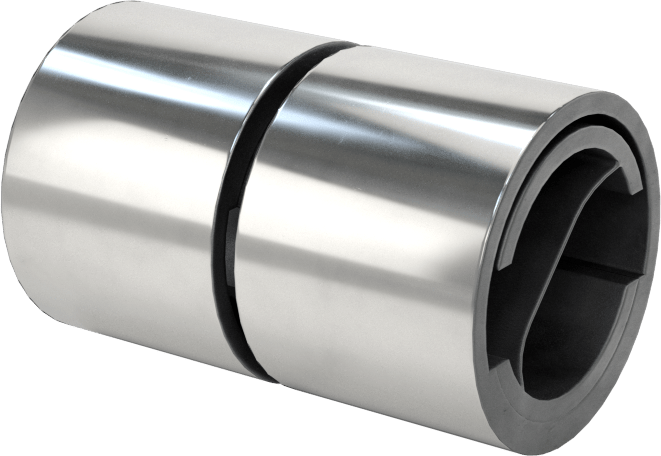

 | ₺23.316 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.5" | 55 lb. | Pivot | 0.0148 in·lbf/1° | 12" | Tek Uçlu | Paslanmaz Çelik | 2532" | Radyal | 375° F | -100° F | 14 lb. | 0.382" | Gerekli Değil | 4468N17 |
 | ₺33.309 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.5" | 70 lb. | Pivot | 0.0148 in·lbf/1° | 12" | Double End | Paslanmaz Çelik | 2532" | Radyal | 375° F | -100° F | 35 lb. | 0.19" | Gerekli Değil | 4468N28 |
 | ₺27.758 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.625" | 90 lb. | Pivot | 0.0296 in·lbf/1° | 58" | Tek Uçlu | Paslanmaz Çelik | 1" | Radyal | 375° F | -100° F | 23 lb. | 0.48" | Gerekli Değil | 4468N18 |

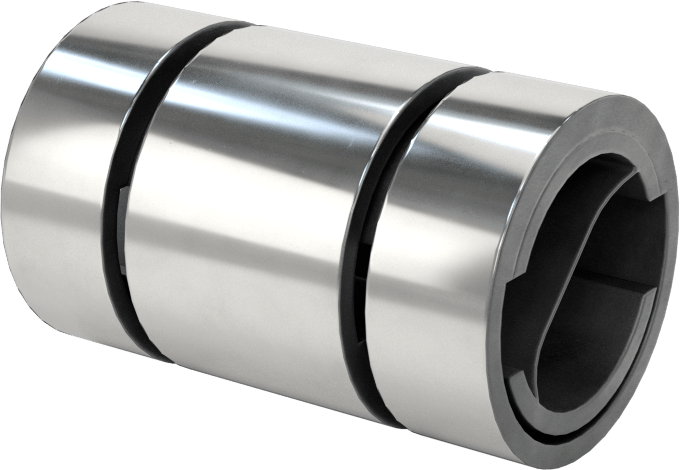

 | ₺39.602 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.625" | 110 lb. | Pivot | 0.0296 in·lbf/1° | 58" | Double End | Paslanmaz Çelik | 1" | Radyal | 375° F | -100° F | 55 lb. | 0.23" | Gerekli Değil | 4468N29 |
 | ₺35.160 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.75" | 125 lb. | Pivot | 0.0482 in·lbf/1° | 34" | Tek Uçlu | Paslanmaz Çelik | 1 316" | Radyal | 375° F | -100° F | 32 lb. | 0.57" | Gerekli Değil | 4468N19 |

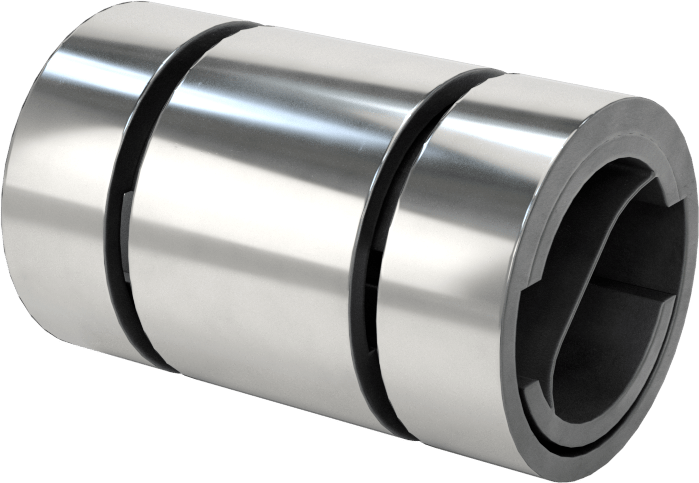

 | ₺50.334 | Clamp On, Press Fit, Set Screw, Spring Pin | 0.75" | 160 lb. | Pivot | 0.0482 in·lbf/1° | 34" | Double End | Paslanmaz Çelik | 1 316" | Radyal | 375° F | -100° F | 80 lb. | 0.275" | Gerekli Değil | 4468N31 |

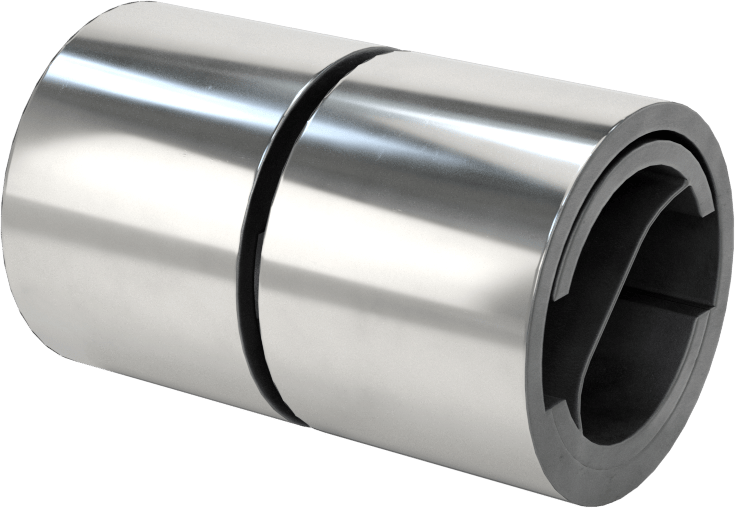

 | ₺44.413 | Clamp On, Press Fit, Set Screw, Spring Pin | 1" | 235 lb. | Pivot | 0.1185 in·lbf/1° | 1" | Tek Uçlu | Paslanmaz Çelik | 1 1932" | Radyal | 375° F | -100° F | 55 lb. | 0.77" | Gerekli Değil | 4468N21 |

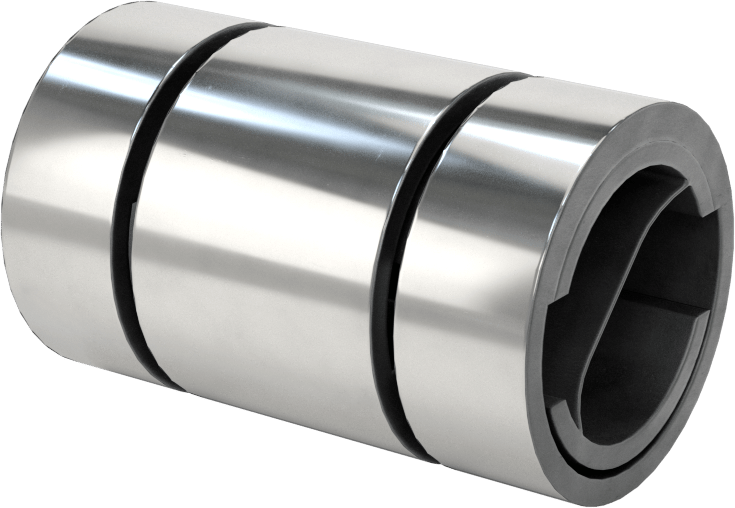

 | ₺63.659 | Clamp On, Press Fit, Set Screw, Spring Pin | 1" | 280 lb. | Pivot | 0.1185 in·lbf/1° | 1" | Double End | Paslanmaz Çelik | 1 1932" | Radyal | 375° F | -100° F | 140 lb. | 0.372" | Gerekli Değil | 4468N32 |
