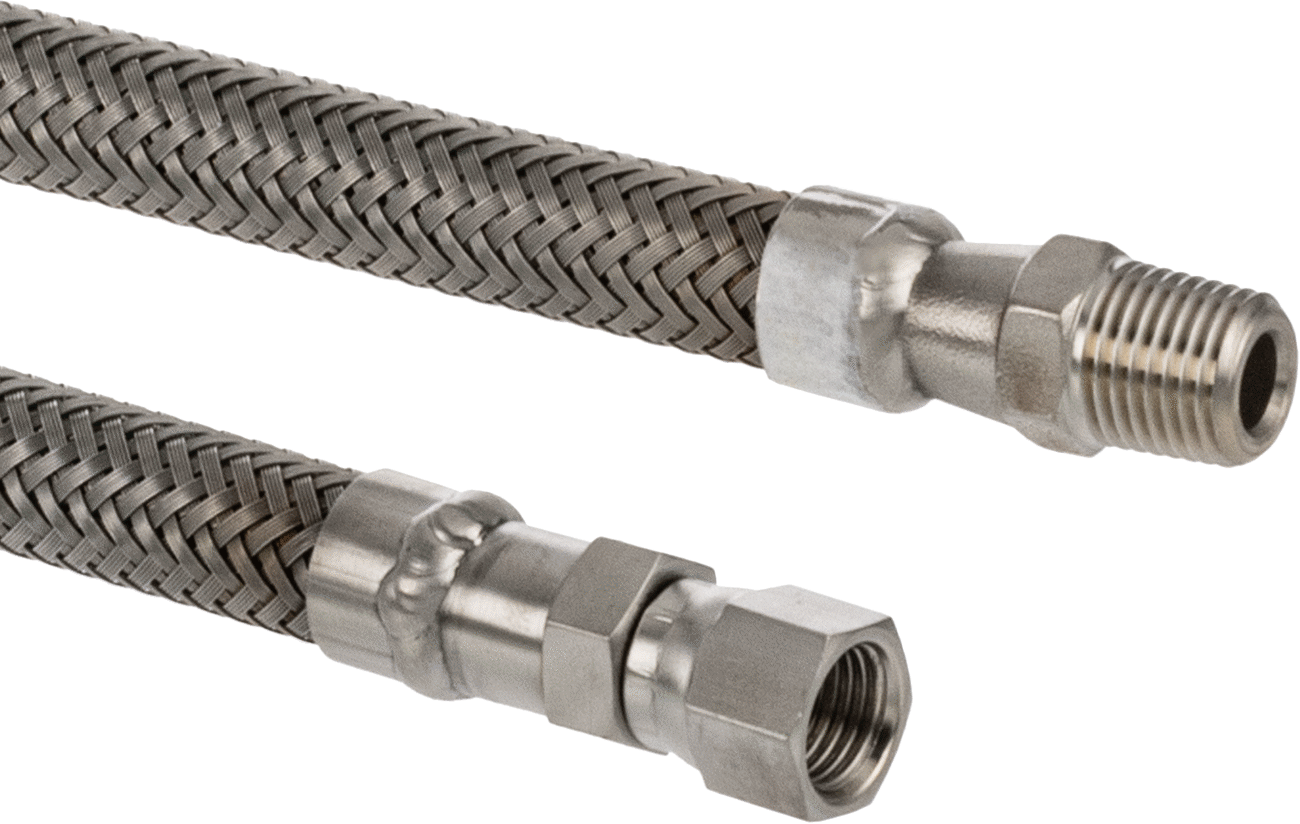

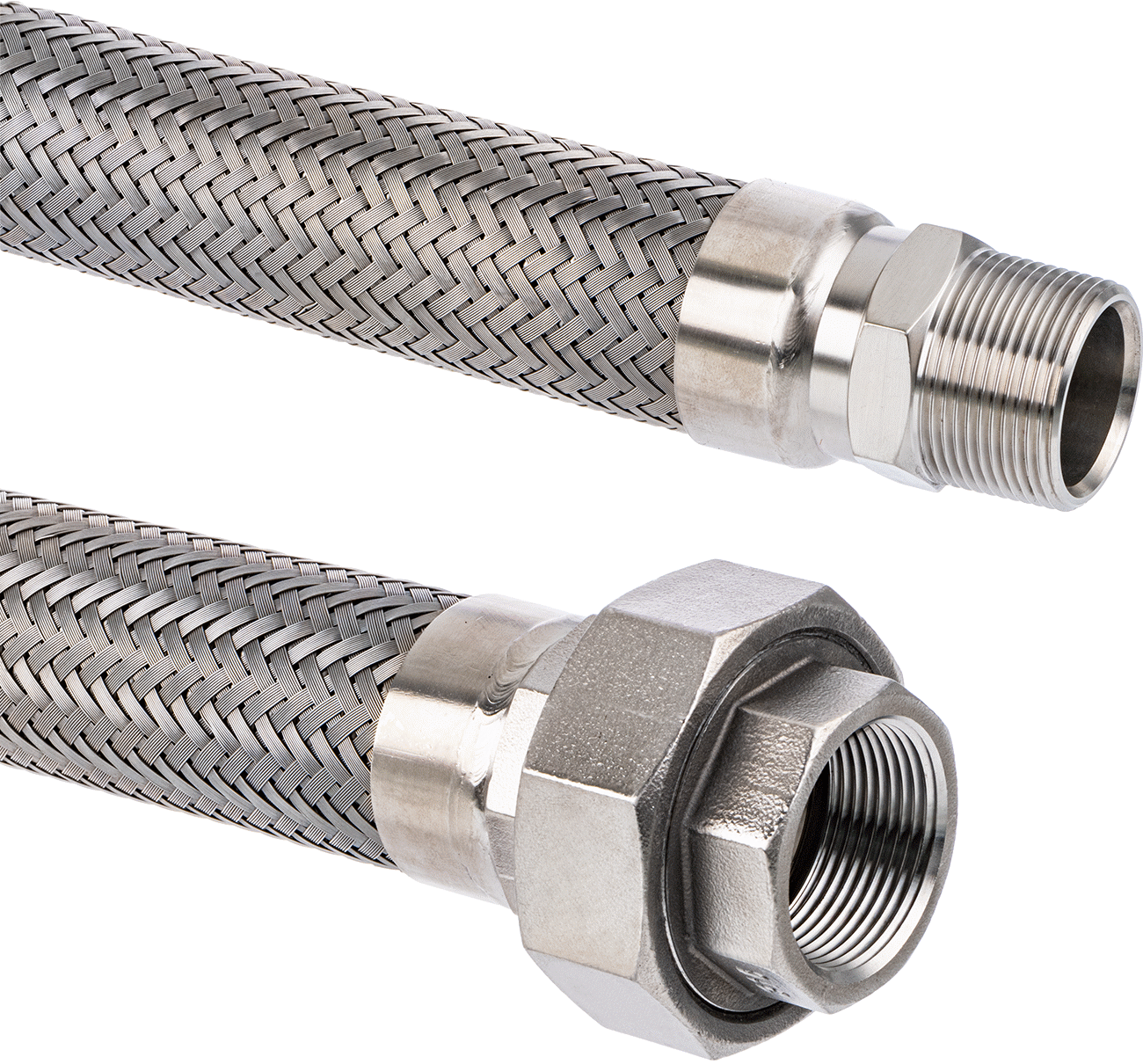

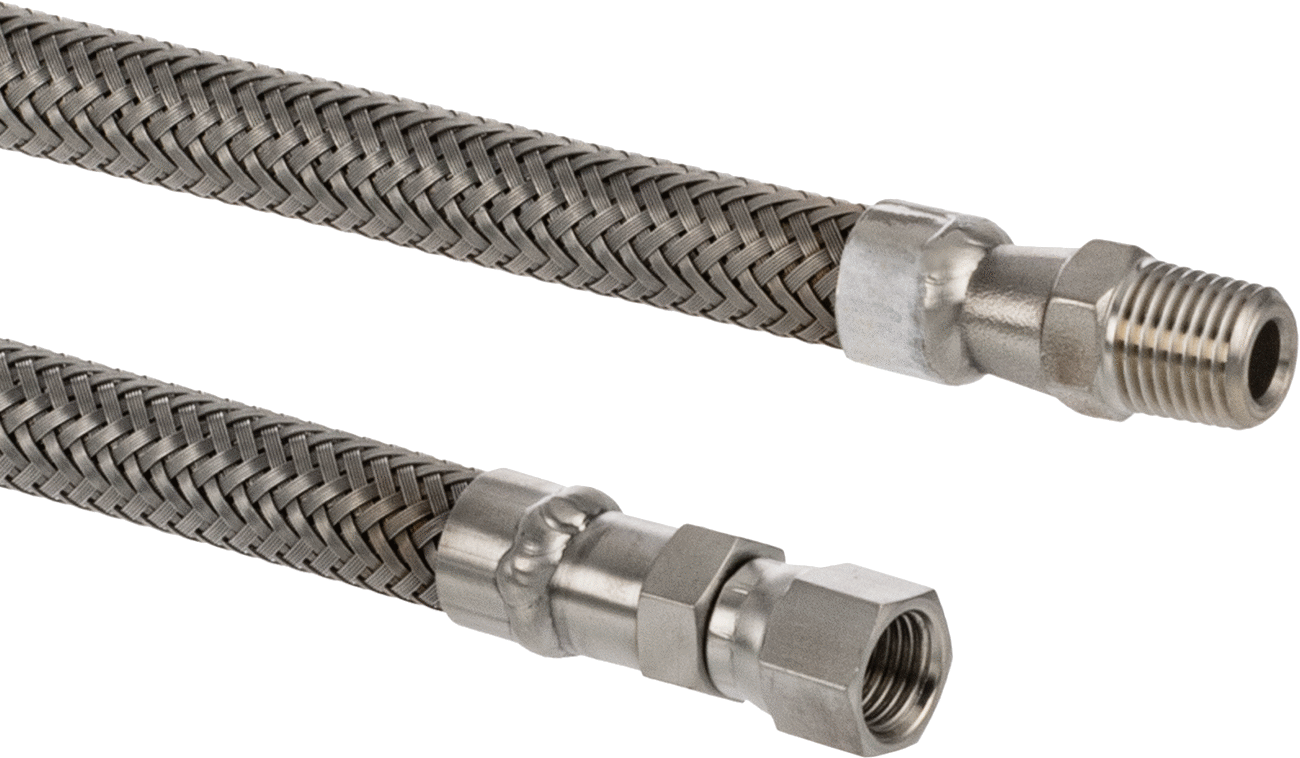

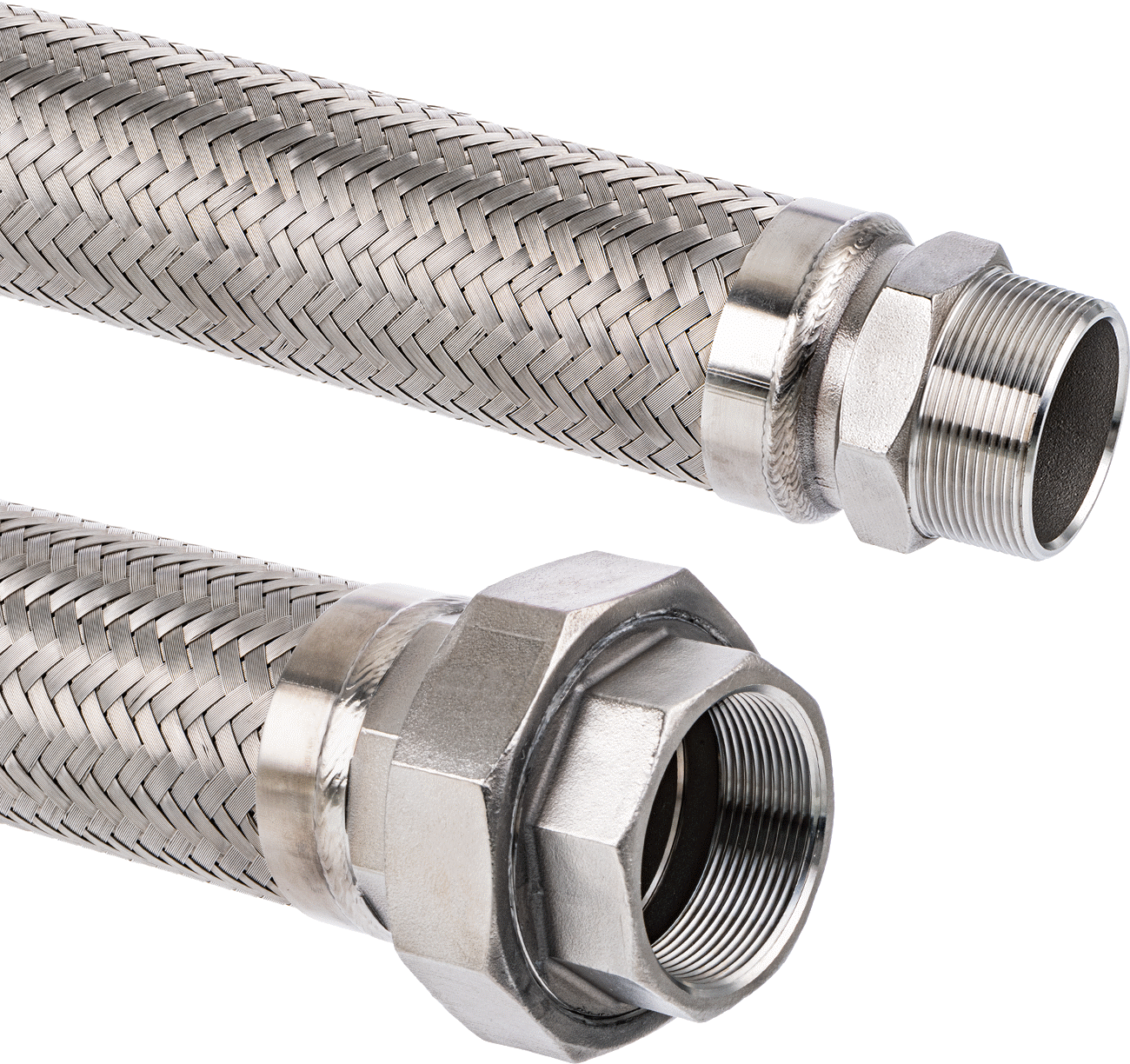

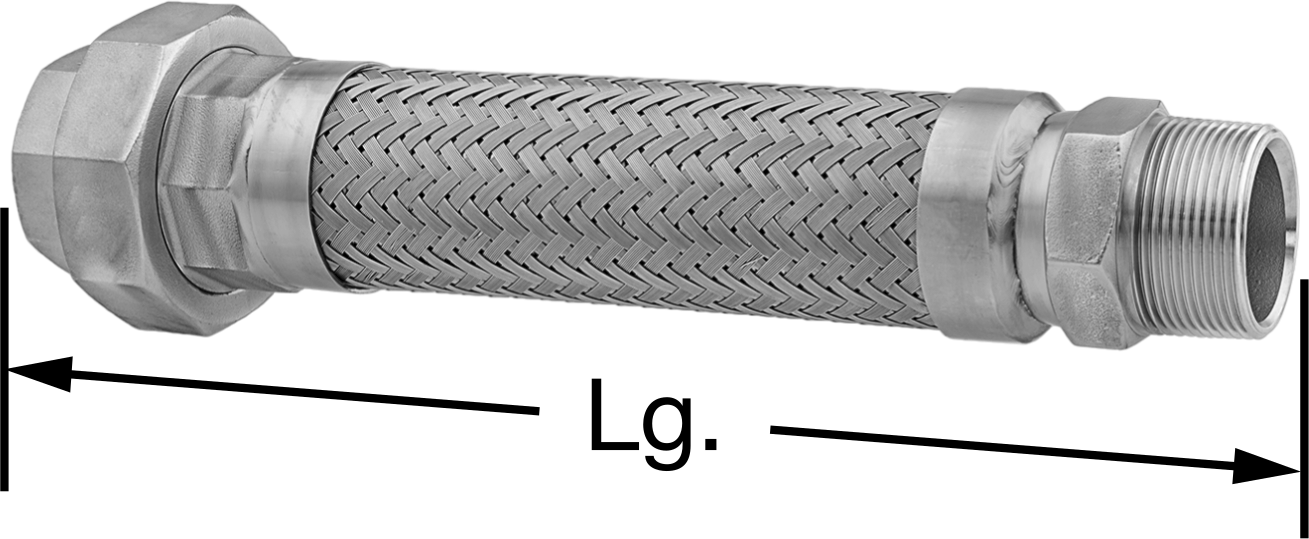

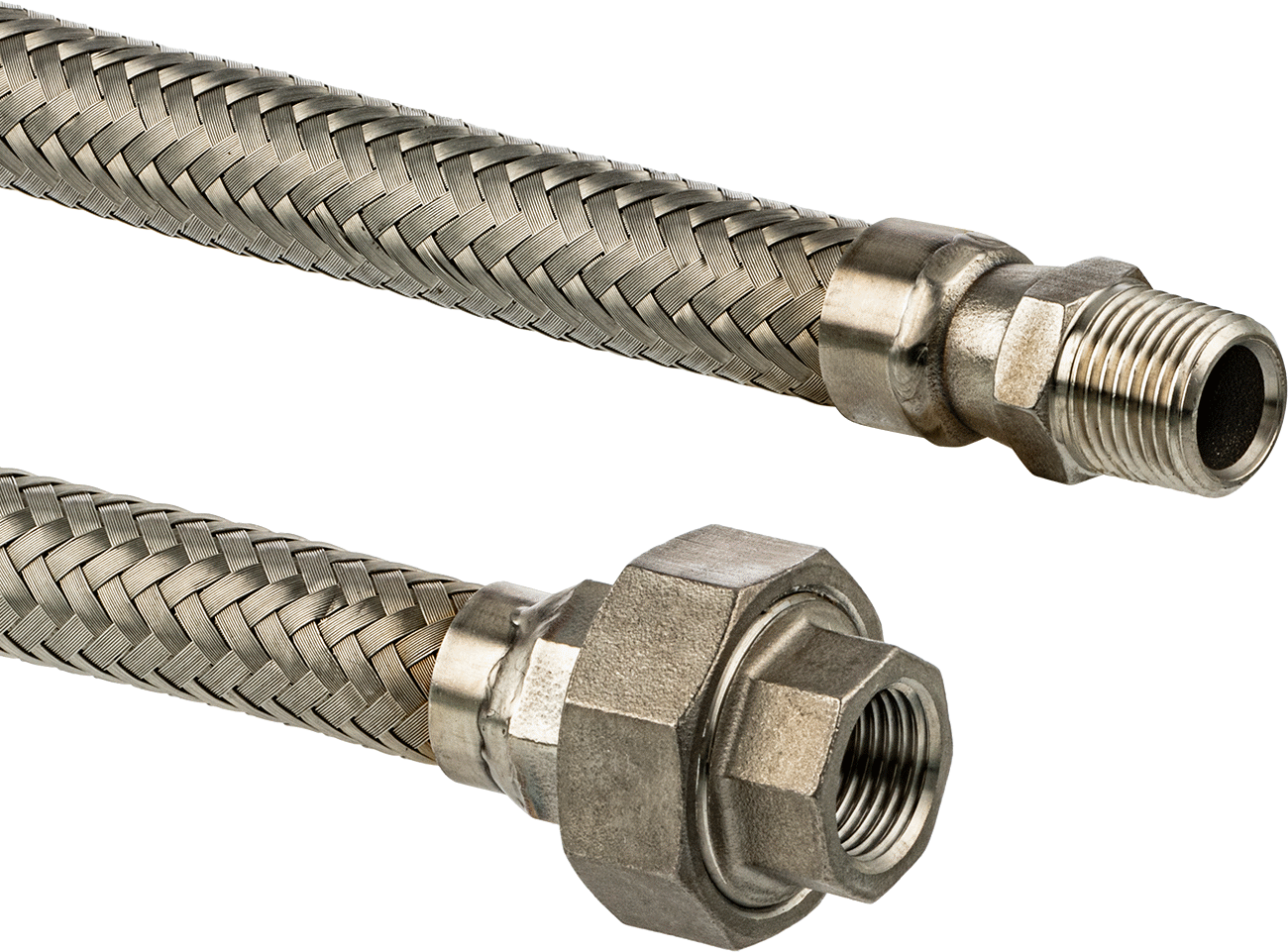

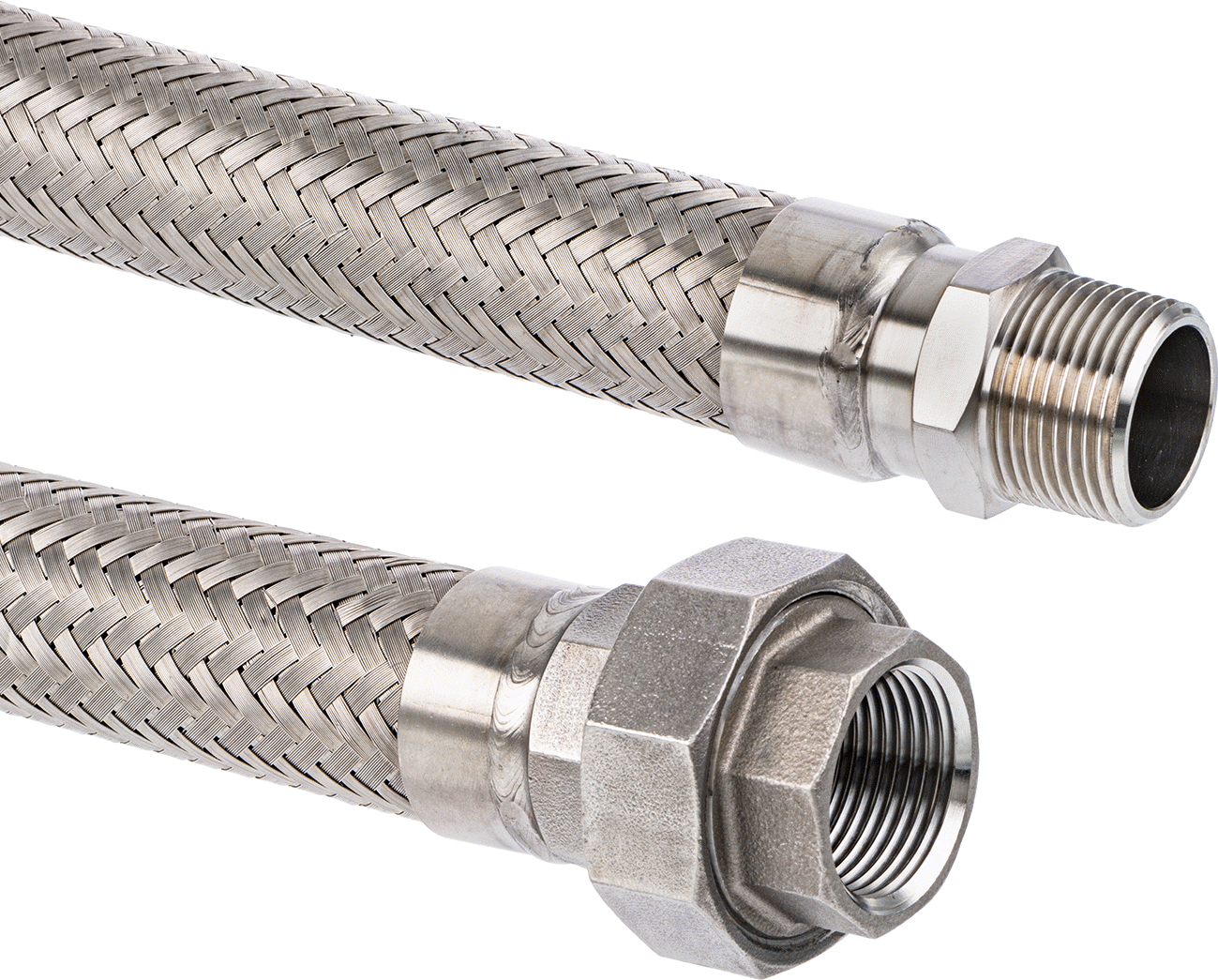

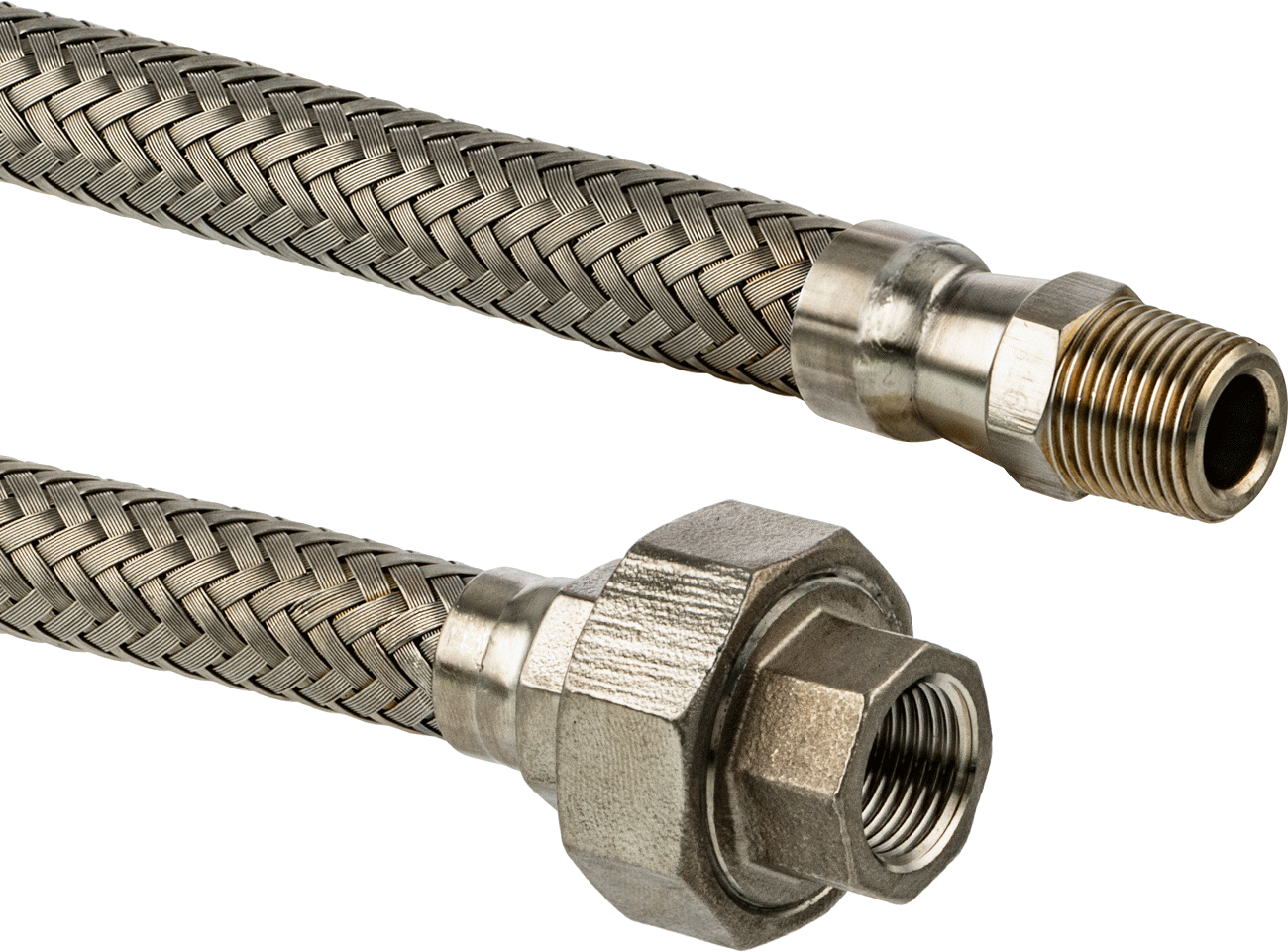

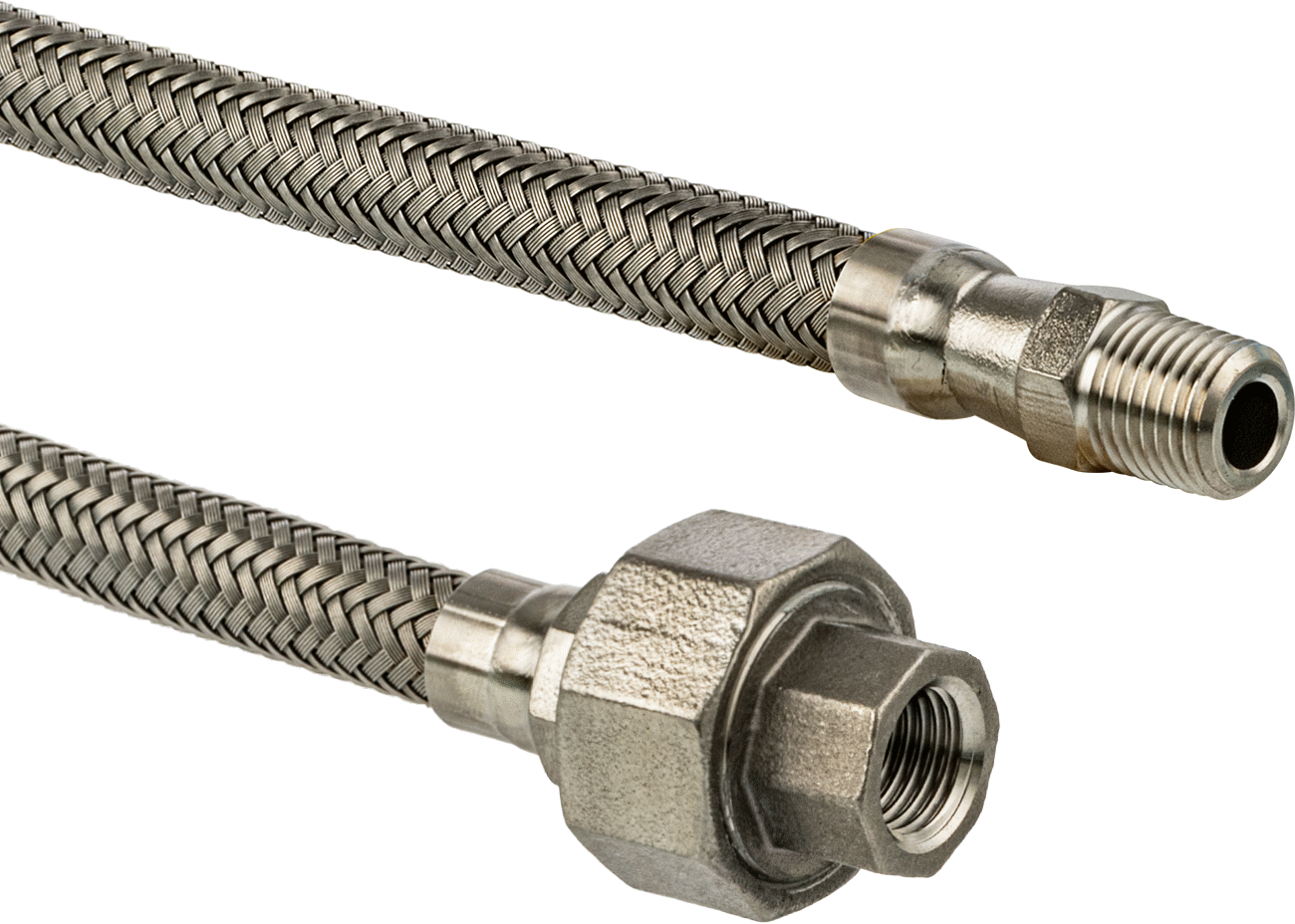

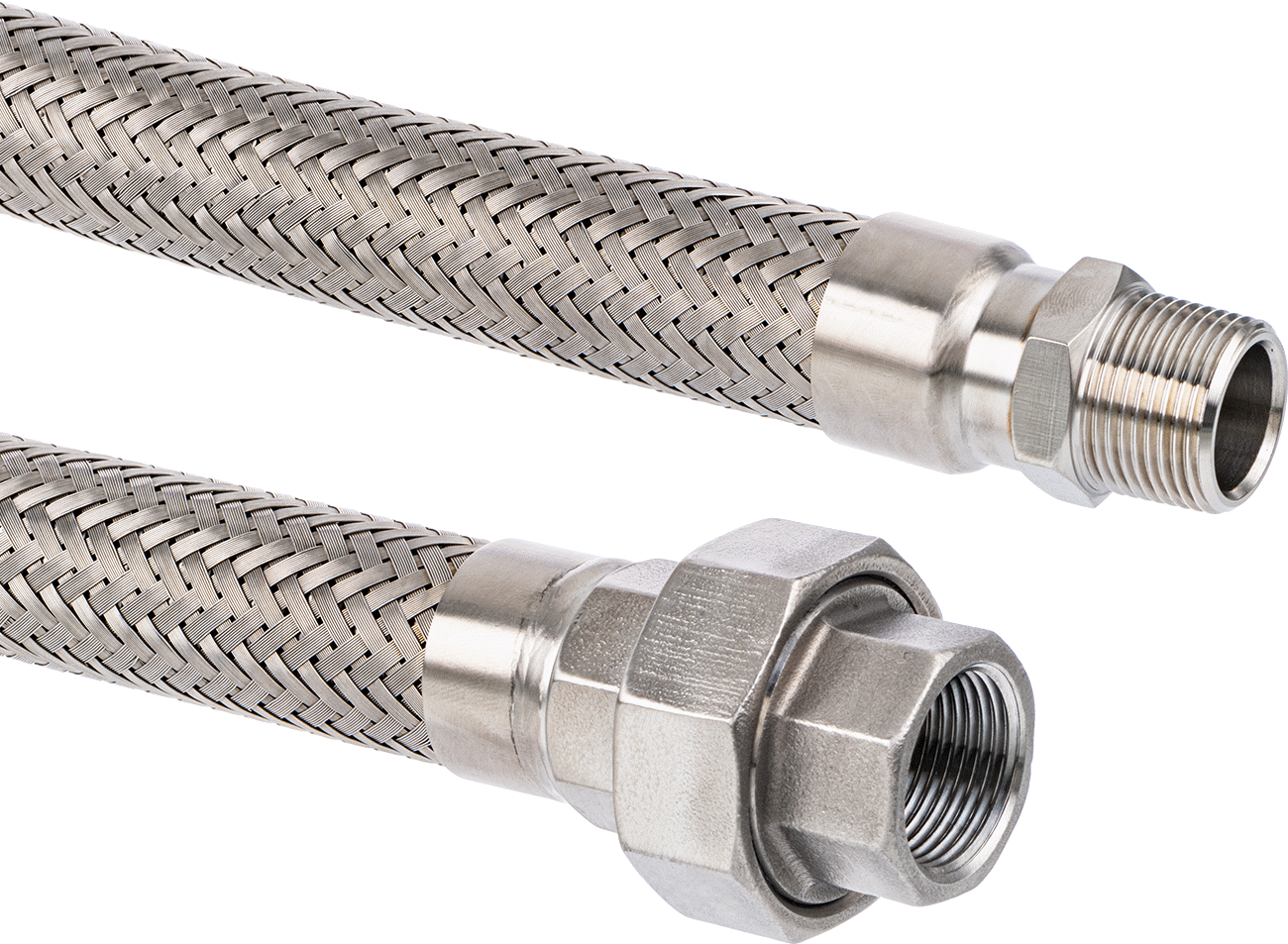

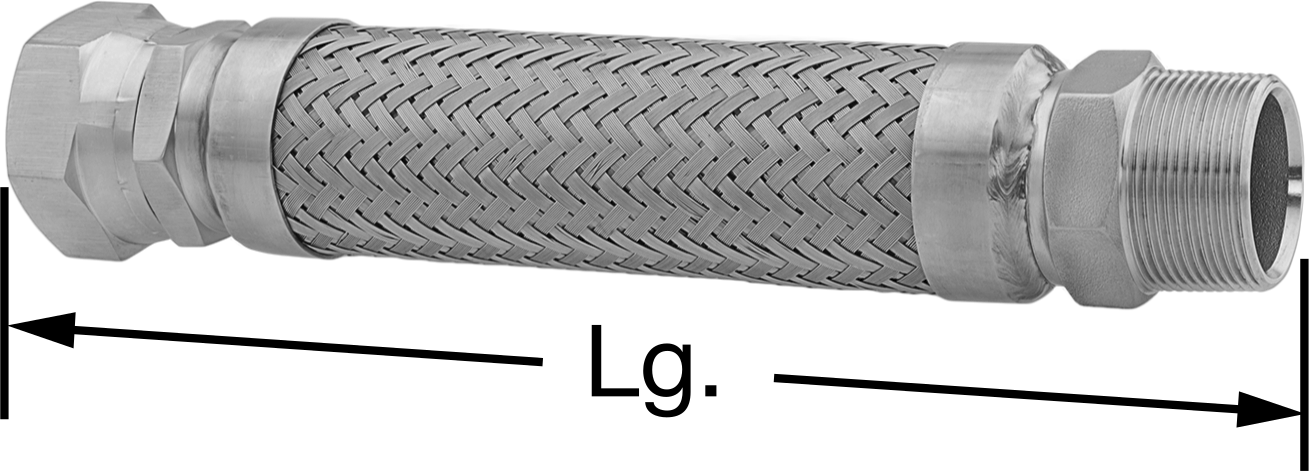

Erkek ve Dişi Dişli Bağlantı Parçalı Aşırı Sıcaklık Hava ve Buhar Hortumu
28 ürün
Örgülü paslanmaz çelik yapı, bu hortuma orta derecede esneklik kazandırır ve onu aşırı sıcaklıkların yanı sıra titreşime de dayanacak kadar sağlam hale getirir.
| Görsel | Fiyat | Boru Çapı | Uzunluk | Diş Tipi | Bağlantı Elemanı Bağlantısı | Cins | Bağlantı Elemanı Malzemesi | Birlikte Kullanım | Bağlanır | Malzeme | ID | Sıcaklıktaki Maksimum Basınç | Maksimum Sıcaklık | Örgü Malzemesi | Minimum Sıcaklık | Dış Çap | Dış Takviye | İç Doku | Dönüş Yarıçapı | Parça No |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Erkek ve Dişi Dişli Bağlantı Parçalı Aşırı Sıcaklık Hava ve Buhar Hortumu | ||||||||||||||||||||
 | — | 14 | 7" ila 120" | NPT, UNF | 37° Flared, Flared, Threaded | Dişi, Erkek | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru, Tüp | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | 14" | 2,700 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 12" | Örgülü | Oluklu | 4 12" | 5676T82 |
 | — | 14 | 7" ila 120" | NPT, UNF | 37° Flared, Flared, Threaded | Dişi, Erkek | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru, Tüp | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | 14" | 2,700 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 12" | Örgülü | Oluklu | 4 12" | 5793T62 |
 | — | 14 | 7" ila 120" | NPT | Dişli | Dişi, Erkek | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | 14" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 12" | Örgülü | Oluklu | 4 12" | 5676T72 |
 | — | 14 | 7" ila 120" | NPT | Dişli | Dişi, Erkek | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | 14" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 12" | Örgülü | Oluklu | 4 12" | 5793T66 |
| — | 38 | 7" ila 120" | NPT, UNF | 37° Flared, Flared, Threaded | Dişi, Erkek | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru, Tüp | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | 38" | 2,330 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 34" | Örgülü | Oluklu | 5" | 5676T84 |
 | — | 38 | 7" ila 120" | NPT, UNF | 37° Flared, Flared, Threaded | Dişi, Erkek | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru, Tüp | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | 38" | 2,330 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 34" | Örgülü | Oluklu | 5" | 5793T64 |
| — | 38 | 7" ila 120" | NPT | Dişli | Dişi, Erkek | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | 38" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 34" | Örgülü | Oluklu | 5" | 5676T32 |
 | — | 38 | 7" ila 120" | NPT | Dişli | Dişi, Erkek | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | 38" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 34" | Örgülü | Oluklu | 5" | 5793T69 |
| — | 12 | 7" ila 120" | NPT, UNF | 37° Flared, Flared, Threaded | Dişi, Erkek | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru, Tüp | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | 12" | 1,770 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 78" | Örgülü | Oluklu | 5 12" | 5676T12 |
 | — | 12 | 7" ila 120" | NPT, UNF | 37° Flared, Flared, Threaded | Dişi, Erkek | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru, Tüp | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | 12" | 1,770 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 78" | Örgülü | Oluklu | 5 12" | 5793T91 |
| — | 12 | 7" ila 120" | NPT | Dişli | Dişi, Erkek | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | 12" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 78" | Örgülü | Oluklu | 5 12" | 5676T33 |
 | — | 12 | 7" ila 120" | NPT | Dişli | Dişi, Erkek | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | 12" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 78" | Örgülü | Oluklu | 5 12" | 5793T71 |
| — | 34 | 9" ila 120" | NPT, UNF | 37° Flared, Flared, Threaded | Dişi, Erkek | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru, Tüp | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | 34" | 1,340 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 1 14" | Örgülü | Oluklu | 8" | 5676T13 |
 | — | 34 | 9" ila 120" | NPT, UNF | 37° Flared, Flared, Threaded | Dişi, Erkek | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru, Tüp | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | 34" | 1,340 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 1 14" | Örgülü | Oluklu | 8" | 5793T92 |
| — | 34 | 9" ila 120" | NPT | Dişli | Dişi, Erkek | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | 34" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 1 14" | Örgülü | Oluklu | 8" | 5676T74 |
 | — | 34 | 9" ila 120" | NPT | Dişli | Dişi, Erkek | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | 34" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 1 14" | Örgülü | Oluklu | 8" | 5793T82 |
| — | 1 | 9" ila 120" | NPT, UNF | 37° Flared, Flared, Threaded | Dişi, Erkek | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru, Tüp | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | 1" | 1,070 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 1 58" | Örgülü | Oluklu | 9" | 5676T14 |
 | — | 1 | 9" ila 120" | NPT, UNF | 37° Flared, Flared, Threaded | Dişi, Erkek | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru, Tüp | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | 1" | 1,070 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 1 58" | Örgülü | Oluklu | 9" | 5793T93 |
| — | 1 | 9" ila 120" | NPT | Dişli | Dişi, Erkek | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | 1" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 1 58" | Örgülü | Oluklu | 9" | 5676T35 |
 | — | 1 | 9" ila 120" | NPT | Dişli | Dişi, Erkek | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | 1" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 1 58" | Örgülü | Oluklu | 9" | 5793T84 |
| — | 1 14 | 9" ila 120" | NPT | Dişli | Dişi, Erkek | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | 1 14" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 1 78" | Örgülü | Oluklu | 10" | 5676T36 |
 | — | 1 14 | 9" ila 120" | NPT | Dişli | Dişi, Erkek | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | 1 14" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 1 78" | Örgülü | Oluklu | 10" | 5793T86 |
| — | 1 12 | 10" to 120" | NPT, UNF | 37° Flared, Flared, Threaded | Dişi, Erkek | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru, Tüp | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | 1 12" | 790 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 2 14" | Örgülü | Oluklu | 11" | 5676T15 |
 | — | 1 12 | 10" to 120" | NPT, UNF | 37° Flared, Flared, Threaded | Dişi, Erkek | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru, Tüp | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | 1 12" | 790 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 2 14" | Örgülü | Oluklu | 11" | 5793T94 |
| — | 1 12 | 10" to 120" | NPT | Dişli | Dişi, Erkek | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | 1 12" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 2 14" | Örgülü | Oluklu | 11" | 5676T37 |
 | — | 1 12 | 10" to 120" | NPT | Dişli | Dişi, Erkek | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | 1 12" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 2 14" | Örgülü | Oluklu | 11" | 5793T38 |
| — | 2 | 11" to 120" | NPT | Dişli | Dişi, Erkek | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | 2" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 2 34" | Örgülü | Oluklu | 13" | 5676T78 |
 | — | 2 | 11" to 120" | NPT | Dişli | Dişi, Erkek | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Boru | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | 2" | 300 psi @ 72° F | 1,200° F | 304 Stainless Steel, Stainless Steel | -325° F | 2 34" | Örgülü | Oluklu | 13" | 5793T39 |
