Erkek ve Dişi Dişli Bağlantı Parçaları ile Ekstra Esnek Aşırı Sıcaklık Hava ve Buhar Hortumu
16 ürün
Ekstra esnek örgülü paslanmaz çelikten üretilen bu hortum, hizasızlığı telafi eder ve kolayca bükülebilir, ancak yüksek sıcaklıklara ve titreşime dayanacak kadar sağlamdır.
| Görsel | Fiyat | Boru Çapı | Cins | Diş Tipi | Bağlantı Elemanı Malzemesi | Birlikte Kullanım | Malzeme | Bağlantı Elemanı Bağlantısı | Bağlanır | ID | Bağlantı Tipi | Maksimum Sıcaklık | Dönüş Yarıçapı | Sıcaklıktaki Maksimum Basınç | Örgü Malzemesi | Dış Çap | Minimum Sıcaklık | Dış Takviye | Sıcaklıkta Maksimum Vakum | İç Doku | Parça No |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Erkek ve Dişi Dişli Bağlantı Parçaları ile Ekstra Esnek Aşırı Sıcaklık Hava ve Buhar Hortumu | |||||||||||||||||||||

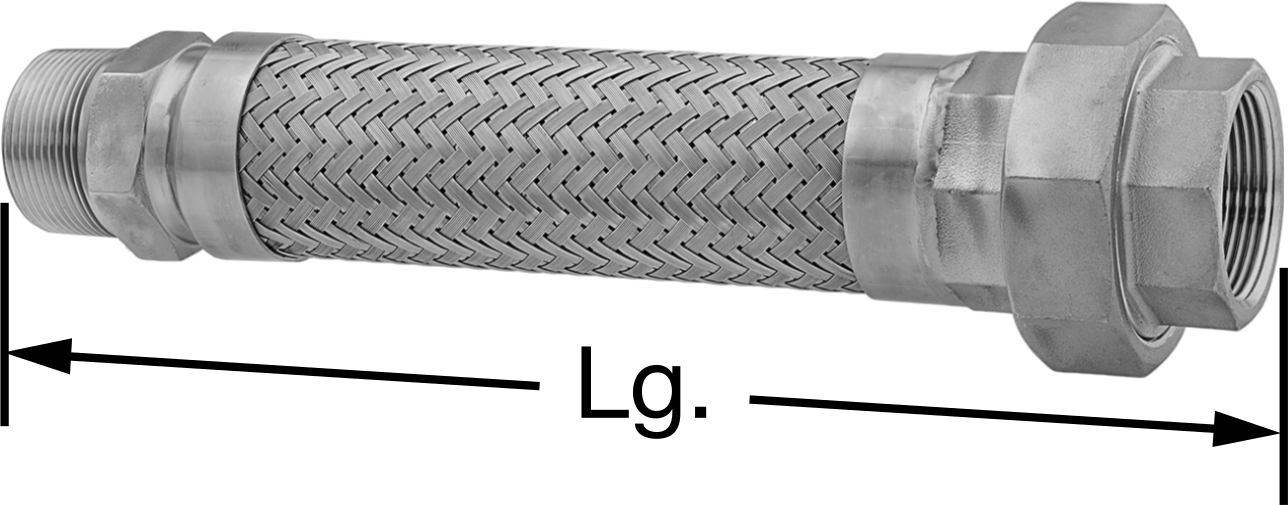

 | — | 14 | Dişi, Erkek | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | Dişli | Boru | 14" | Union | 1,200° F | 3 1116" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 12" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 54905K27 |

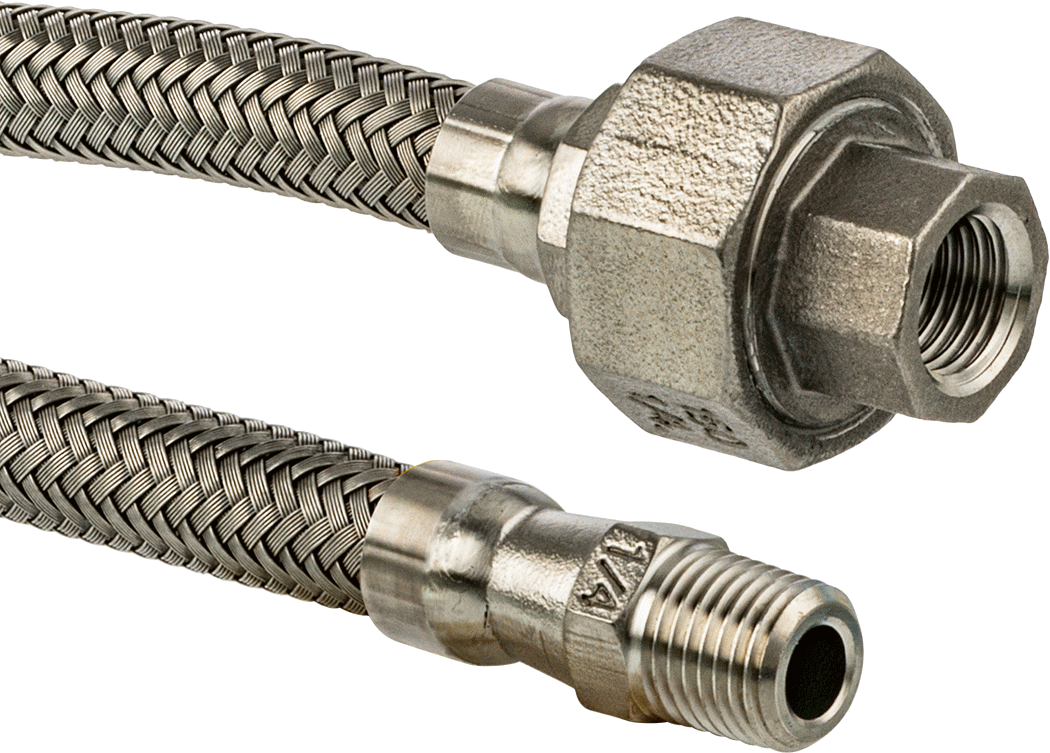

 | — | 14 | Dişi, Erkek | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | Dişli | Boru | 14" | Union | 1,200° F | 3 1116" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 12" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 5301T61 |
| — | 38 | Dişi, Erkek | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | Dişli | Boru | 38" | Union | 1,200° F | 4" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 34" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 54905K29 |

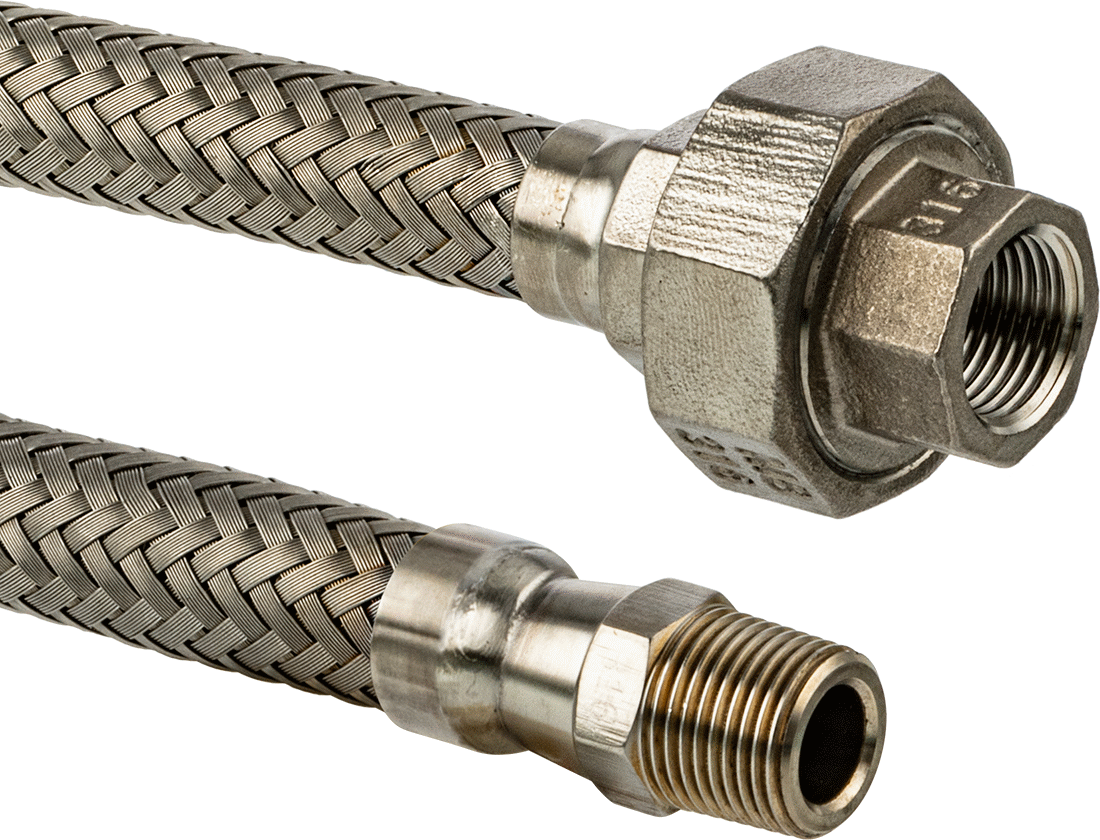

 | — | 38 | Dişi, Erkek | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | Dişli | Boru | 38" | Union | 1,200° F | 4" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 34" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 5301T62 |
| — | 12 | Dişi, Erkek | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | Dişli | Boru | 12" | Union | 1,200° F | 4 38" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 78" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 54905K32 |

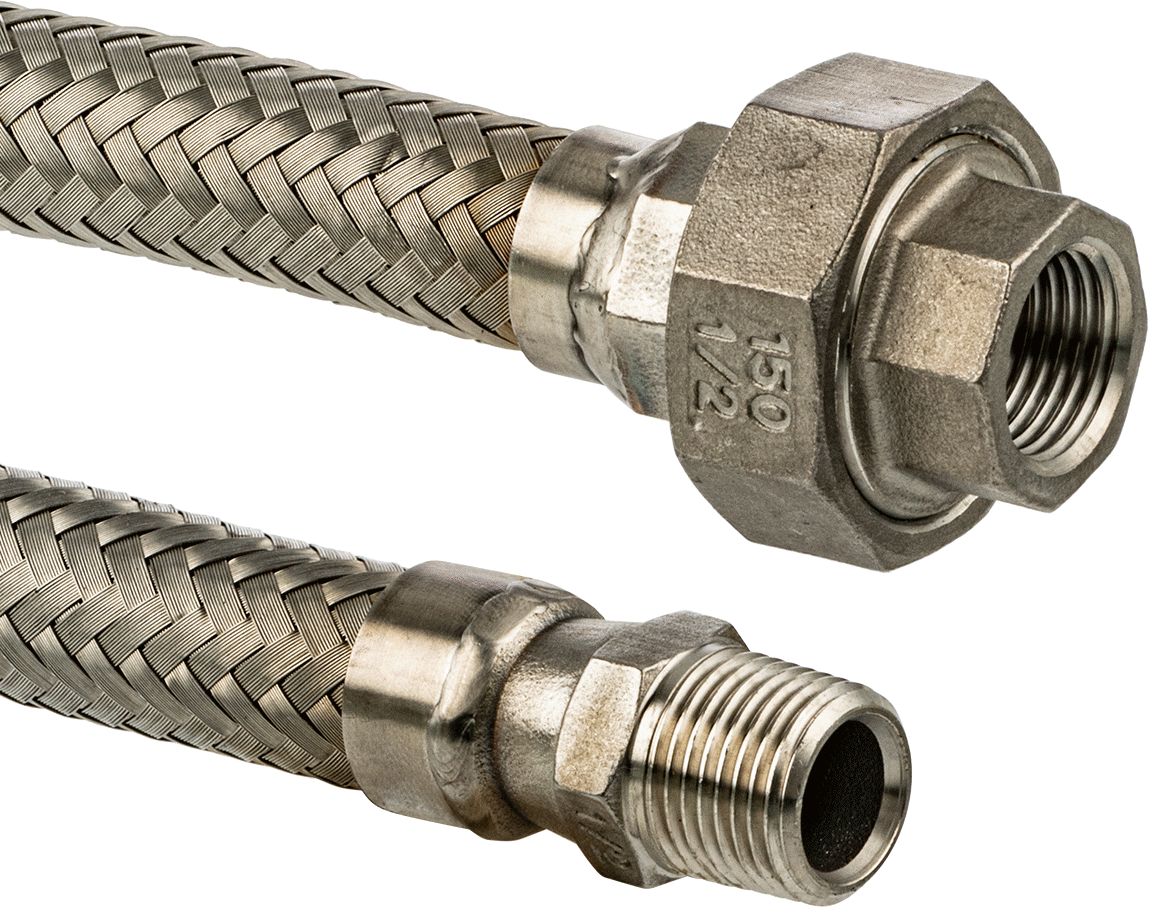

 | — | 12 | Dişi, Erkek | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | Dişli | Boru | 12" | Union | 1,200° F | 4 38" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 78" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 5301T63 |
| — | 34 | Dişi, Erkek | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | Dişli | Boru | 34" | Union | 1,200° F | 6 38" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 1 14" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 54905K34 |

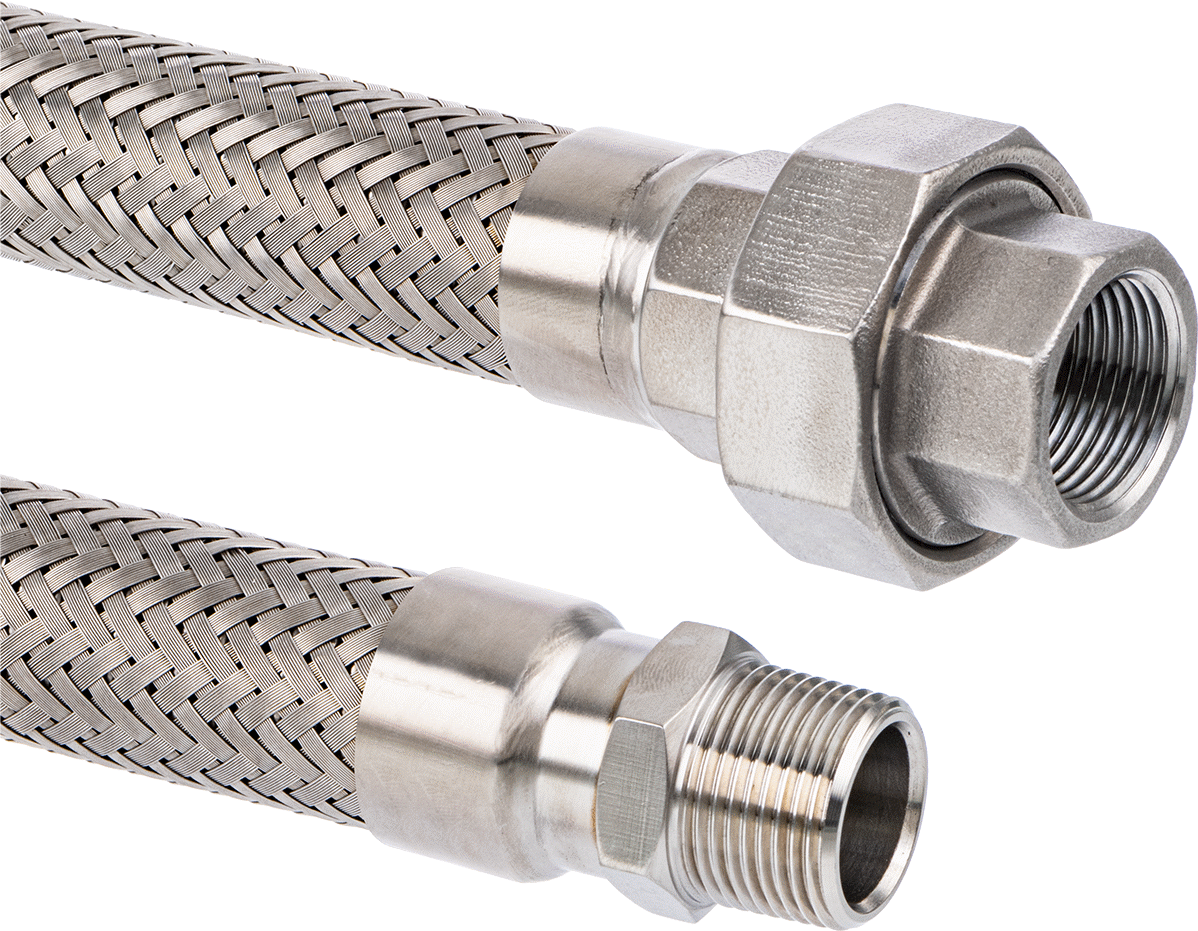

 | — | 34 | Dişi, Erkek | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | Dişli | Boru | 34" | Union | 1,200° F | 6 38" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 1 14" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 5301T64 |
| — | 1 | Dişi, Erkek | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | Dişli | Boru | 1" | Union | 1,200° F | 7 116" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 1 58" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 54905K36 |

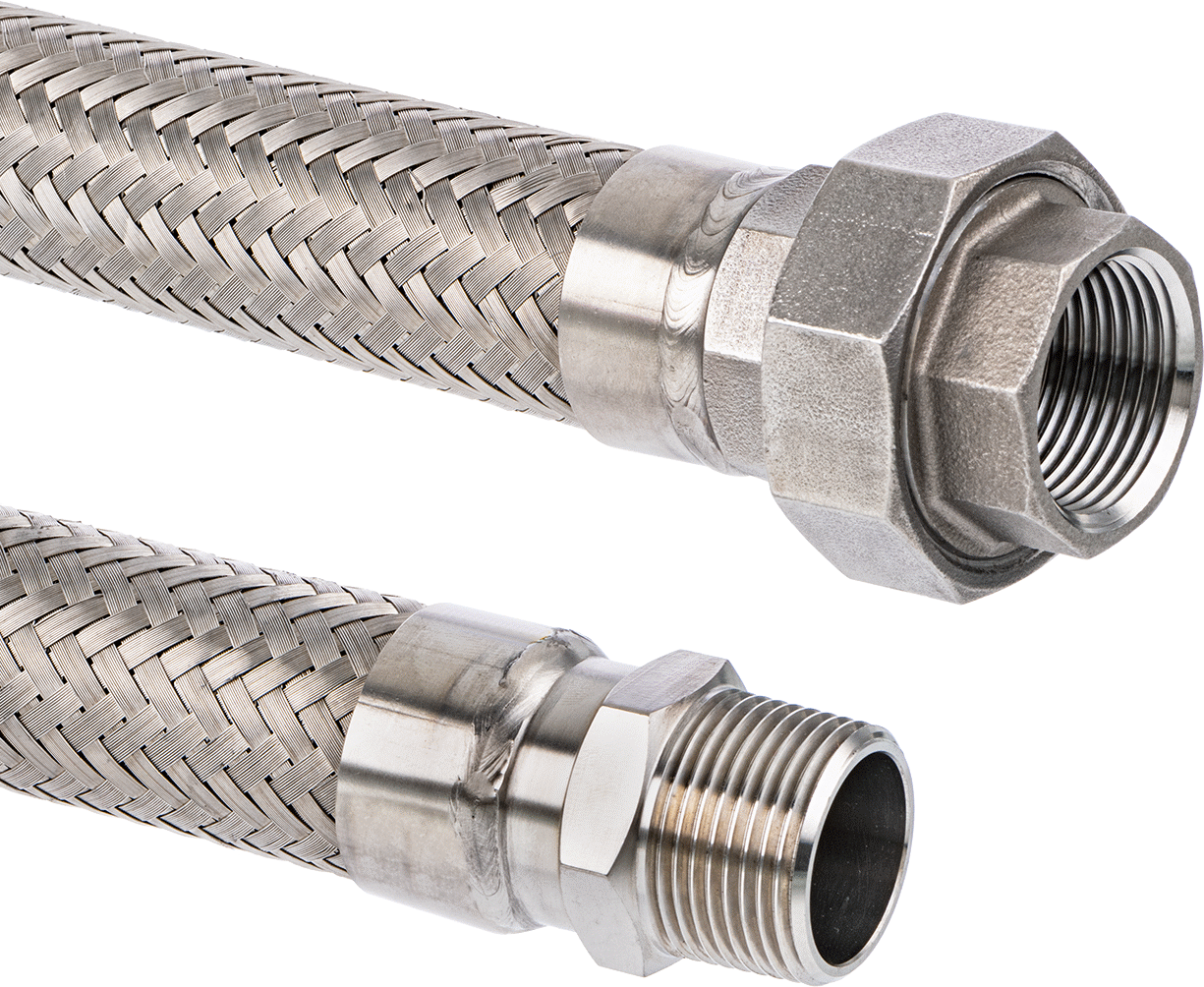

 | — | 1 | Dişi, Erkek | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | Dişli | Boru | 1" | Union | 1,200° F | 7 116" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 1 58" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 5301T65 |
| — | 1 14 | Dişi, Erkek | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | Dişli | Boru | 1 14" | Union | 1,200° F | 7 78" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 1 78" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 54905K38 |

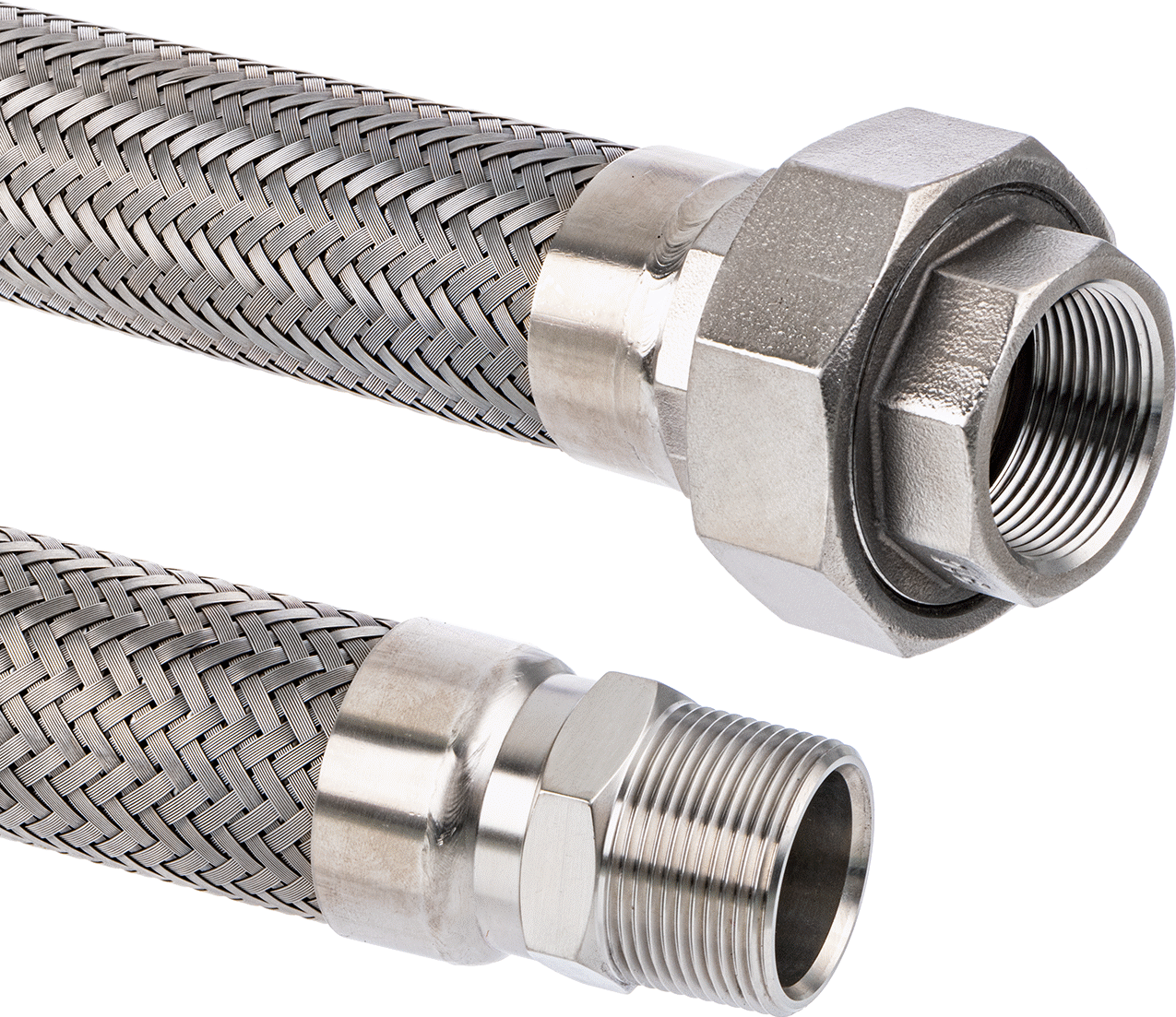

 | — | 1 14 | Dişi, Erkek | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | Dişli | Boru | 1 14" | Union | 1,200° F | 7 78" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 1 78" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 5301T66 |
| — | 1 12 | Dişi, Erkek | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | Dişli | Boru | 1 12" | Union | 1,200° F | 8 1116" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 2 14" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 54905K52 |

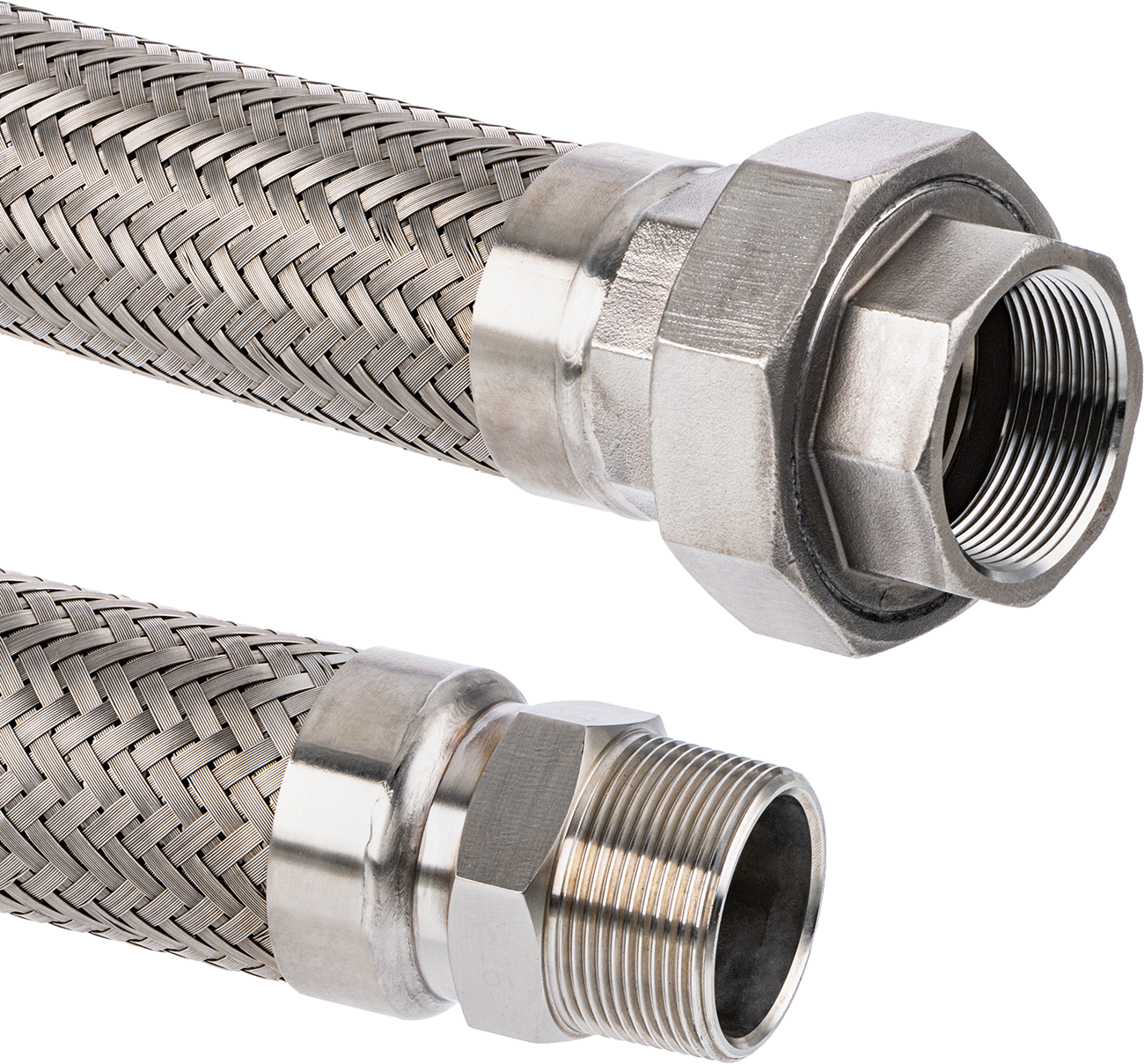

 | — | 1 12 | Dişi, Erkek | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | Dişli | Boru | 1 12" | Union | 1,200° F | 8 1116" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 2 14" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 5301T67 |
| — | 2 | Dişi, Erkek | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | Dişli | Boru | 2" | Union | 1,200° F | 10 516" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 2 34" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 54905K54 |
 | — | 2 | Dişi, Erkek | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | Dişli | Boru | 2" | Union | 1,200° F | 10 516" | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 2 34" | -325° F | Örgülü | 29 in. Hg @ 72° F | Oluklu | 5301T68 |
