Dişli Bağlantı Parçalı Aşırı Sıcaklık Hava ve Buhar Hortumu
16 ürün
Örgülü paslanmaz çelik yapı, bu hortuma orta derecede esneklik kazandırır ve onu aşırı sıcaklıkların yanı sıra titreşime de dayanacak kadar sağlam hale getirir.
| Görsel | Fiyat | Boru Çapı | Cins | Malzeme | Diş Tipi | Bağlantı Elemanı Malzemesi | Birlikte Kullanım | Bağlantı Elemanı Bağlantısı | Bağlanır | ID | Bağlantı Tipi | Maksimum Sıcaklık | Sıcaklıktaki Maksimum Basınç | Örgü Malzemesi | Dış Çap | Minimum Sıcaklık | İç Doku | Dış Takviye | Sıcaklıkta Maksimum Vakum | Dönüş Yarıçapı | Parça No |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dişli Bağlantı Parçalı Aşırı Sıcaklık Hava ve Buhar Hortumu | |||||||||||||||||||||

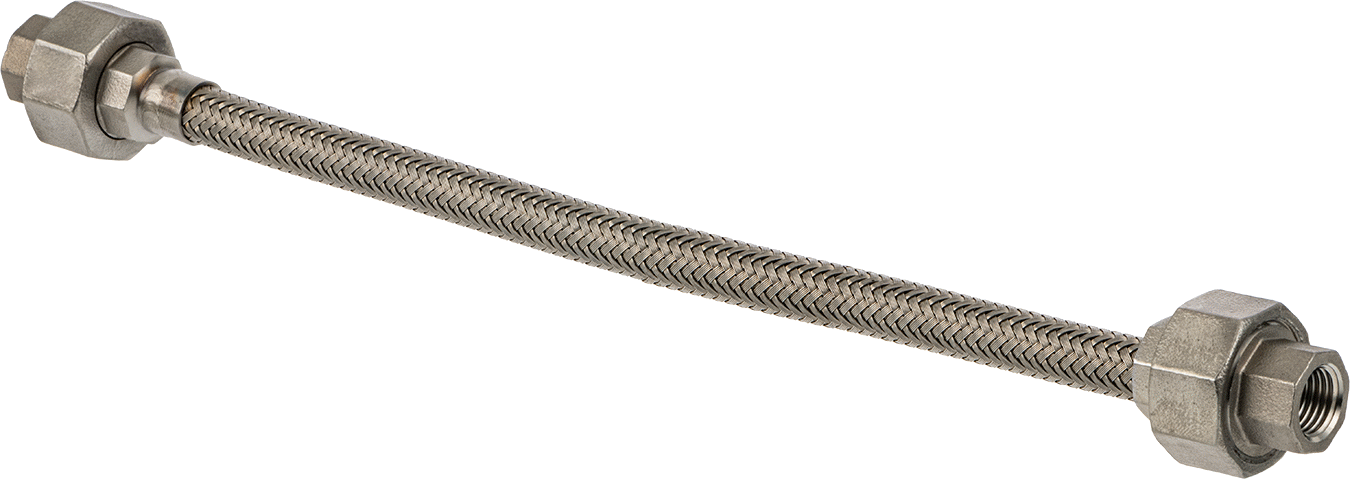

 | — | 14 | Dişi | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 14" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 12" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 4 12" | 5793T12 |

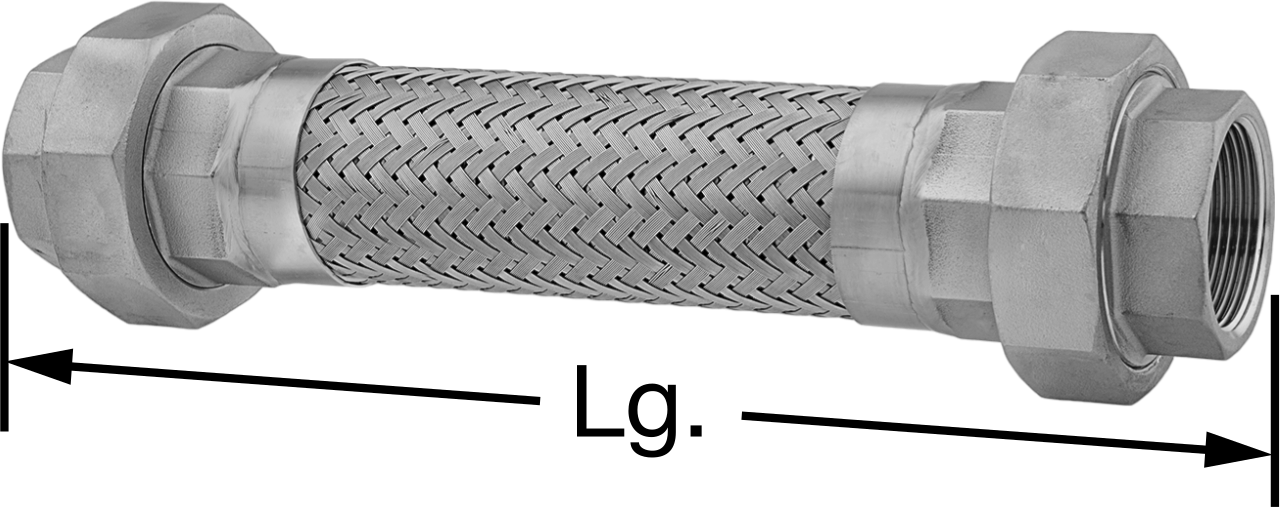

 | — | 14 | Dişi | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 14" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 12" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 4 12" | 5676T22 |

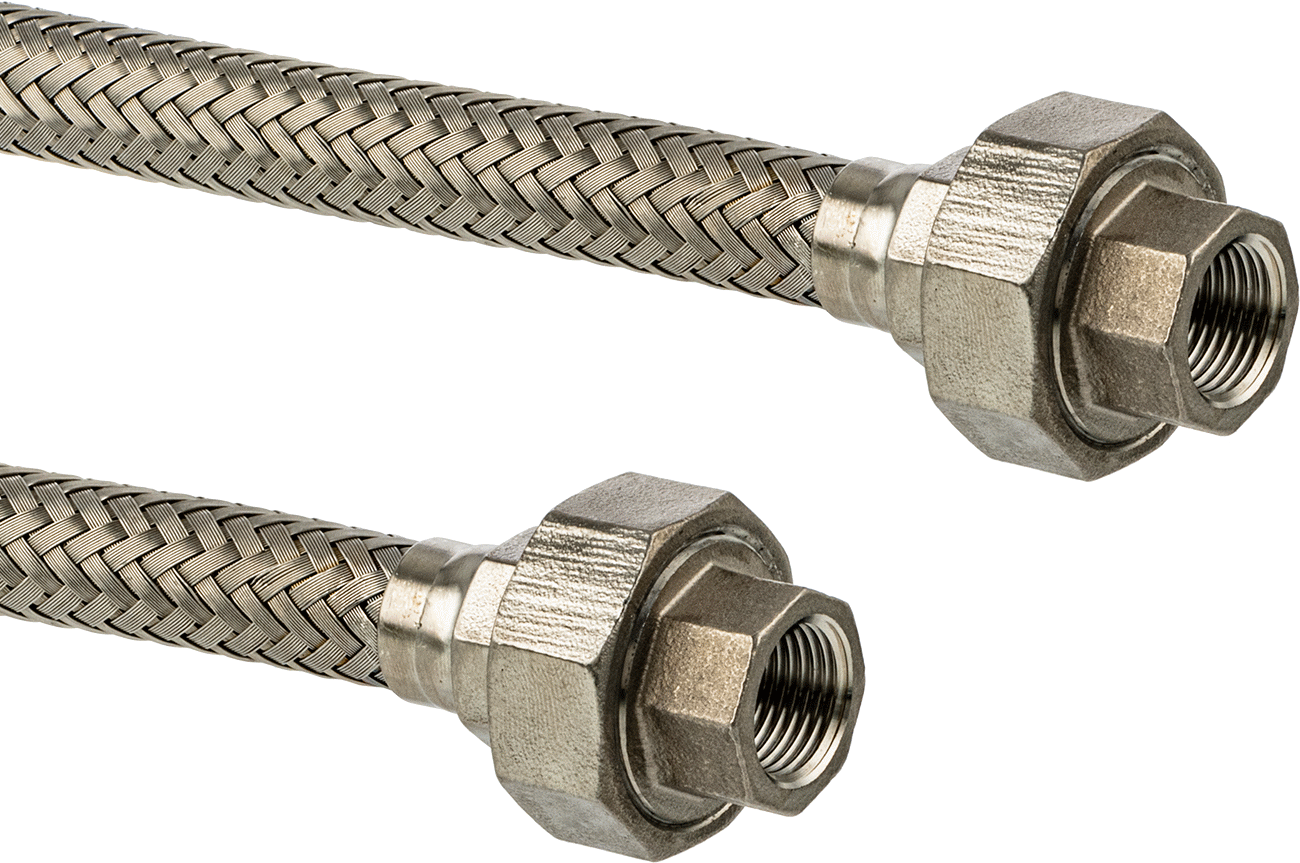

 | — | 38 | Dişi | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 38" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 34" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 5" | 5793T14 |
| — | 38 | Dişi | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 38" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 34" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 5" | 5676T24 |
 | — | 12 | Dişi | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 12" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 78" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 5 12" | 5793T16 |
| — | 12 | Dişi | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 12" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 78" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 5 12" | 5676T26 |

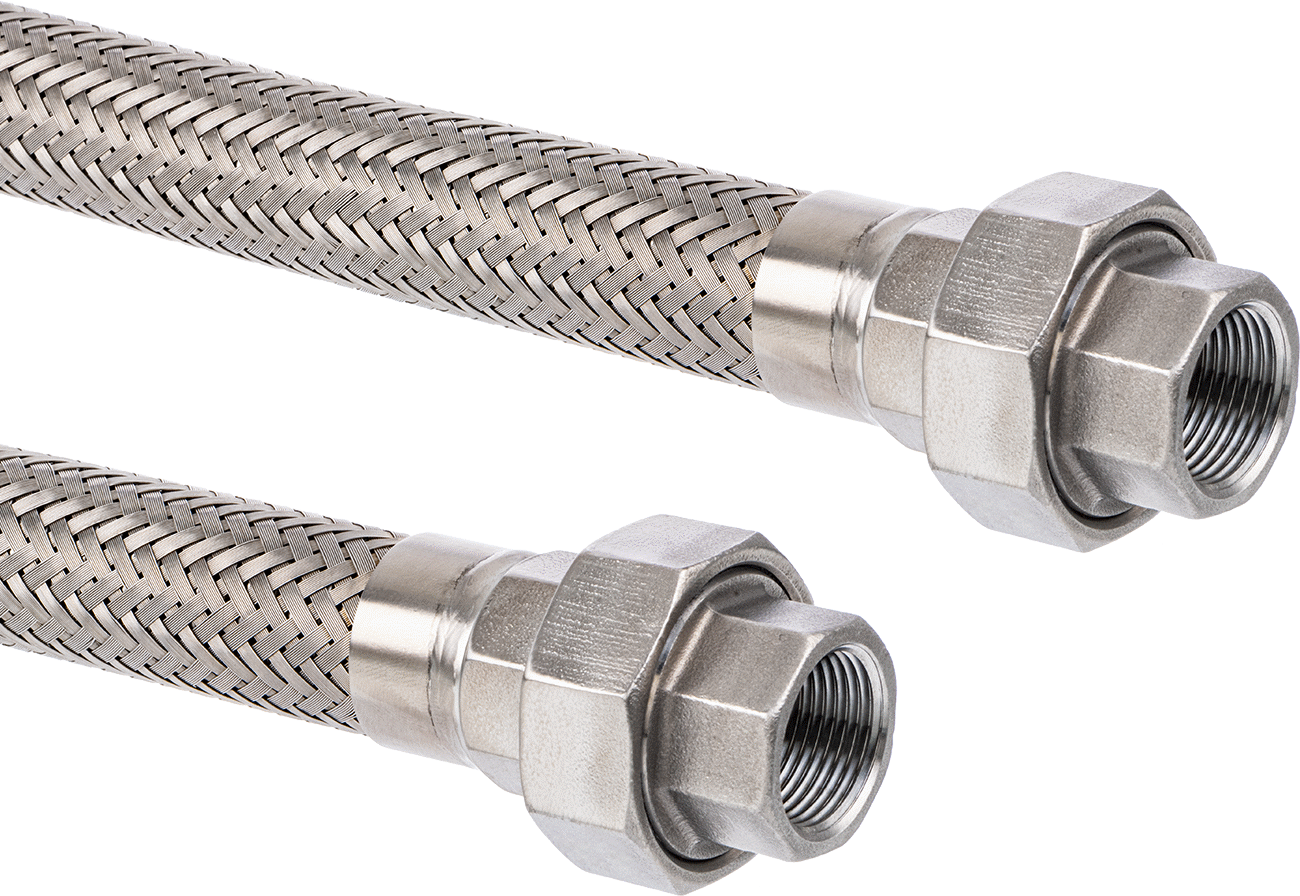

 | — | 34 | Dişi | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 34" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 1 14" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 8" | 5793T18 |
| — | 34 | Dişi | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 34" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 1 14" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 8" | 5676T28 |

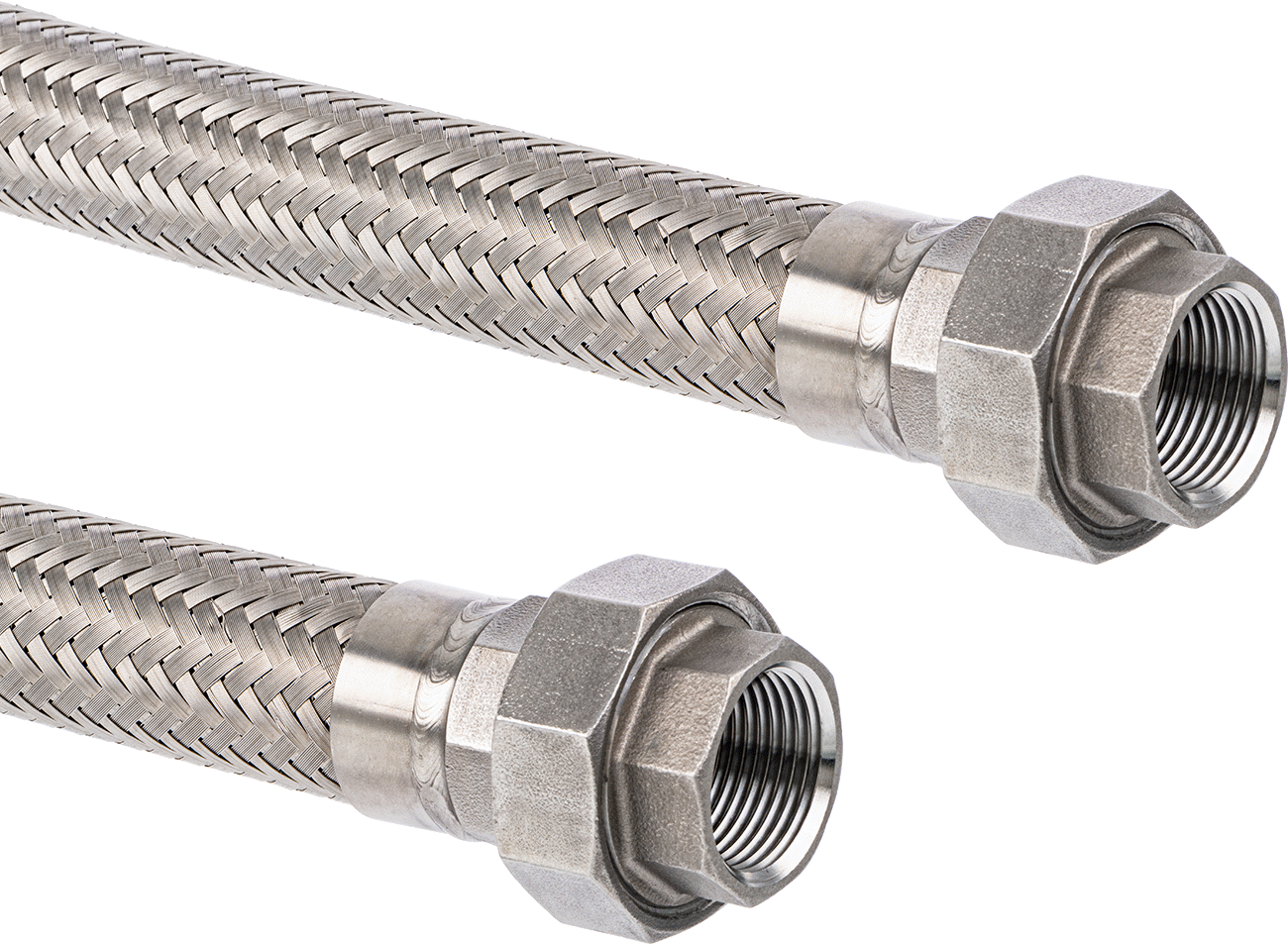

 | — | 1 | Dişi | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 1" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 1 58" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 9" | 5793T22 |
| — | 1 | Dişi | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 1" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 1 58" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 9" | 5676T38 |

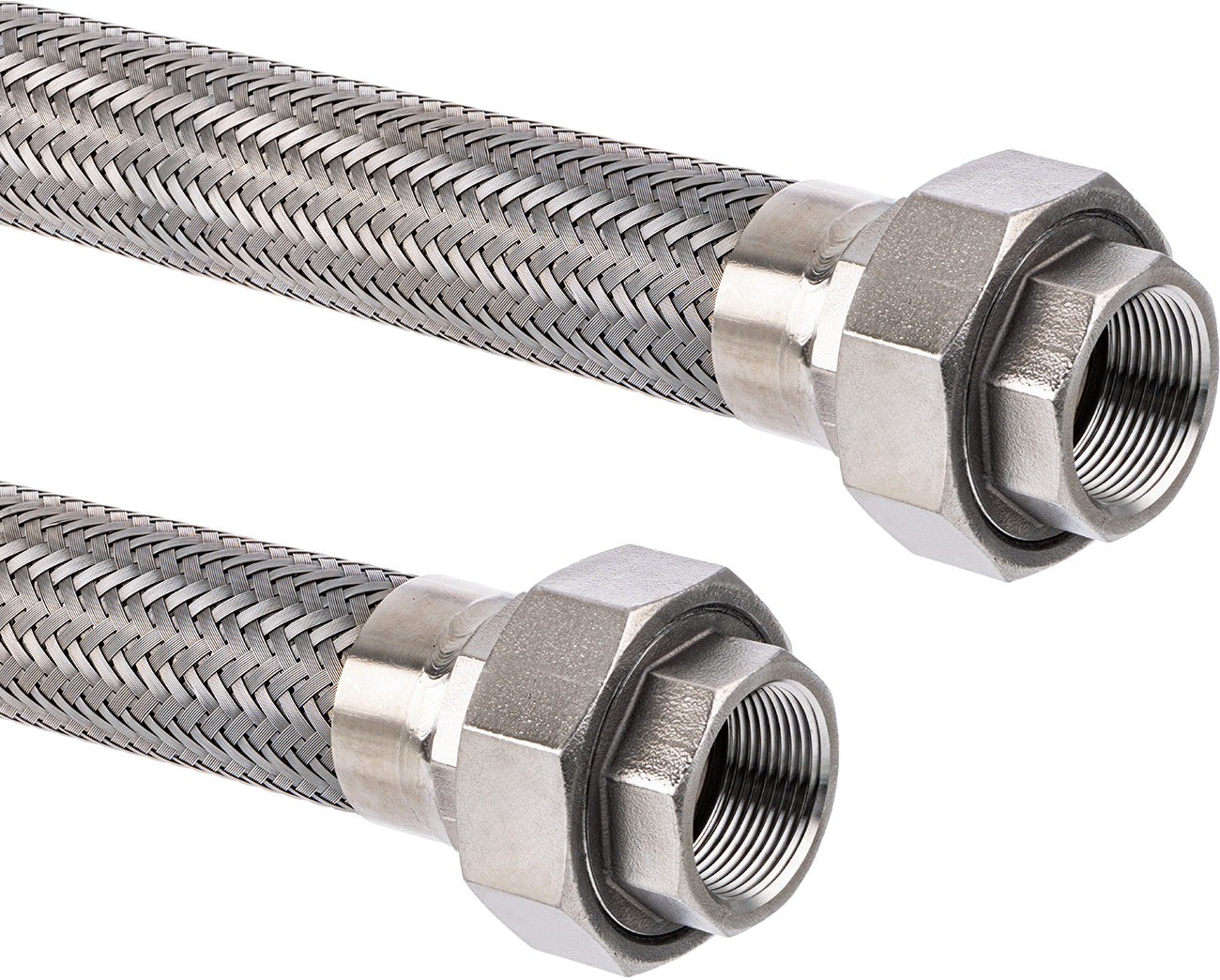

 | — | 1 14 | Dişi | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 1 14" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 1 78" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 10" | 5793T24 |
| — | 1 14 | Dişi | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 1 14" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 1 78" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 10" | 5676T46 |

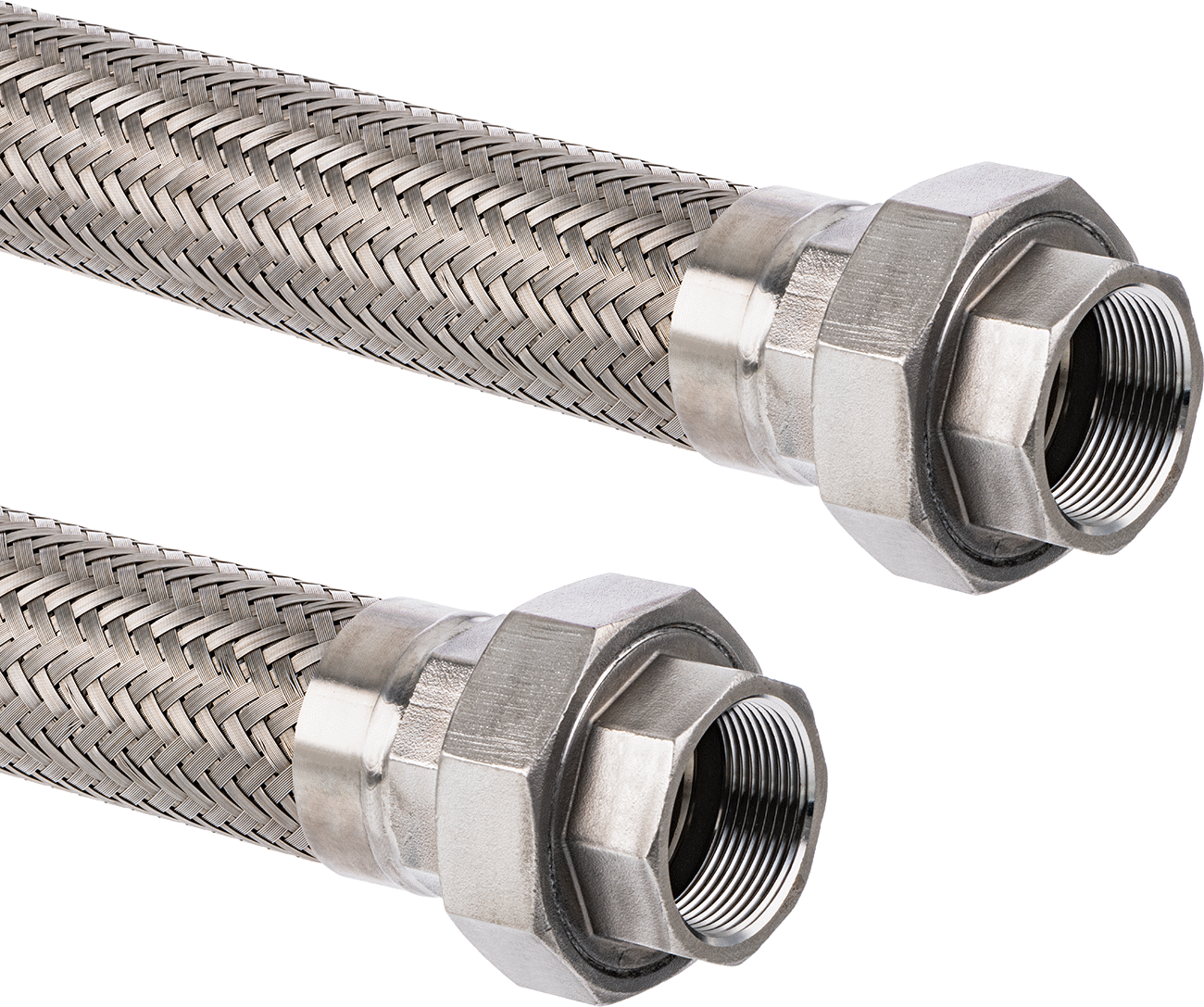

 | — | 1 12 | Dişi | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 1 12" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 2 14" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 11" | 5793T26 |
| — | 1 12 | Dişi | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 1 12" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 2 14" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 11" | 5676T48 |

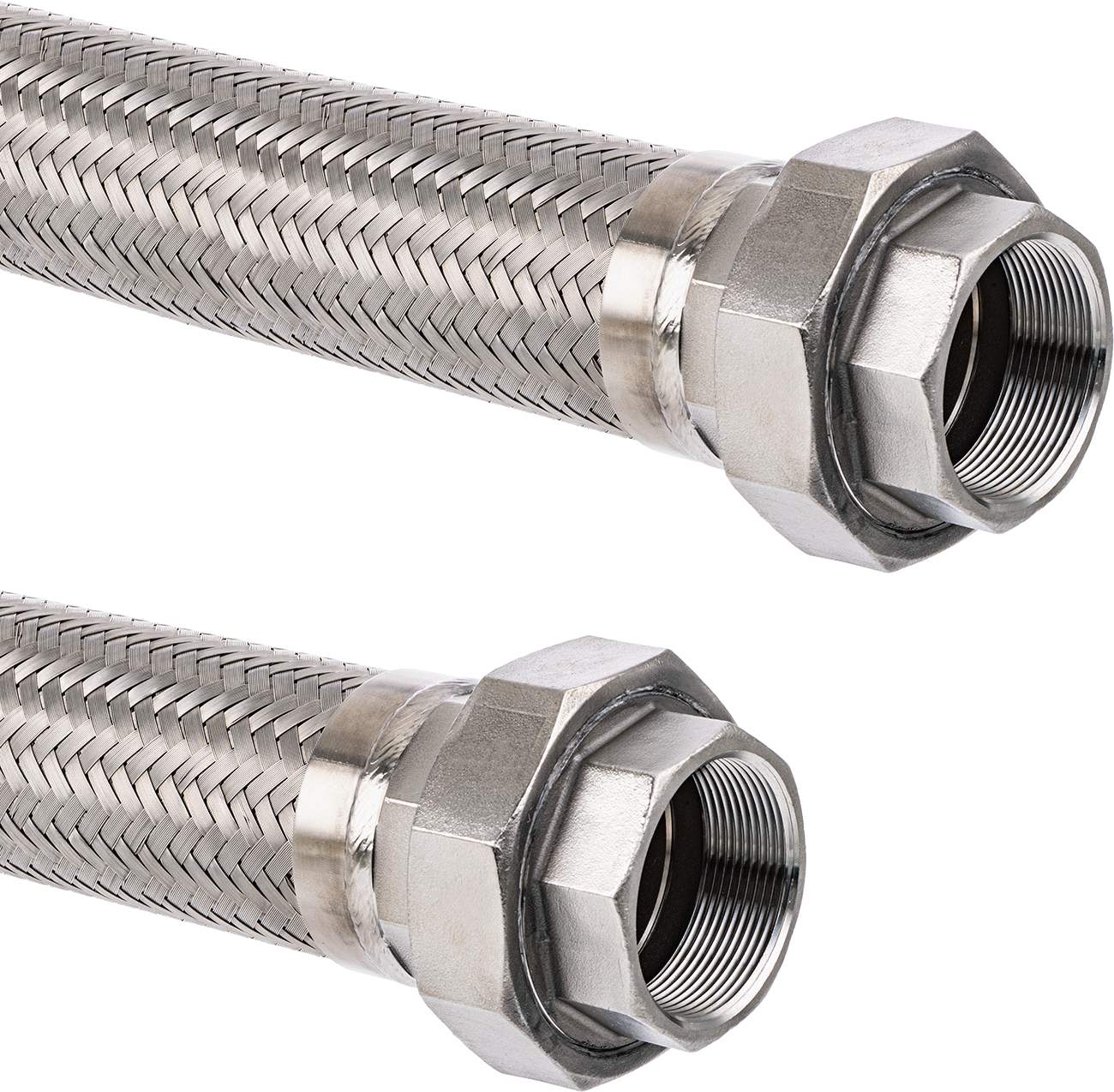

 | — | 2 | Dişi | 304 Stainless Steel, 316 Stainless Steel, Stainless Steel | NPT | 316 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 2" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 2 34" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 13" | 5793T28 |
| — | 2 | Dişi | 304 Stainless Steel, 321 Stainless Steel, Stainless Steel | NPT | 304 Stainless Steel, Stainless Steel | Acetone, Air, Alcohol, Ammonia, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Liquid Propane, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Propane, Sodium Hydroxide (Caustic Soda), Steam, Toluene (Methylbenzene), Vegetable Oil, Xylene | Dişli | Boru | 2" | Union | 1,200° F | 300 psi @ 72° F | 304 Stainless Steel, Stainless Steel | 2 34" | -325° F | Oluklu | Örgülü | 29 in. Hg @ 72° F | 13" | 5676T56 |
