Temizlenmiş ve Torbalı Kimyasallar için Metal Dikenli Hortum Bağlantı Parçaları
16 ürün
Bu metal bağlantı parçalarının her biri, yüksek düzeyde temizlik gerektiren alanlarda kontaminasyonu önlemek için çift poşetlenmiştir. Oksijen hizmetinde kullanılacak kadar temizdirler. 316 paslanmaz çelikten üretildikleri için, sert kimyasallarla tekrarlanan temizliklerden dolayı korozyona uğramazlar. Bunlara hortum nipelleri de denir. Bunları bağlamak için, dikenli ucu plastik veya kauçuk hortuma kaydırın ve bir kelepçe ile sabitleyin.
| Görsel | Fiyat | Malzeme | Hortum İç Çapı | Boru Çapı | Diş Tipi | Birlikte Kullanım | Sıcaklıktaki Maksimum Basınç | Cins | Şekil | Bağlantı Elemanı Bağlantısı | Bağlanır | Uzunluk | Bağlantı Tipi | Çivili Uç Sayısı | Diş Stili | Bağlantı Tipi | Hortum Malzemesi | ID | Maksimum Sıcaklık | Minimum Sıcaklık | Sıcaklıkta Maksimum Vakum | Parça No |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Temizlenmiş ve Torbalı Kimyasallar için Metal Dikenli Hortum Bağlantı Parçaları | ||||||||||||||||||||||

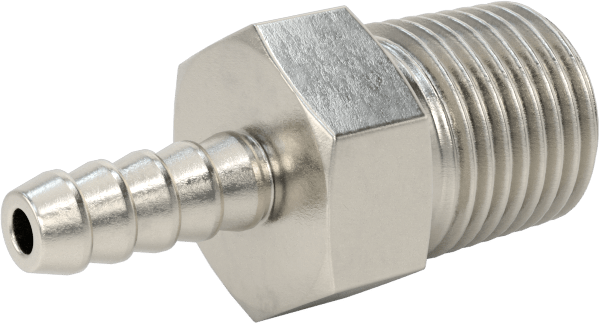

 | ₺8.276 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 18" | 18 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 1" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 18" | 450° F | -100° F | Derecelendirilmemiştir | 5743N17 |

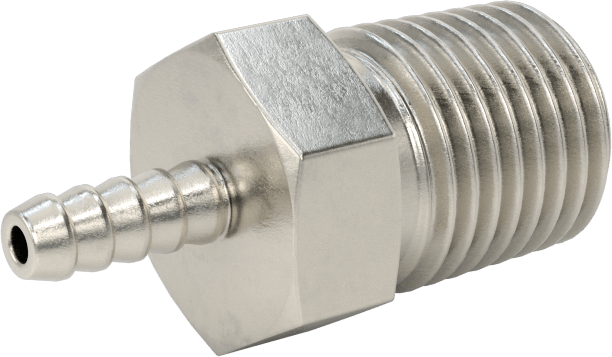

 | ₺7.794 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 18" | 14 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 1 732" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 18" | 450° F | -100° F | Derecelendirilmemiştir | 5743N16 |

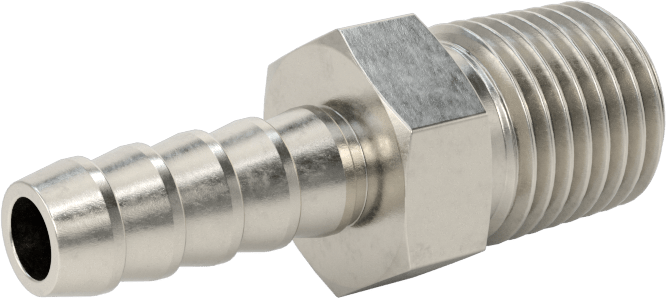

 | ₺7.111 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 14" | 14 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 1 1932" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 14" | 450° F | -100° F | Derecelendirilmemiştir | 5743N11 |

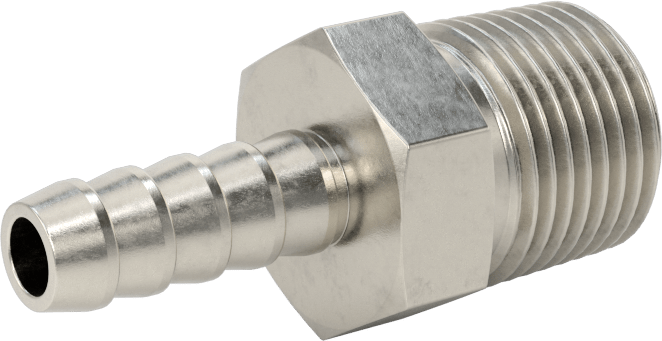

 | ₺14.046 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 14" | 38 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 1 58" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 14" | 450° F | -100° F | Derecelendirilmemiştir | 5743N25 |

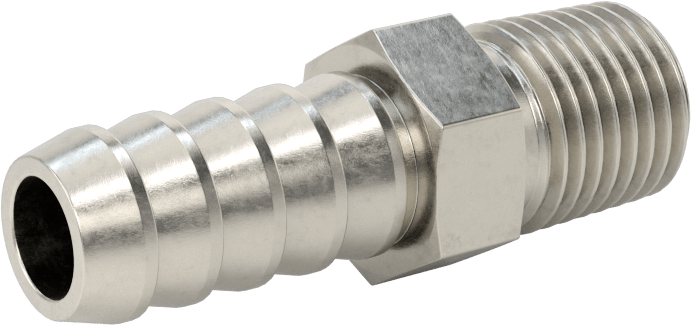

 | ₺7.635 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 38" | 14 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 1 4564" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 38" | 450° F | -100° F | Derecelendirilmemiştir | 5743N15 |

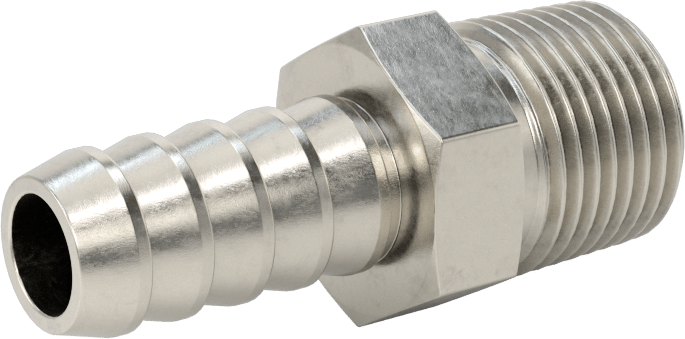

 | ₺7.353 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 38" | 38 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 1 2332" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 38" | 450° F | -100° F | Derecelendirilmemiştir | 5743N14 |

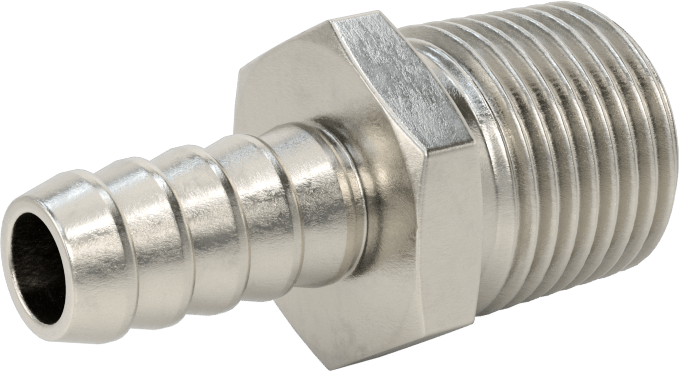

 | ₺9.839 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 38" | 12 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 1 2732" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 38" | 450° F | -100° F | Derecelendirilmemiştir | 5743N18 |

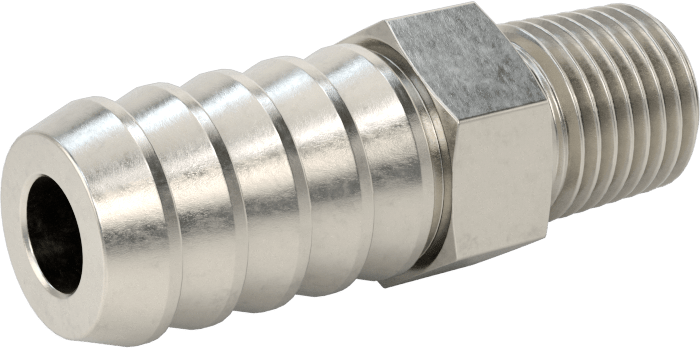

 | ₺7.200 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 12" | 14 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 1 1316" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 12" | 450° F | -100° F | Derecelendirilmemiştir | 5743N13 |

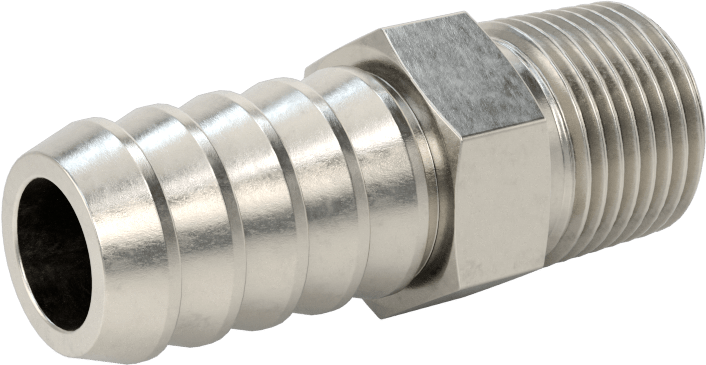

 | ₺7.111 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 12" | 38 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 1 1316" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 12" | 450° F | -100° F | Derecelendirilmemiştir | 5743N12 |

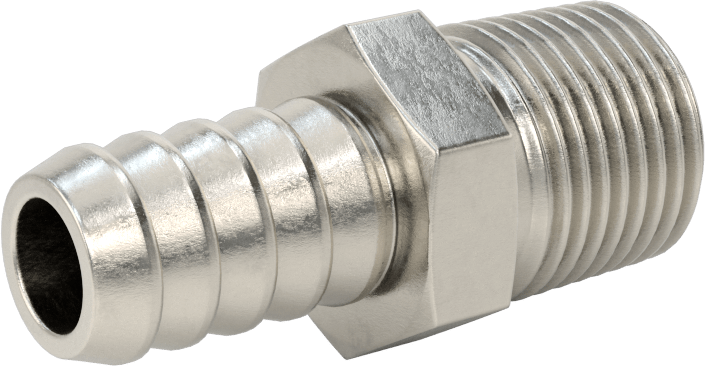

 | ₺9.839 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 12" | 12 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 2" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 12" | 450° F | -100° F | Derecelendirilmemiştir | 5743N19 |

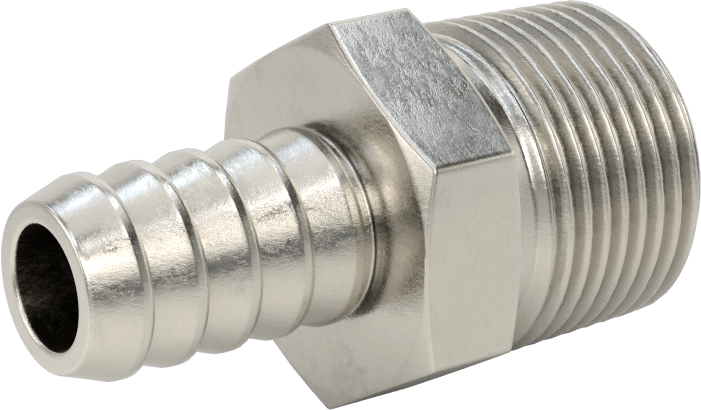

 | ₺14.030 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 12" | 34 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 2 364" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 12" | 450° F | -100° F | Derecelendirilmemiştir | 5743N23 |

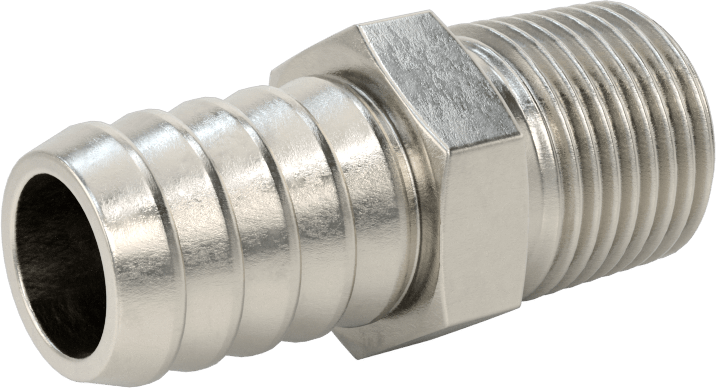

 | ₺12.010 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 58" | 12 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 2" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 58" | 450° F | -100° F | Derecelendirilmemiştir | 5743N22 |

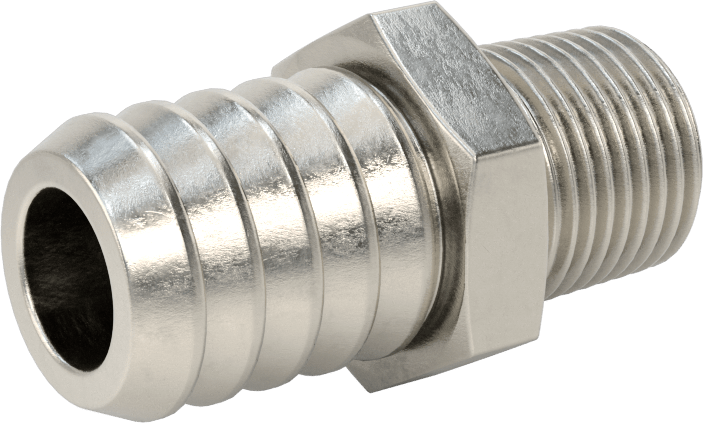

 | ₺10.769 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 34" | 12 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 2 332" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 34" | 450° F | -100° F | Derecelendirilmemiştir | 5743N21 |

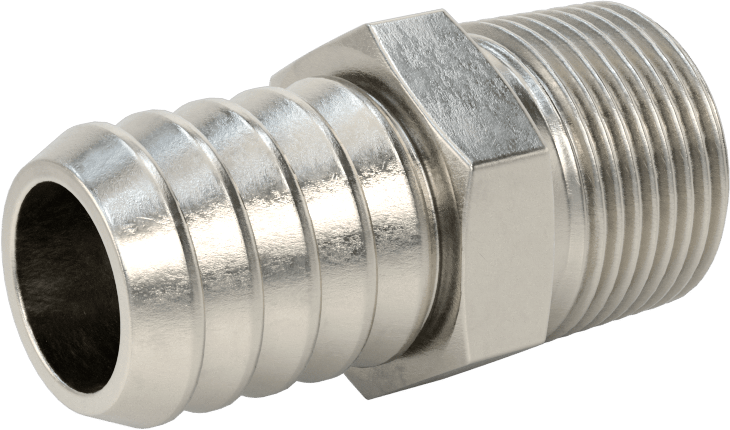

 | ₺14.185 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 34" | 34 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 2 18" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 34" | 450° F | -100° F | Derecelendirilmemiştir | 5743N26 |

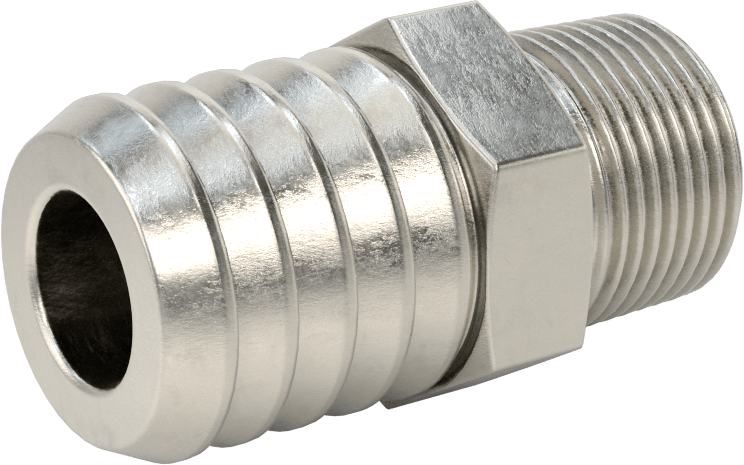

 | ₺13.634 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 1" | 34 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 2 516" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 1" | 450° F | -100° F | Derecelendirilmemiştir | 5743N24 |

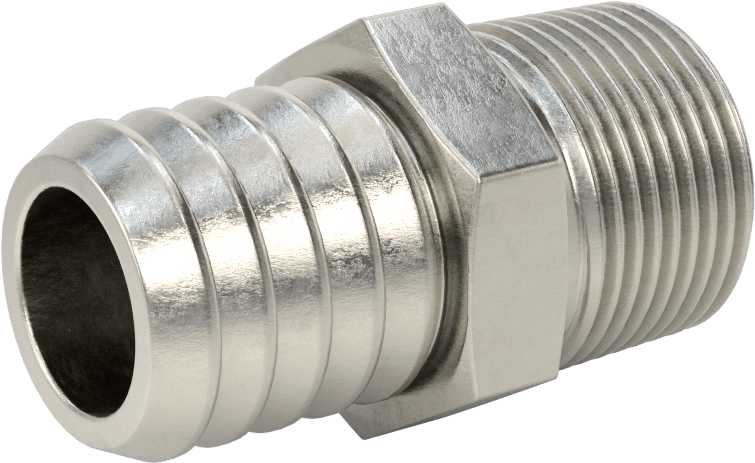

 | ₺19.496 | 316 Stainless Steel, Plastic, Rubber, Stainless Steel | 1" | 1 | NPT | Acetone, Acid, Alcohol, Butyl Alcohol, Citric Acid, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Oil, Phosphoric Acid, Sodium Hydroxide (Caustic Soda) | 400 psi @ 72° F | Erkek | Düz | Barbed, Clamp-On Barbed, Threaded | Hortum, Boru | 2 12" | Band-and-Buckle Clamp, Bolt Clamp, Worm-Drive Clamp | Çoklu | Standart | Adaptör | Plastik, Kauçuk | 1" | 450° F | -100° F | Derecelendirilmemiştir | 5743N27 |
