Dişi Dişli Bağlantı Parçalarına Sahip Yüksek Basınçlı Örgülü Kimyasal Hortum
12 ürün
Bu ağır hizmet tipi hortum, diğer kimyasal hortumlara göre daha fazla kimyasal direnç ve daha iyi mukavemet sağlamak için paslanmaz çelik örgülü PTFE'den yapılmıştır.
| Görsel | Fiyat | Diş Boyutu | Bağlantı Elemanı Bağlantısı | Cins | Bağlantı Elemanı Malzemesi | Malzeme | Diş Tipi | ID | Dış Çap | Sıcaklıktaki Maksimum Basınç | Birlikte Kullanım | Maksimum Sıcaklık | Örgü Malzemesi | İç Doku | Bağlanır | Dış Takviye | Dönme Bağlantı Elemanı Tipi | Dönüş Yarıçapı | Sıcaklıkta Maksimum Vakum | Dış Mekan Kullanımı için | Parça No |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dişi Dişli Bağlantı Parçalarına Sahip Yüksek Basınçlı Örgülü Kimyasal Hortum | |||||||||||||||||||||

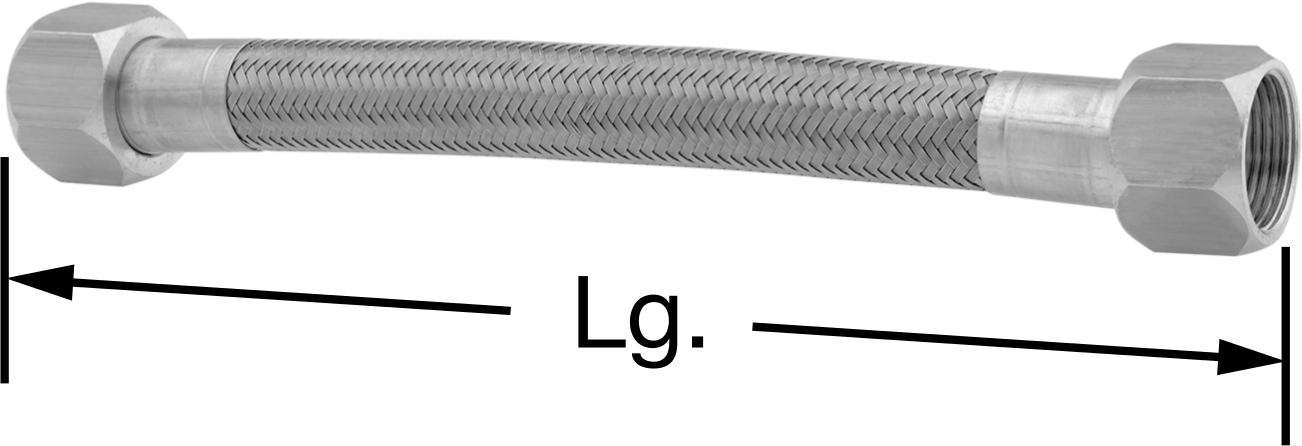

 | — | 716"-20 | 37° Flared, Flared | Dişi | 303 Stainless Steel, Stainless Steel | 303 Stainless Steel, 304 Stainless Steel, Plastic, PTFE, Stainless Steel | UNF | 316" | 516" | 3,000 psi @ 72° F | Acetone, Alcohol, Ammonia, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Xylene | 450° F | 304 Stainless Steel, Stainless Steel | Pürüzsüz | Boru | Örgülü | Sıkılana Kadar Döner | 2" | 28 in. Hg @ 72° F | Evet | 4552K301 |
 | — | 716"-20 | 37° Flared, Flared | Dişi | Pirinç | 304 Stainless Steel, Brass, Plastic, PTFE, Stainless Steel | UNF | 316" | 516" | 3,000 psi @ 72° F | Acetone, Alcohol, Ethanol, Isopropyl Alcohol, Methyl Ethyl Ketone (MEK), Mineral Oil, Toluene (Methylbenzene), Xylene | 450° F | 304 Stainless Steel, Stainless Steel | Pürüzsüz | Boru | Örgülü | Sıkılana Kadar Döner | 2" | 28 in. Hg @ 72° F | Evet | 4468K811 |
| — | 12"-20 | 37° Flared, Flared | Dişi | 303 Stainless Steel, Stainless Steel | 303 Stainless Steel, 304 Stainless Steel, Plastic, PTFE, Stainless Steel | UNF | 14" | 38" | 3,000 psi @ 72° F | Acetone, Alcohol, Ammonia, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Xylene | 450° F | 304 Stainless Steel, Stainless Steel | Pürüzsüz | Boru | Örgülü | Sıkılana Kadar Döner | 3" | 28 in. Hg @ 72° F | Evet | 4552K302 |

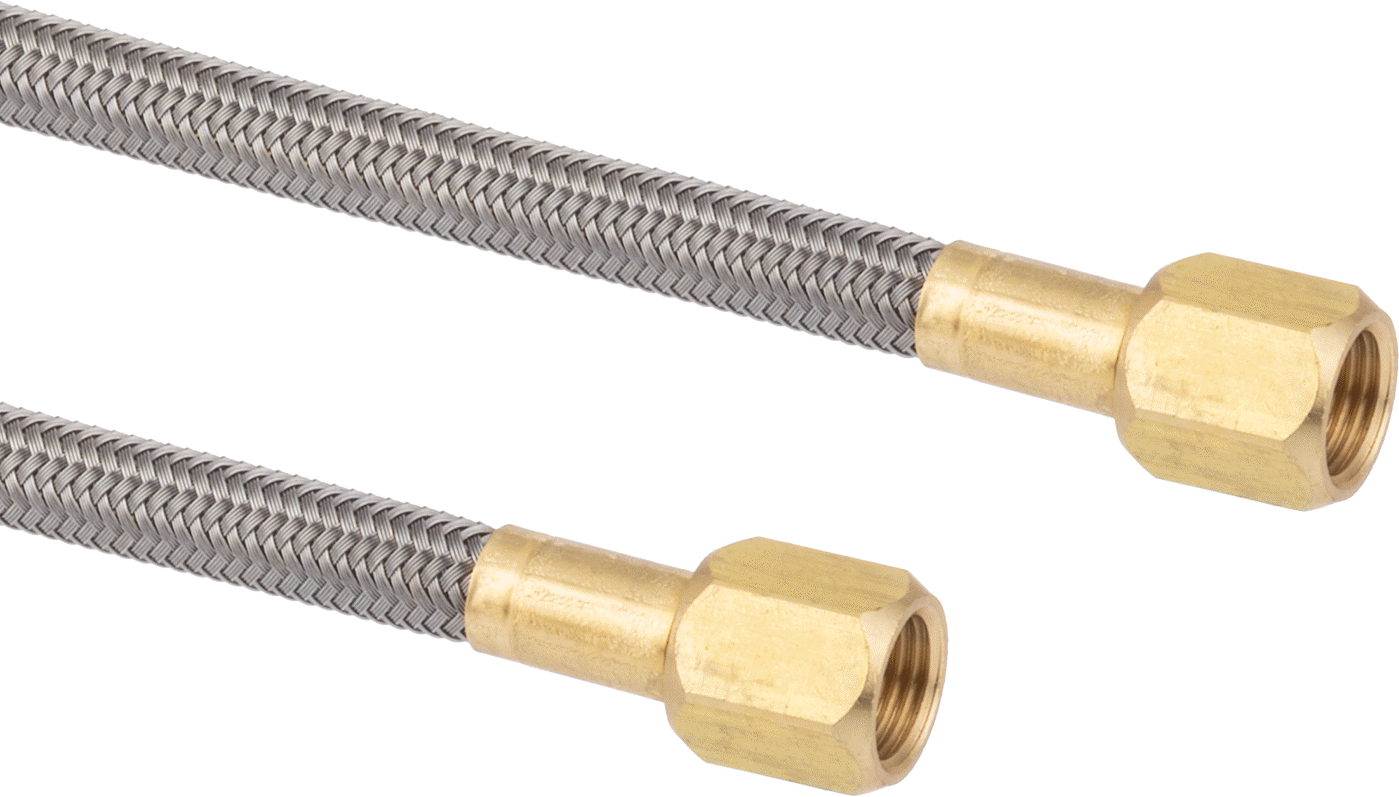

 | — | 12"-20 | 37° Flared, Flared | Dişi | Pirinç | 304 Stainless Steel, Brass, Plastic, PTFE, Stainless Steel | UNF | 14" | 38" | 3,000 psi @ 72° F | Acetone, Alcohol, Ethanol, Isopropyl Alcohol, Methyl Ethyl Ketone (MEK), Mineral Oil, Toluene (Methylbenzene), Xylene | 450° F | 304 Stainless Steel, Stainless Steel | Pürüzsüz | Boru | Örgülü | Sıkılana Kadar Döner | 3" | 28 in. Hg @ 72° F | Evet | 4468K812 |
| — | 916"-18 | 37° Flared, Flared | Dişi | 303 Stainless Steel, Stainless Steel | 303 Stainless Steel, 304 Stainless Steel, Plastic, PTFE, Stainless Steel | UNF | 516" | 716" | 2,500 psi @ 72° F | Acetone, Alcohol, Ammonia, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Xylene | 450° F | 304 Stainless Steel, Stainless Steel | Pürüzsüz | Boru | Örgülü | Sıkılana Kadar Döner | 4" | 28 in. Hg @ 72° F | Evet | 4552K303 |

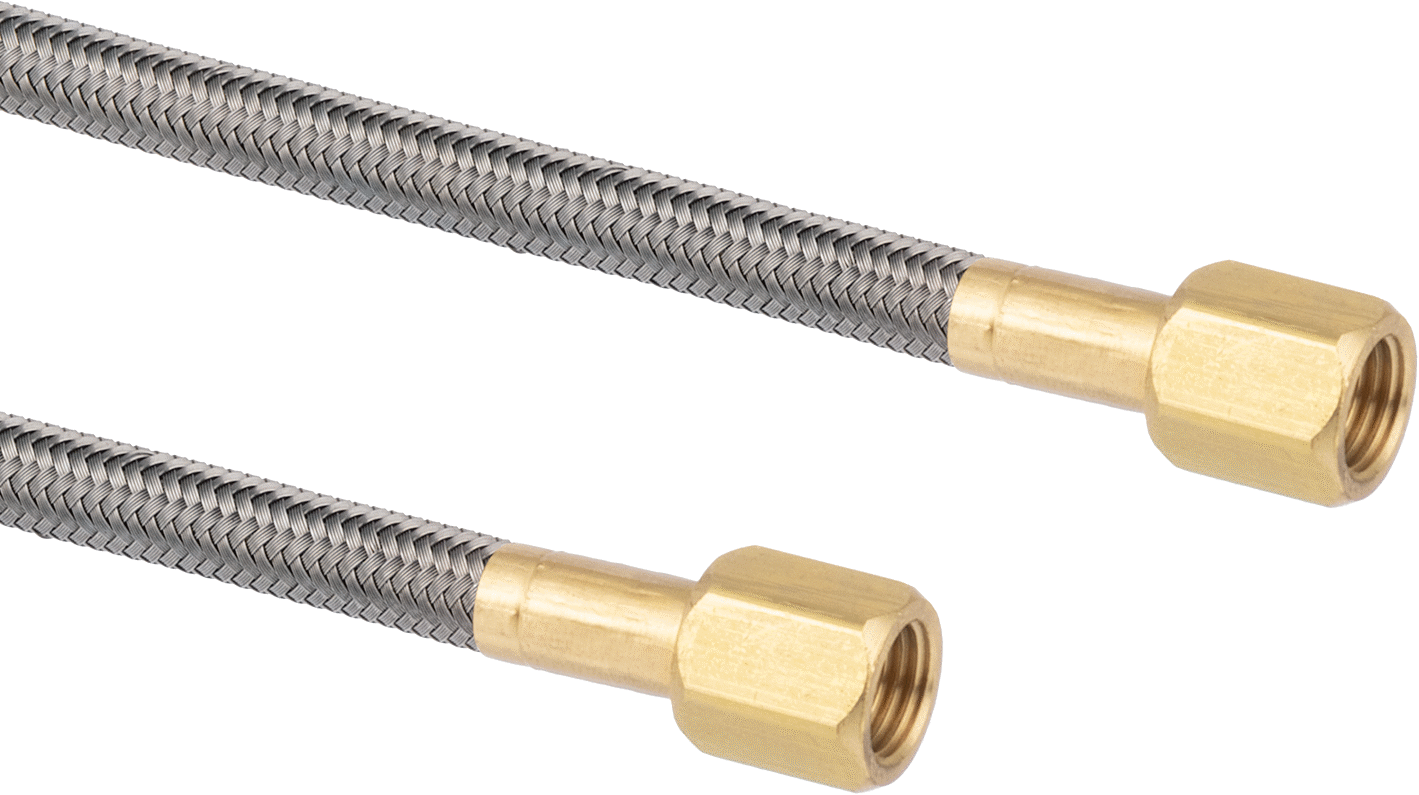

 | — | 916"-18 | 37° Flared, Flared | Dişi | Pirinç | 304 Stainless Steel, Brass, Plastic, PTFE, Stainless Steel | UNF | 516" | 716" | 2,500 psi @ 72° F | Acetone, Alcohol, Ethanol, Isopropyl Alcohol, Methyl Ethyl Ketone (MEK), Mineral Oil, Toluene (Methylbenzene), Xylene | 450° F | 304 Stainless Steel, Stainless Steel | Pürüzsüz | Boru | Örgülü | Sıkılana Kadar Döner | 4" | 28 in. Hg @ 72° F | Evet | 4468K813 |
| — | 78"-14 | 37° Flared, Flared | Dişi | 303 Stainless Steel, Stainless Steel | 303 Stainless Steel, 304 Stainless Steel, Plastic, PTFE, Stainless Steel | UNF | 12" | 58" | 1,500 psi @ 72° F | Acetone, Alcohol, Ammonia, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Xylene | 450° F | 304 Stainless Steel, Stainless Steel | Pürüzsüz | Boru | Örgülü | Sıkılana Kadar Döner | 6 12" | 28 in. Hg @ 72° F | Evet | 4552K304 |
 | — | 78"-14 | 37° Flared, Flared | Dişi | Pirinç | 304 Stainless Steel, Brass, Plastic, PTFE, Stainless Steel | UNF | 12" | 58" | 1,500 psi @ 72° F | Acetone, Alcohol, Ethanol, Isopropyl Alcohol, Methyl Ethyl Ketone (MEK), Mineral Oil, Toluene (Methylbenzene), Xylene | 450° F | 304 Stainless Steel, Stainless Steel | Pürüzsüz | Boru | Örgülü | Sıkılana Kadar Döner | 6 12" | 28 in. Hg @ 72° F | Evet | 4468K814 |
| — | 1 116"-12 | 37° Flared, Flared | Dişi | 303 Stainless Steel, Stainless Steel | 303 Stainless Steel, 304 Stainless Steel, Plastic, PTFE, Stainless Steel | UNF | 58" | 34" | 1,200 psi @ 72° F | Acetone, Alcohol, Ammonia, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Xylene | 450° F | 304 Stainless Steel, Stainless Steel | Pürüzsüz | Boru | Örgülü | Sıkılana Kadar Döner | 7 34" | 20 in. Hg @ 72° F | Evet | 4552K305 |

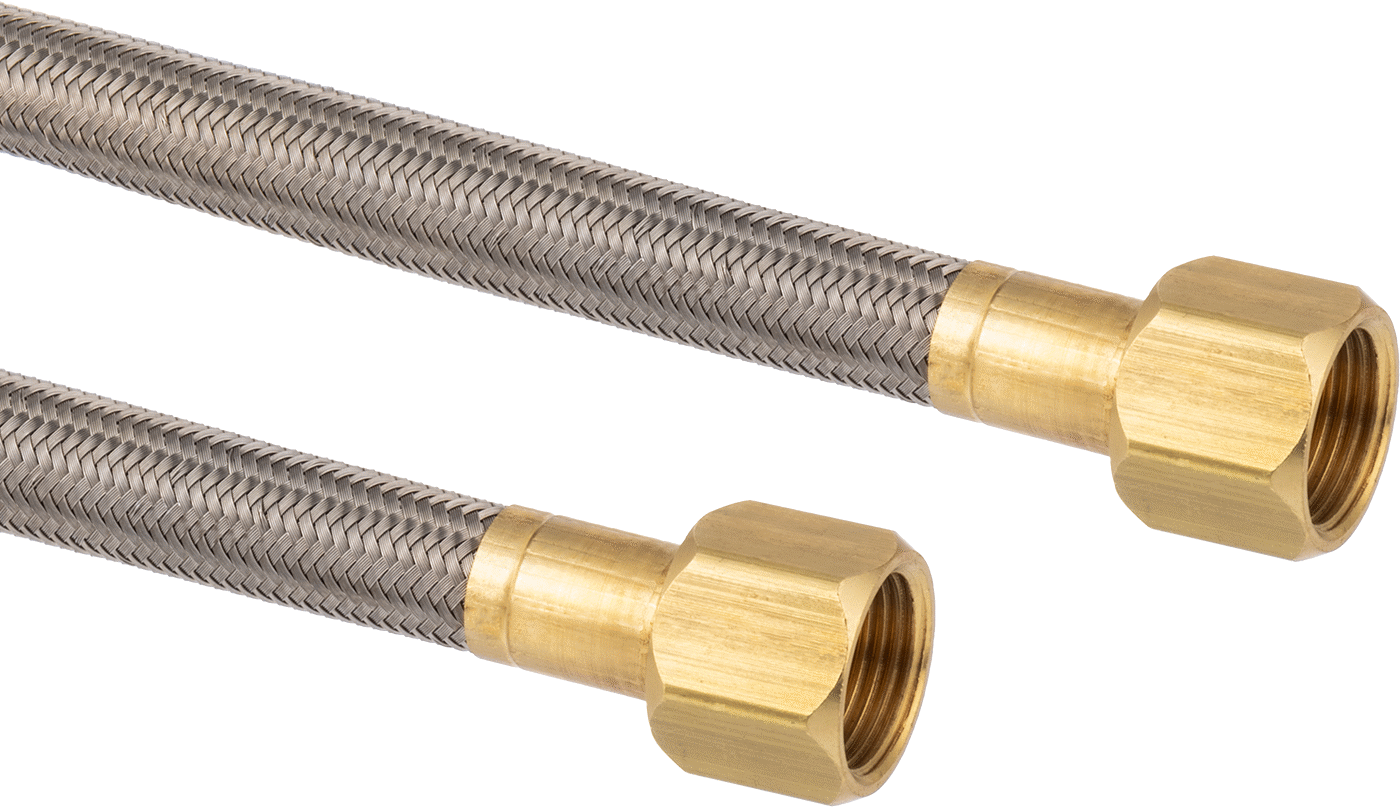

 | — | 1 116"-12 | 37° Flared, Flared | Dişi | Pirinç | 304 Stainless Steel, Brass, Plastic, PTFE, Stainless Steel | UNF | 58" | 34" | 1,200 psi @ 72° F | Acetone, Alcohol, Ethanol, Isopropyl Alcohol, Methyl Ethyl Ketone (MEK), Mineral Oil, Toluene (Methylbenzene), Xylene | 450° F | 304 Stainless Steel, Stainless Steel | Pürüzsüz | Boru | Örgülü | Sıkılana Kadar Döner | 7 34" | 20 in. Hg @ 72° F | Evet | 4468K815 |
| — | 1 516"-12 | 37° Flared, Flared | Dişi | 303 Stainless Steel, Stainless Steel | 303 Stainless Steel, 304 Stainless Steel, Plastic, PTFE, Stainless Steel | UNF | 78" | 1" | 1,000 psi @ 72° F | Acetone, Alcohol, Ammonia, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Xylene | 450° F | 304 Stainless Steel, Stainless Steel | Pürüzsüz | Boru | Örgülü | Sıkılana Kadar Döner | 9" | 14 in. Hg @ 72° F | Evet | 4552K306 |

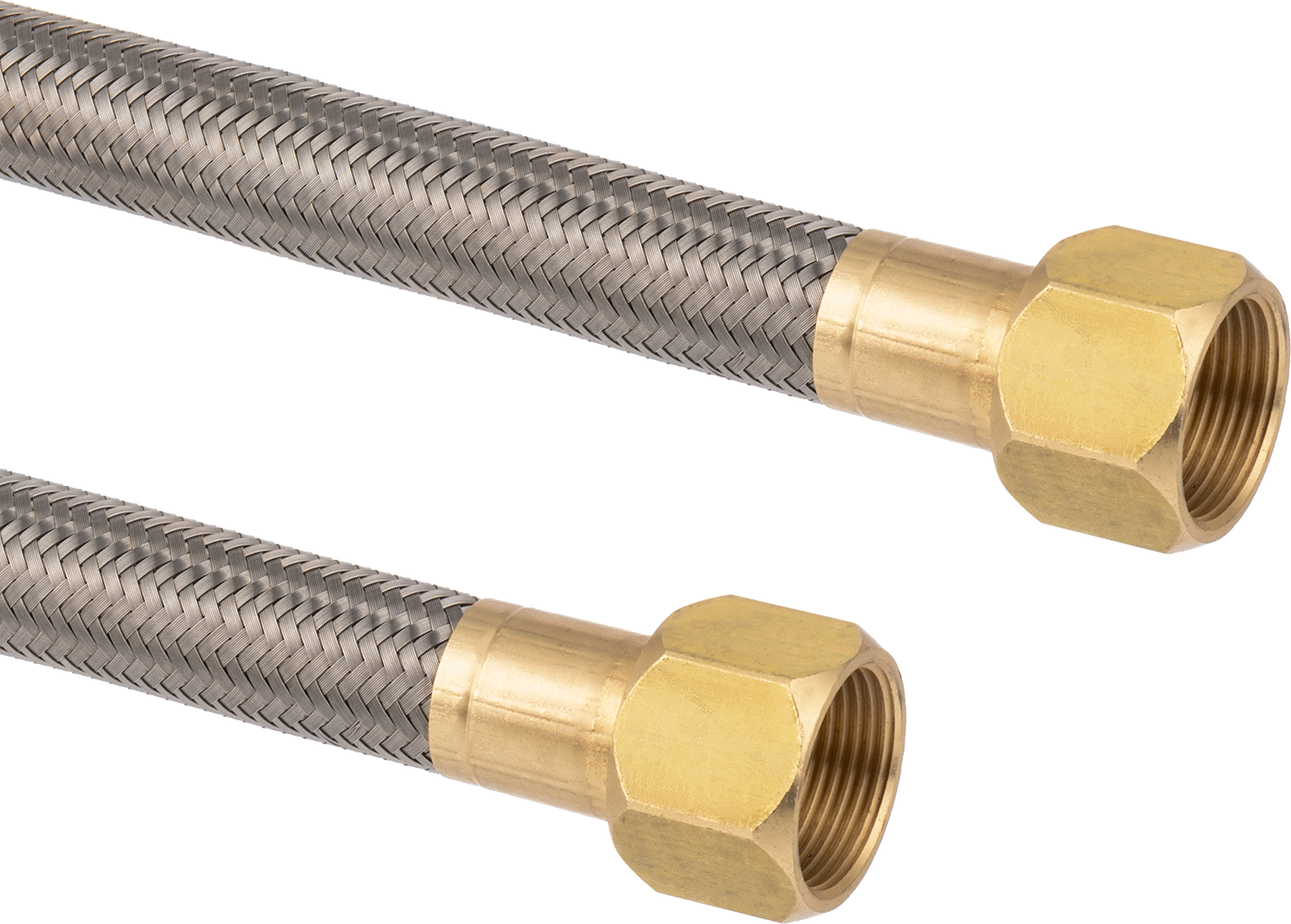

 | — | 1 516"-12 | 37° Flared, Flared | Dişi | Pirinç | 304 Stainless Steel, Brass, Plastic, PTFE, Stainless Steel | UNF | 78" | 1" | 1,000 psi @ 72° F | Acetone, Alcohol, Ethanol, Isopropyl Alcohol, Methyl Ethyl Ketone (MEK), Mineral Oil, Toluene (Methylbenzene), Xylene | 450° F | 304 Stainless Steel, Stainless Steel | Pürüzsüz | Boru | Örgülü | Sıkılana Kadar Döner | 9" | 14 in. Hg @ 72° F | Evet | 4468K816 |
