Kam-ve-Yuva Soket ve Tapa'lı Düşük Basınçlı Kimyasal Hortum
14 ürün
Bağlantı parçalarını birleştirmek için fişi yuvaya takın ve kolları aşağı doğru bastırın. Alüminyum bağlantı parçaları hafiftir ve iyi korozyon direncine sahiptir; 316 paslanmaz çelik bağlantı parçaları ise mükemmel korozyon direncine sahiptir.
| Görsel | Fiyat | Bağlantı Elemanı Bağlantısı | Bağlantı Boyutu | ID | Birlikte Kullanım | Malzeme | Bağlantı Elemanı Malzemesi | Cins | Renk | Kam ve Yiv Bileşeni | Dış Çap | Sıcaklıktaki Maksimum Basınç | İç Takviye | Sıcaklıkta Maksimum Vakum | İç Doku | Bağlanır | Dış Mekan Kullanımı için | Dönüş Yarıçapı | Kapak Malzemesi | Maksimum Sıcaklık | Parça No |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kam-ve-Yuva Soket ve Tapa'lı Düşük Basınçlı Kimyasal Hortum | |||||||||||||||||||||

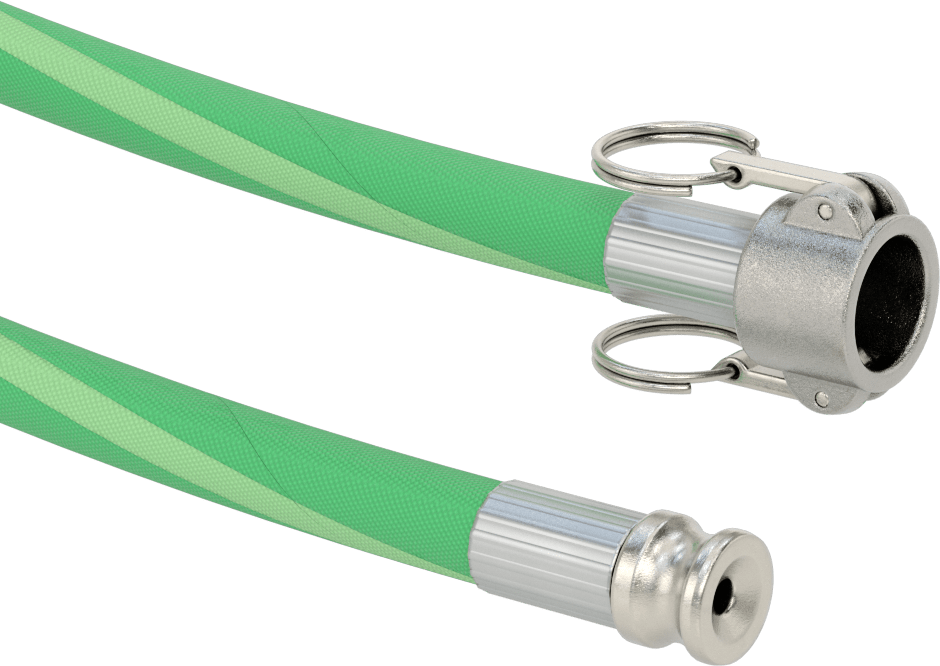

 | — | Kam ve Yiv | 12 | 12" | Acetone, Acid, Alcohol, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Phosphoric Acid, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Xylene | 316 Stainless Steel, EPDM, Plastic, Polyethylene, Rubber, Stainless Steel | 316 Stainless Steel, Stainless Steel | Dişi, Erkek | Green, Light Green | Tapa, Dişli | 1" | 150 psi @ 72° F | Steel Wire, Yarn | 29 in. Hg @ 72° F | Pürüzsüz | Hortum | Evet | 6" | EPDM, Rubber | 150° F | 5534K51 |

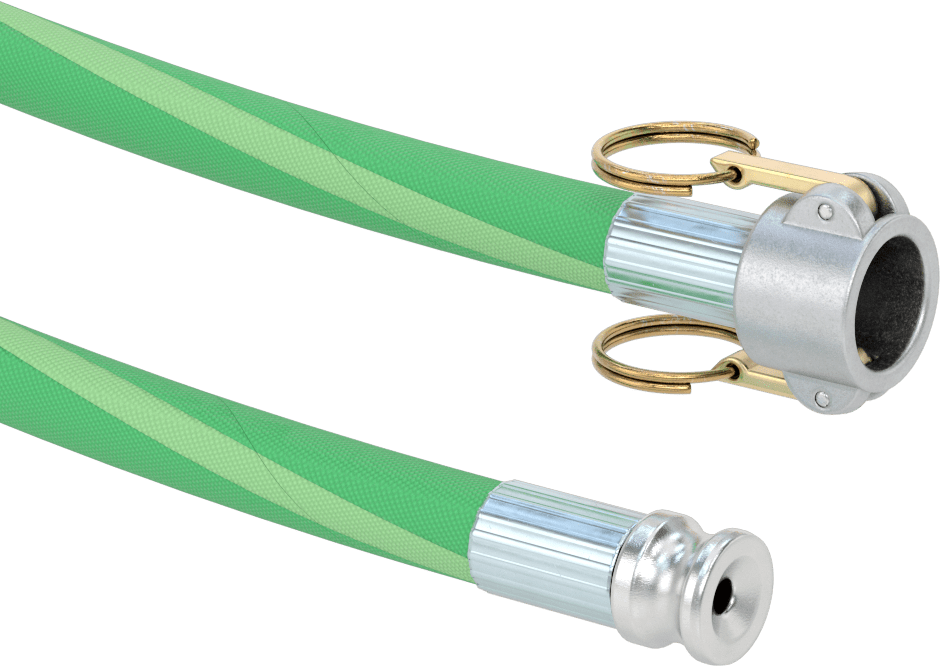

 | — | Kam ve Yiv | 12 | 12" | Acetone, Alcohol, Ethanol, Methyl Ethyl Ketone (MEK), Xylene | Aluminum, EPDM, Plastic, Polyethylene, Rubber | Alüminyum | Dişi, Erkek | Green, Light Green | Tapa, Dişli | 1" | 150 psi @ 72° F | Steel Wire, Yarn | 29 in. Hg @ 72° F | Pürüzsüz | Hortum | Evet | 6" | EPDM, Rubber | 150° F | 5534K39 |

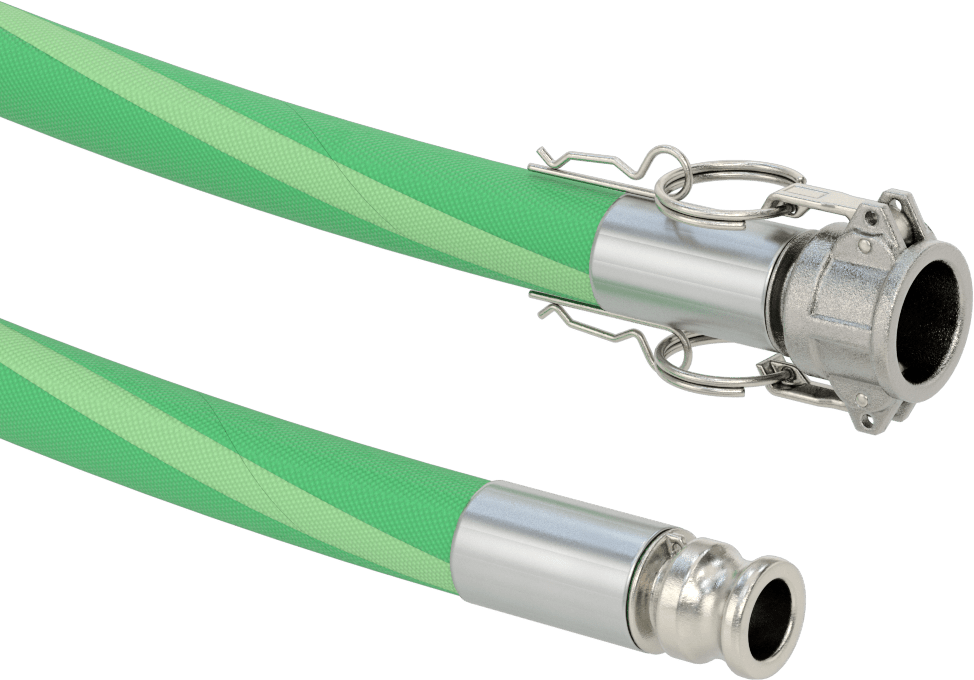

 | — | Kam ve Yiv | 34 | 34" | Acetone, Acid, Alcohol, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Phosphoric Acid, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Xylene | 316 Stainless Steel, EPDM, Plastic, Polyethylene, Rubber, Stainless Steel | 316 Stainless Steel, Stainless Steel | Dişi, Erkek | Green, Light Green | Tapa, Dişli | 1 14" | 150 psi @ 72° F | Steel Wire, Yarn | 29 in. Hg @ 72° F | Pürüzsüz | Hortum | Evet | 7" | EPDM, Rubber | 150° F | 5534K58 |

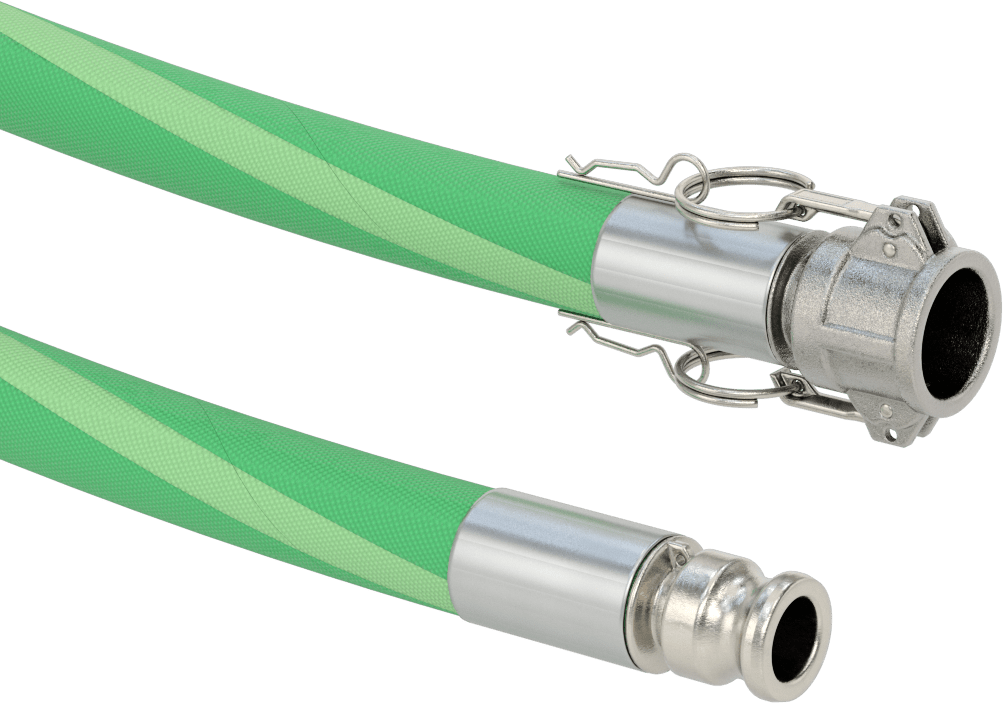

 | — | Kam ve Yiv | 1 | 1" | Acetone, Acid, Alcohol, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Phosphoric Acid, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Xylene | 316 Stainless Steel, EPDM, Plastic, Polyethylene, Rubber, Stainless Steel | 316 Stainless Steel, Stainless Steel | Dişi, Erkek | Green, Light Green | Tapa, Dişli | 1 12" | 150 psi @ 72° F | Steel Wire, Yarn | 29 in. Hg @ 72° F | Pürüzsüz | Hortum | Evet | 8" | EPDM, Rubber | 150° F | 5534K52 |

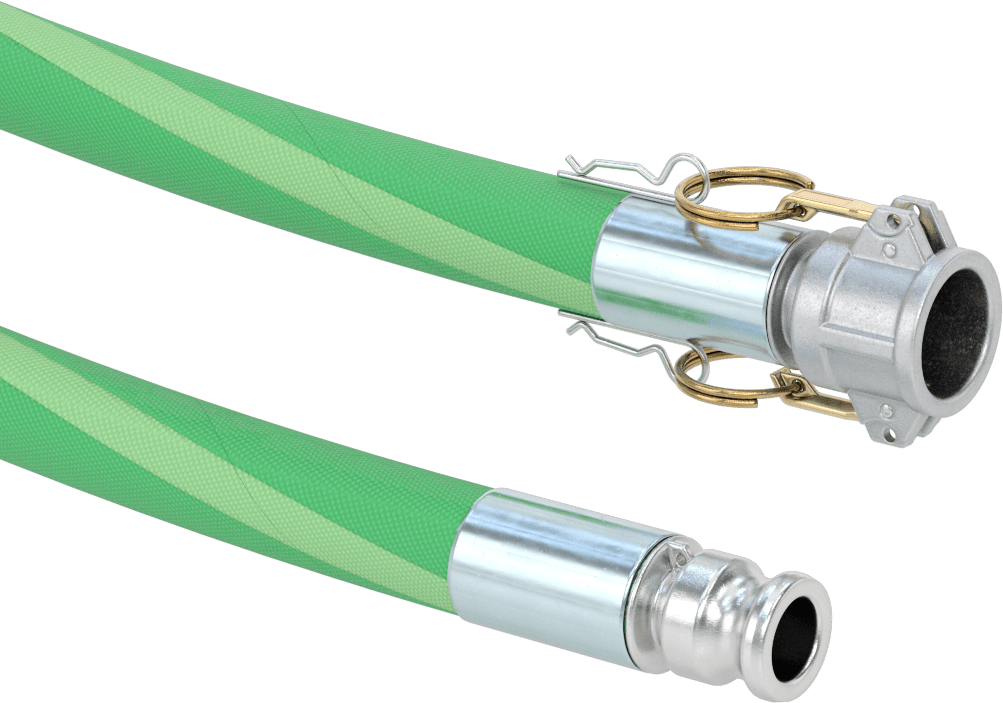

 | — | Kam ve Yiv | 1 | 1" | Acetone, Alcohol, Ethanol, Methyl Ethyl Ketone (MEK), Xylene | Aluminum, EPDM, Plastic, Polyethylene, Rubber | Alüminyum | Dişi, Erkek | Green, Light Green | Tapa, Dişli | 1 12" | 150 psi @ 72° F | Steel Wire, Yarn | 29 in. Hg @ 72° F | Pürüzsüz | Hortum | Evet | 8" | EPDM, Rubber | 150° F | 5534K42 |

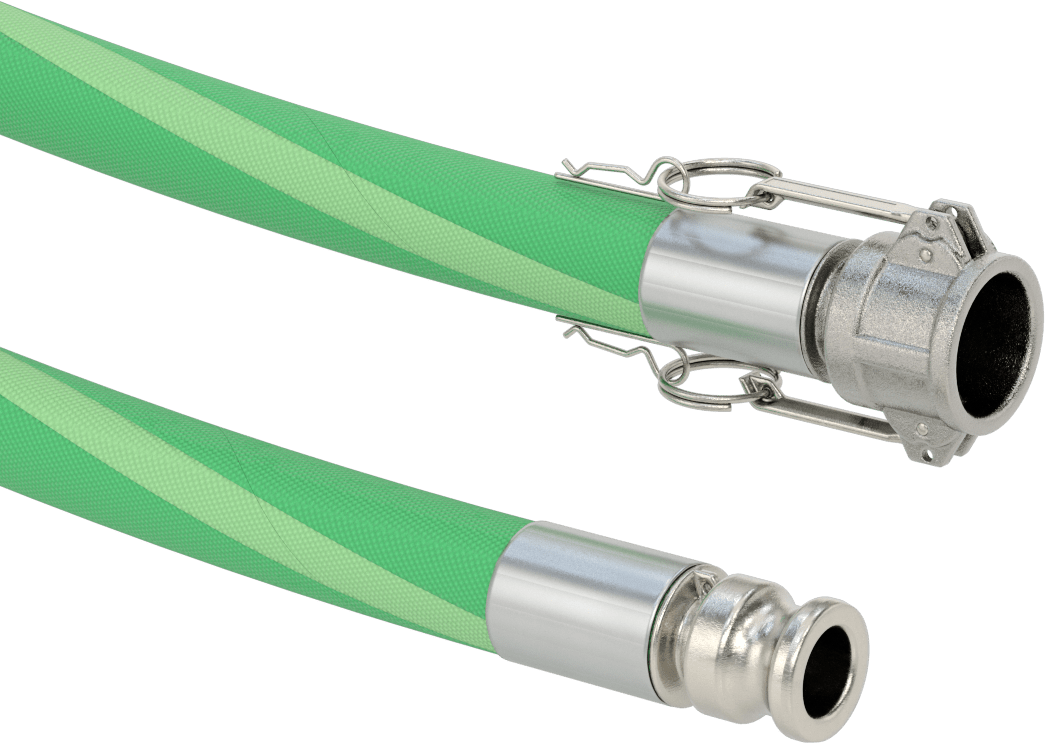

 | — | Kam ve Yiv | 1 14 | 1 14" | Acetone, Acid, Alcohol, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Phosphoric Acid, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Xylene | 316 Stainless Steel, EPDM, Plastic, Polyethylene, Rubber, Stainless Steel | 316 Stainless Steel, Stainless Steel | Dişi, Erkek | Green, Light Green | Tapa, Dişli | 1 34" | 150 psi @ 72° F | Steel Wire, Yarn | 29 in. Hg @ 72° F | Pürüzsüz | Hortum | Evet | 9" | EPDM, Rubber | 150° F | 5534K53 |

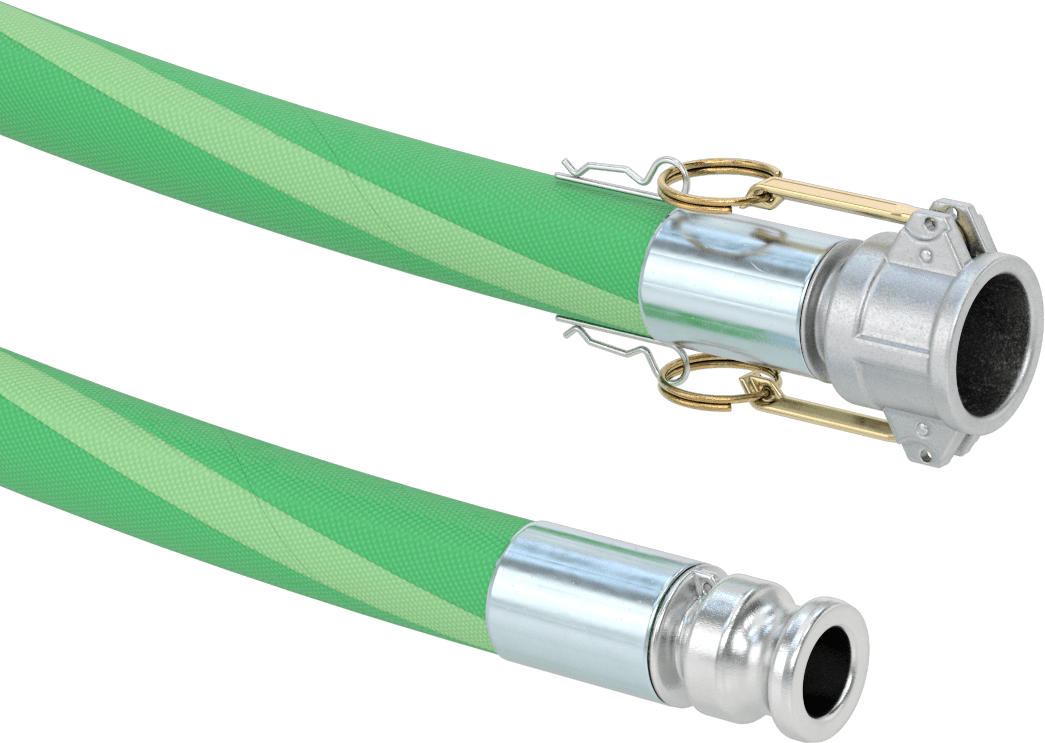

 | — | Kam ve Yiv | 1 14 | 1 14" | Acetone, Alcohol, Ethanol, Methyl Ethyl Ketone (MEK), Xylene | Aluminum, EPDM, Plastic, Polyethylene, Rubber | Alüminyum | Dişi, Erkek | Green, Light Green | Tapa, Dişli | 1 34" | 150 psi @ 72° F | Steel Wire, Yarn | 29 in. Hg @ 72° F | Pürüzsüz | Hortum | Evet | 9" | EPDM, Rubber | 150° F | 5534K43 |

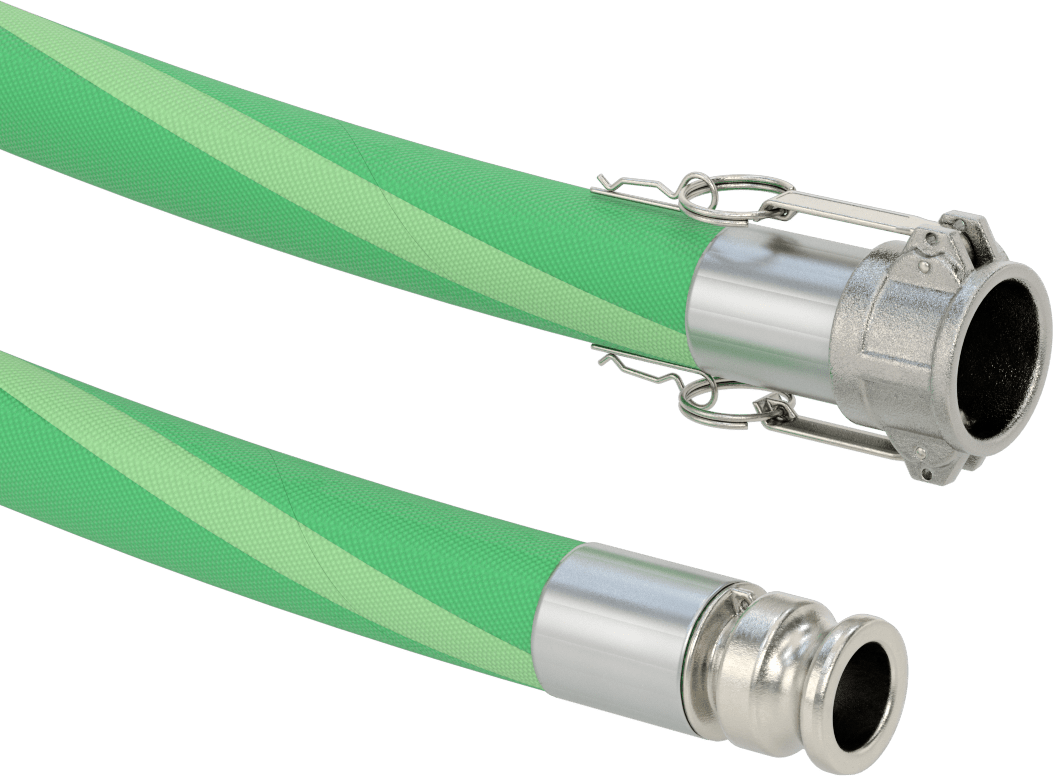

 | — | Kam ve Yiv | 1 12 | 1 12" | Acetone, Acid, Alcohol, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Phosphoric Acid, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Xylene | 316 Stainless Steel, EPDM, Plastic, Polyethylene, Rubber, Stainless Steel | 316 Stainless Steel, Stainless Steel | Dişi, Erkek | Green, Light Green | Tapa, Dişli | 2 116" | 150 psi @ 72° F | Steel Wire, Yarn | 29 in. Hg @ 72° F | Pürüzsüz | Hortum | Evet | 10" | EPDM, Rubber | 150° F | 5534K54 |

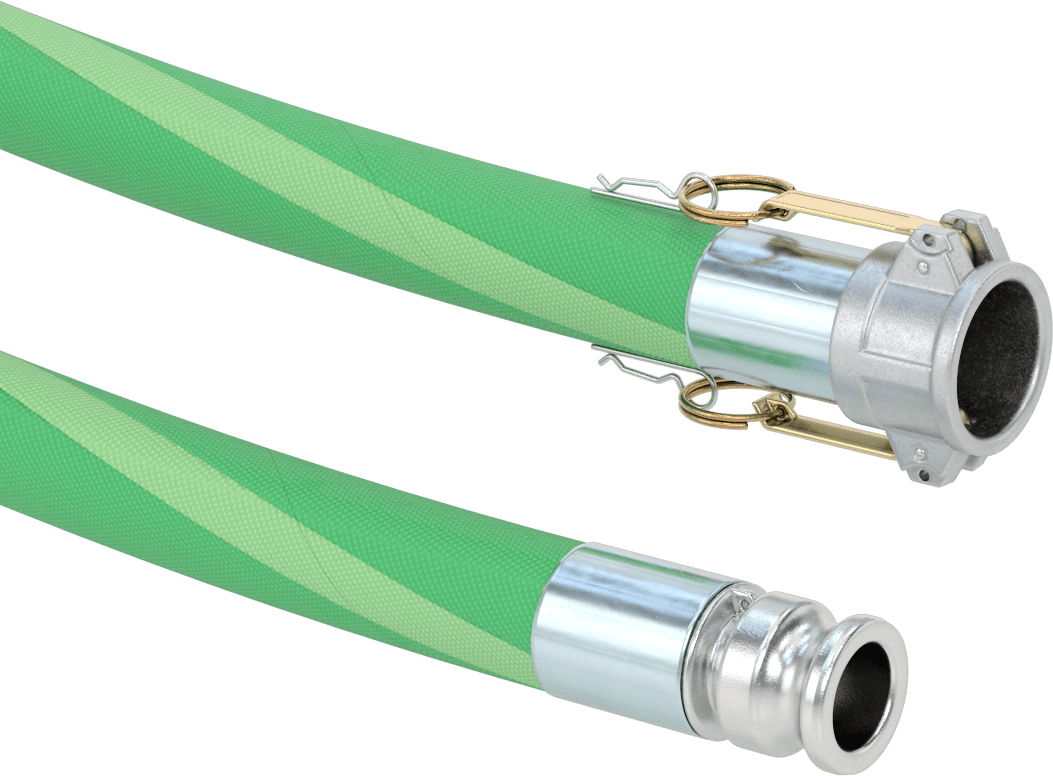

 | — | Kam ve Yiv | 1 12 | 1 12" | Acetone, Alcohol, Ethanol, Methyl Ethyl Ketone (MEK), Xylene | Aluminum, EPDM, Plastic, Polyethylene, Rubber | Alüminyum | Dişi, Erkek | Green, Light Green | Tapa, Dişli | 2 116" | 150 psi @ 72° F | Steel Wire, Yarn | 29 in. Hg @ 72° F | Pürüzsüz | Hortum | Evet | 10" | EPDM, Rubber | 150° F | 5534K44 |

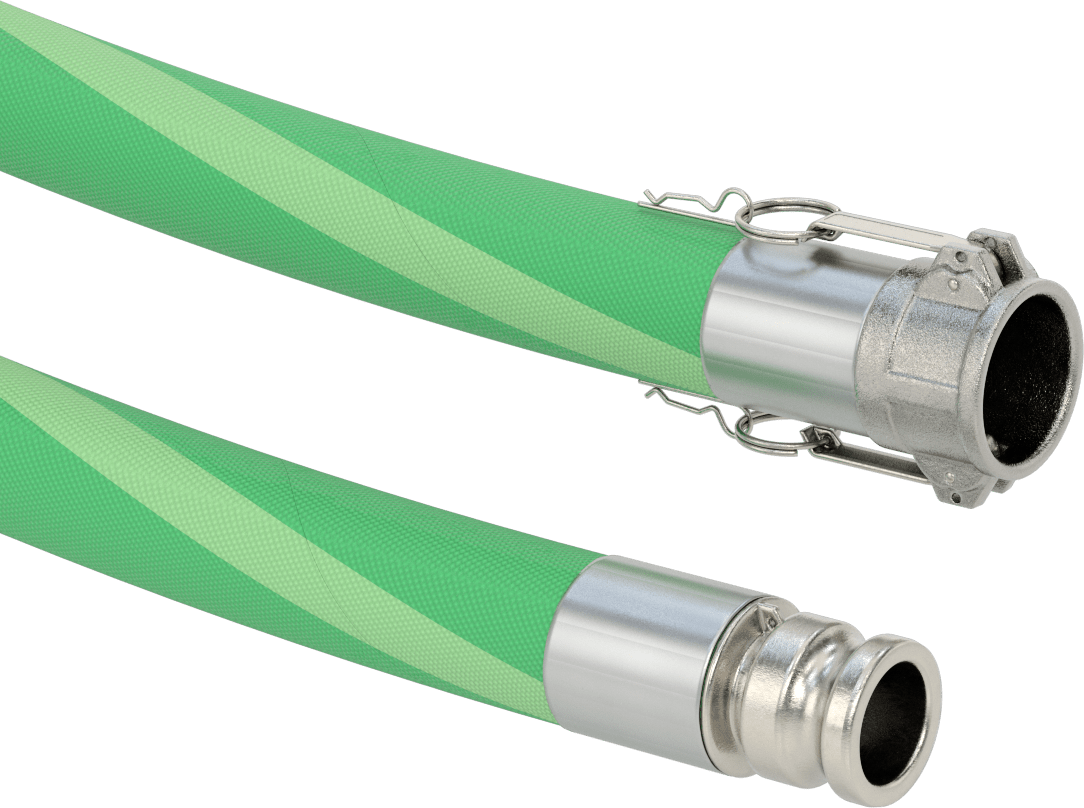

 | — | Kam ve Yiv | 2 | 2" | Acetone, Acid, Alcohol, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Phosphoric Acid, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Xylene | 316 Stainless Steel, EPDM, Plastic, Polyethylene, Rubber, Stainless Steel | 316 Stainless Steel, Stainless Steel | Dişi, Erkek | Green, Light Green | Tapa, Dişli | 2 58" | 150 psi @ 72° F | Steel Wire, Yarn | 29 in. Hg @ 72° F | Pürüzsüz | Hortum | Evet | 12" | EPDM, Rubber | 150° F | 5534K55 |

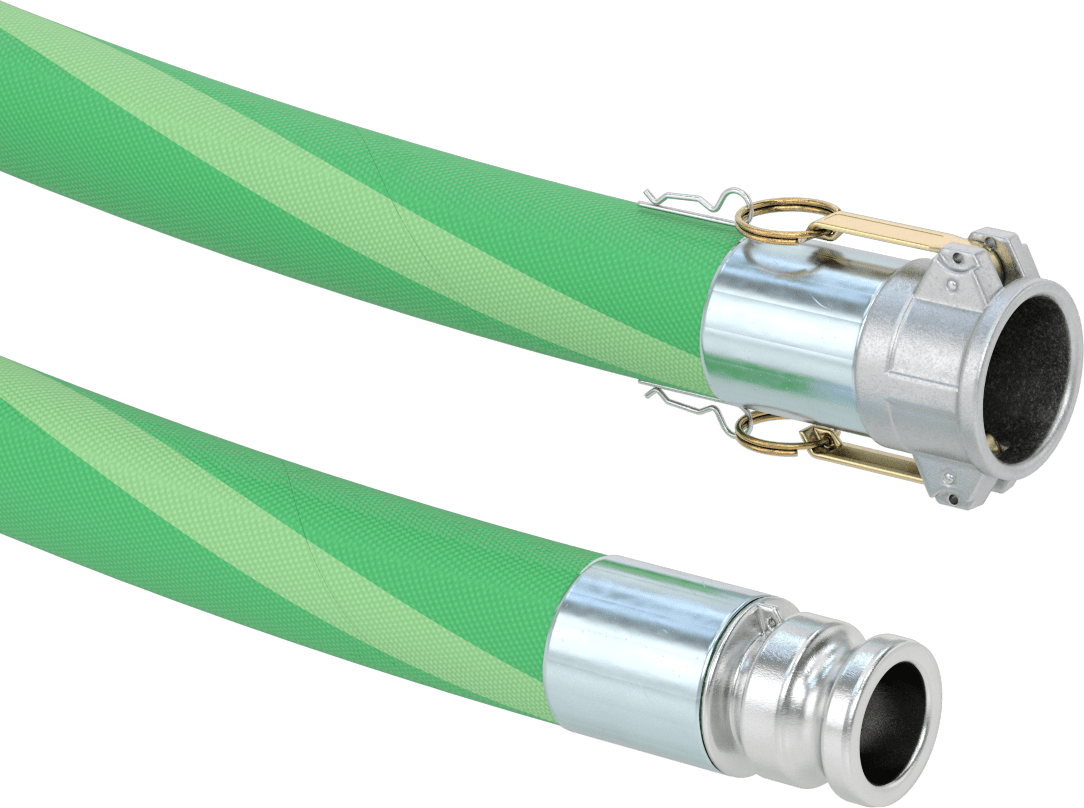

 | — | Kam ve Yiv | 2 | 2" | Acetone, Alcohol, Ethanol, Methyl Ethyl Ketone (MEK), Xylene | Aluminum, EPDM, Plastic, Polyethylene, Rubber | Alüminyum | Dişi, Erkek | Green, Light Green | Tapa, Dişli | 2 58" | 150 psi @ 72° F | Steel Wire, Yarn | 29 in. Hg @ 72° F | Pürüzsüz | Hortum | Evet | 12" | EPDM, Rubber | 150° F | 5534K45 |

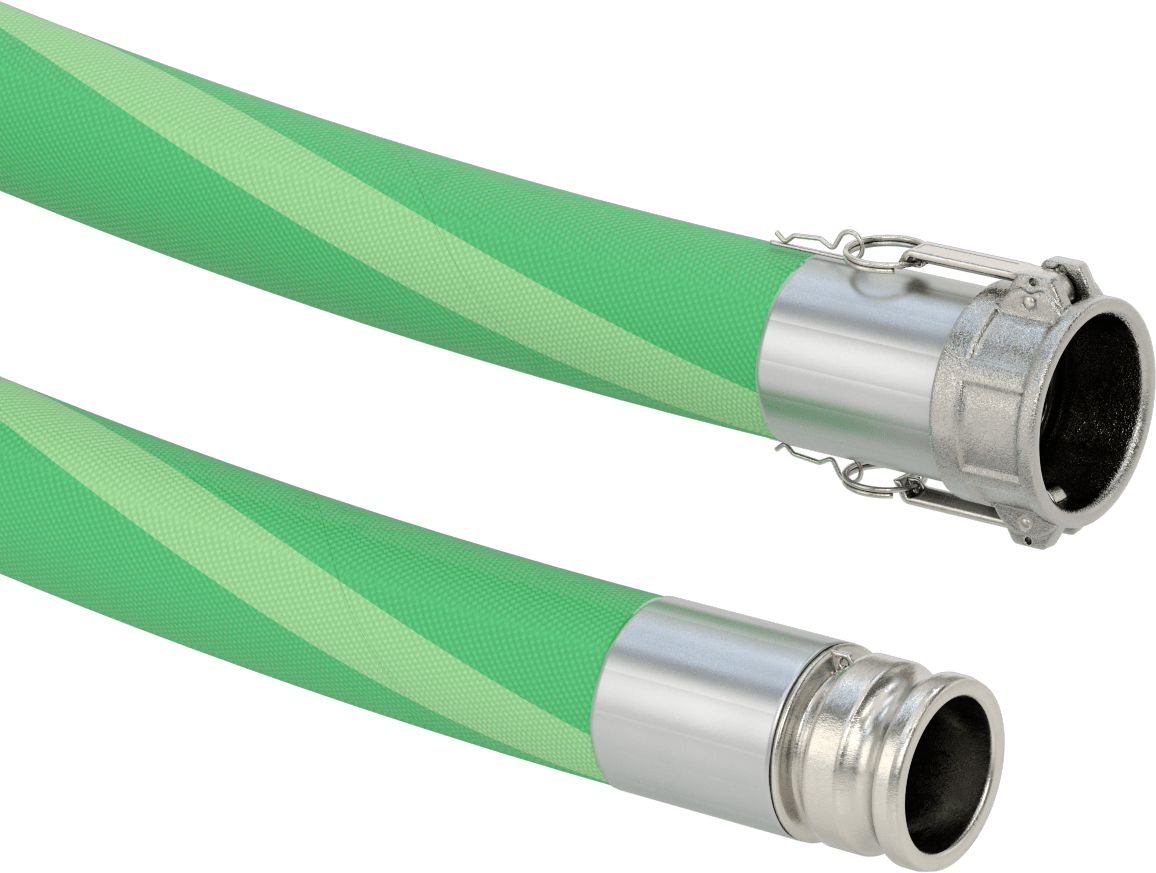

 | — | Kam ve Yiv | 3 | 3" | Acetone, Acid, Alcohol, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Phosphoric Acid, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Xylene | 316 Stainless Steel, EPDM, Plastic, Polyethylene, Rubber, Stainless Steel | 316 Stainless Steel, Stainless Steel | Dişi, Erkek | Green, Light Green | Tapa, Dişli | 3 58" | 150 psi @ 72° F | Steel Wire, Yarn | 29 in. Hg @ 72° F | Pürüzsüz | Hortum | Evet | 18" | EPDM, Rubber | 150° F | 5534K26 |

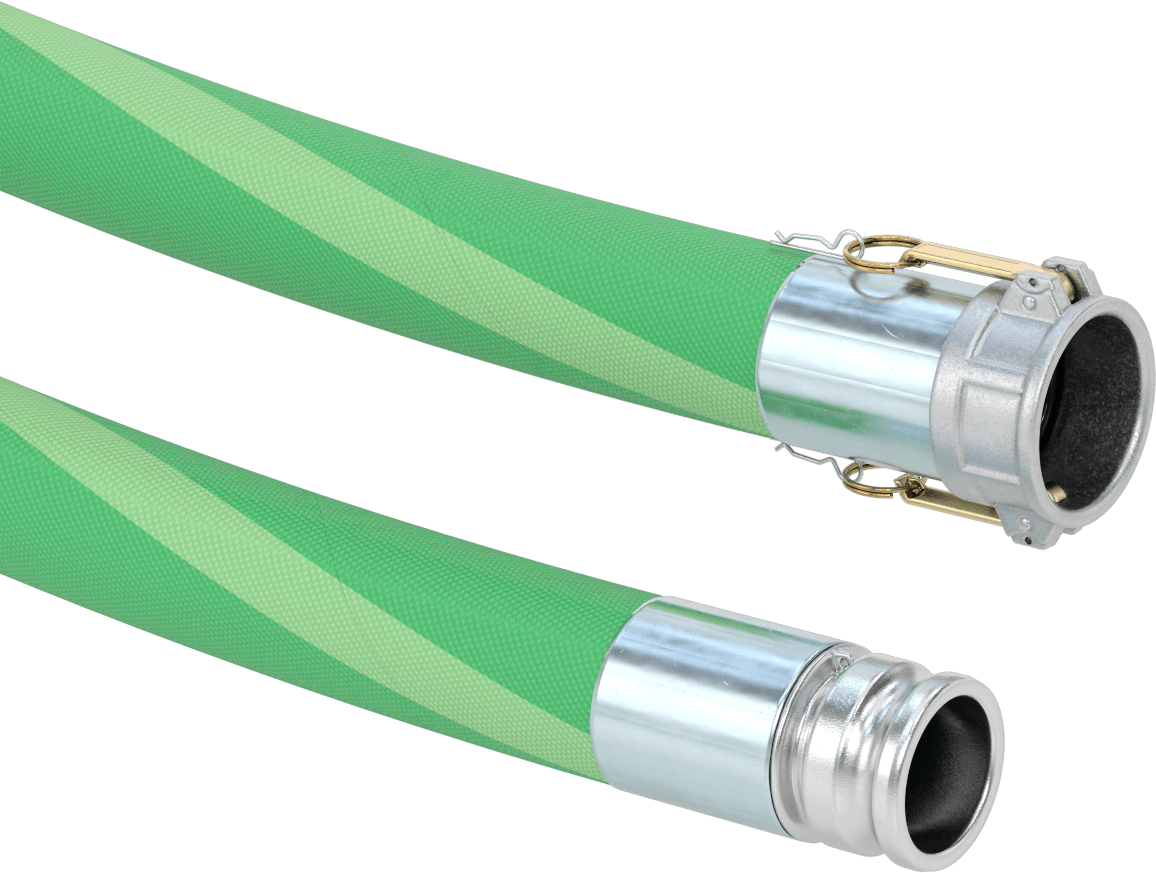

 | — | Kam ve Yiv | 3 | 3" | Acetone, Alcohol, Ethanol, Methyl Ethyl Ketone (MEK), Xylene | Aluminum, EPDM, Plastic, Polyethylene, Rubber | Alüminyum | Dişi, Erkek | Green, Light Green | Tapa, Dişli | 3 58" | 150 psi @ 72° F | Steel Wire, Yarn | 29 in. Hg @ 72° F | Pürüzsüz | Hortum | Evet | 18" | EPDM, Rubber | 150° F | 5534K28 |

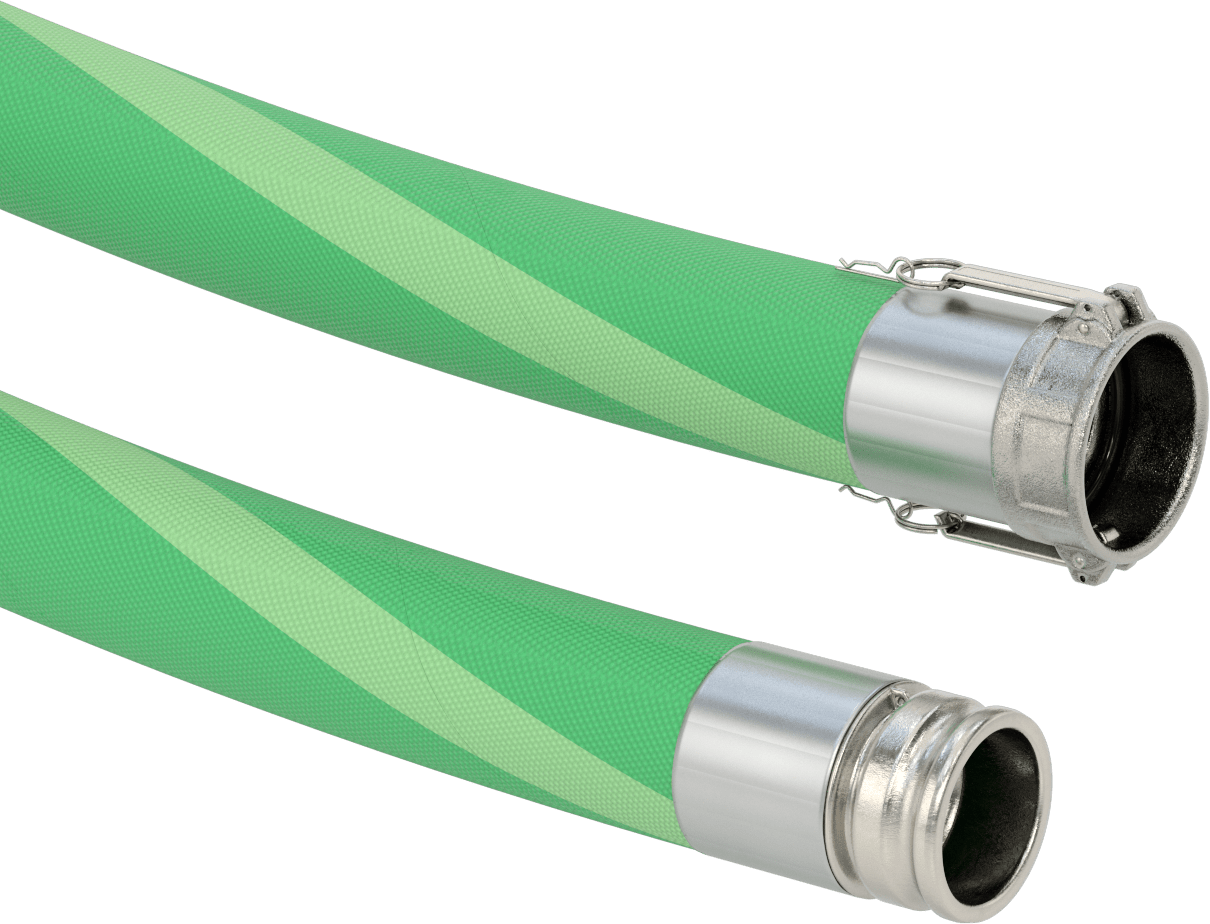

 | — | Kam ve Yiv | 4 | 4" | Acetone, Acid, Alcohol, Carbon Dioxide, Ethanol, Isopropyl Alcohol, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Phosphoric Acid, Potassium Hydroxide, Sodium Hydroxide (Caustic Soda), Vegetable Oil, Xylene | 316 Stainless Steel, EPDM, Plastic, Polyethylene, Rubber, Stainless Steel | 316 Stainless Steel, Stainless Steel | Dişi, Erkek | Green, Light Green | Tapa, Dişli | 4 34" | 150 psi @ 72° F | Steel Wire, Yarn | 29 in. Hg @ 72° F | Pürüzsüz | Hortum | Evet | 24" | EPDM, Rubber | 150° F | 5534K27 |
