Bağlantı Parçaları ile Yüksek Sıcaklık Orta Basınçlı Kimyasal Hortum
8 ürün
Bu hortum, yüksek sıcaklıktaki kimyasallara dayanıklıdır. 316 paslanmaz çelik bağlantı parçaları mükemmel korozyon direncine sahiptir; çelik bağlantı parçaları ise mükemmel mukavemete sahiptir.
| Görsel | Fiyat | Boru Çapı | Diş Tipi | Birlikte Kullanım | Bağlantı Elemanı Malzemesi | Bağlantı Elemanı Bağlantısı | Maksimum Sıcaklık | Cins | ID | Malzeme | Sıcaklıkta Maksimum Vakum | Sıcaklıktaki Maksimum Basınç | Bağlanır | İç Doku | Renk | Kapak Malzemesi | İç Takviye | Dönüş Yarıçapı | Minimum Sıcaklık | Dış Mekan Kullanımı için | Parça No |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bağlantı Parçaları ile Yüksek Sıcaklık Orta Basınçlı Kimyasal Hortum | |||||||||||||||||||||
 | — | 12 | NPT | Acetone, Acid, Alcohol, Ammonia, Carbon Dioxide, Citric Acid, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Nitric Acid, Phosphoric Acid, Potassium Hydroxide, Toluene (Methylbenzene), Vegetable Oil, Xylene | 316 Stainless Steel, Stainless Steel | Dişli | 350° F | Erkek | 12" | 316 Stainless Steel, EPDM, FEP, Plastic, Rubber, Stainless Steel | 29 in. Hg @ 72° F | 350 psi @ 72° F | Boru | Pürüzsüz | Yeşil, Sarı | EPDM, Rubber | Steel Wire, Yarn | 2 58" | -40° F | Evet | 54675K02 |

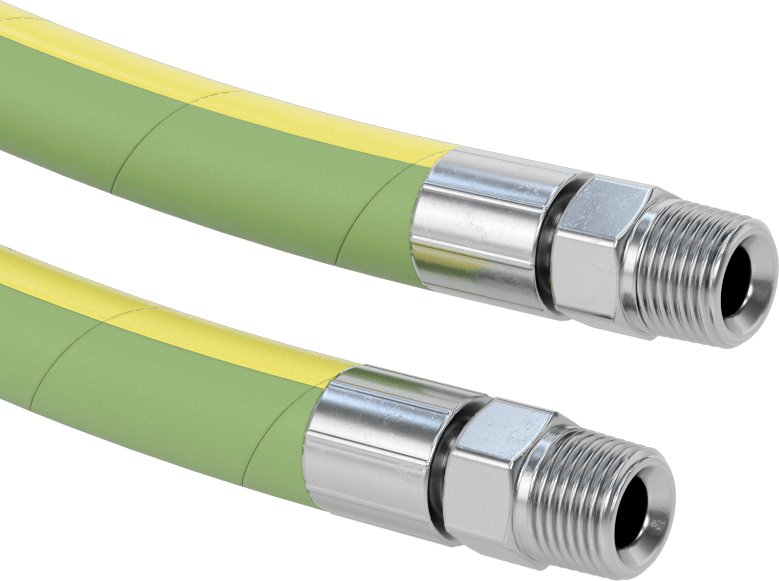

 | — | 12 | NPT | Acetone, Alcohol, Ammonia, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Toluene (Methylbenzene), Vegetable Oil, Xylene | Çelik | Dişli | 350° F | Erkek | 12" | EPDM, FEP, Plastic, Rubber, Steel | 29 in. Hg @ 72° F | 350 psi @ 72° F | Boru | Pürüzsüz | Yeşil, Sarı | EPDM, Rubber | Steel Wire, Yarn | 2 58" | -40° F | Evet | 54675K01 |

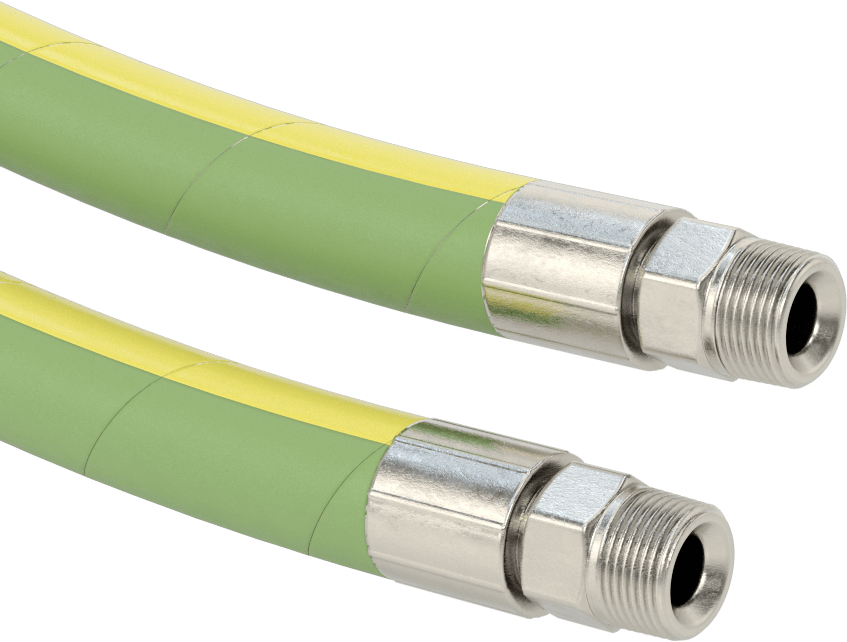

 | — | 34 | NPT | Acetone, Acid, Alcohol, Ammonia, Carbon Dioxide, Citric Acid, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Nitric Acid, Phosphoric Acid, Potassium Hydroxide, Toluene (Methylbenzene), Vegetable Oil, Xylene | 316 Stainless Steel, Stainless Steel | Dişli | 350° F | Erkek | 34" | 316 Stainless Steel, EPDM, FEP, Plastic, Rubber, Stainless Steel | 29 in. Hg @ 72° F | 350 psi @ 72° F | Boru | Pürüzsüz | Yeşil, Sarı | EPDM, Rubber | Steel Wire, Yarn | 4 18" | -40° F | Evet | 54675K04 |

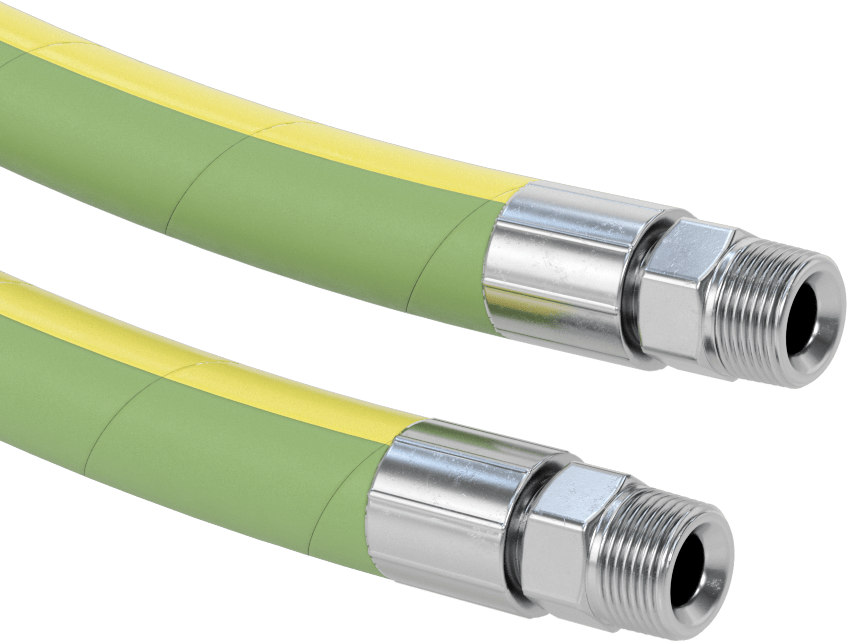

 | — | 34 | NPT | Acetone, Alcohol, Ammonia, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Toluene (Methylbenzene), Vegetable Oil, Xylene | Çelik | Dişli | 350° F | Erkek | 34" | EPDM, FEP, Plastic, Rubber, Steel | 29 in. Hg @ 72° F | 350 psi @ 72° F | Boru | Pürüzsüz | Yeşil, Sarı | EPDM, Rubber | Steel Wire, Yarn | 4 18" | -40° F | Evet | 54675K03 |

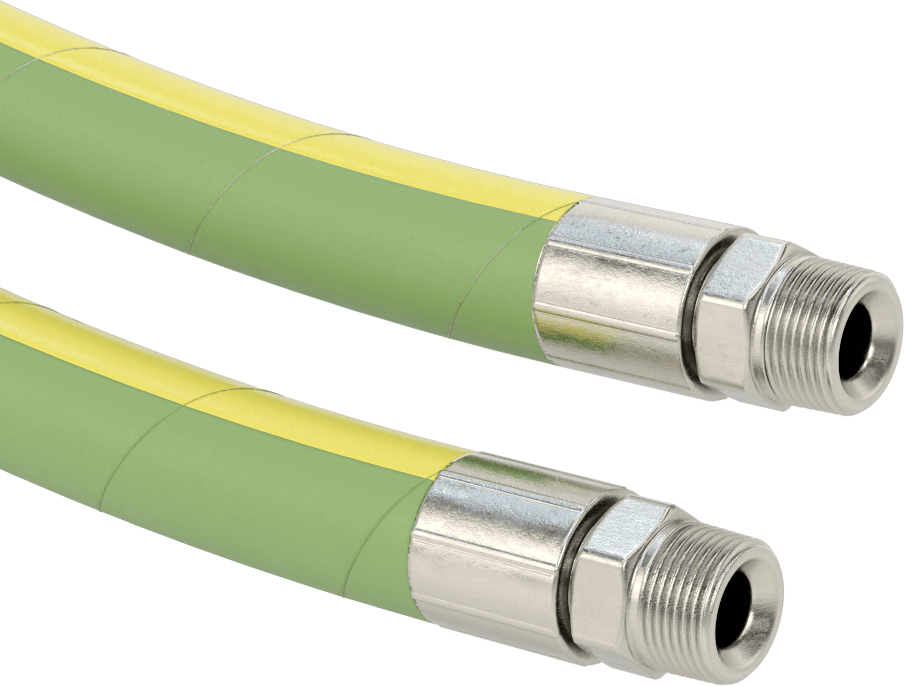

 | — | 1 | NPT | Acetone, Acid, Alcohol, Ammonia, Carbon Dioxide, Citric Acid, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Nitric Acid, Phosphoric Acid, Potassium Hydroxide, Toluene (Methylbenzene), Vegetable Oil, Xylene | 316 Stainless Steel, Stainless Steel | Dişli | 350° F | Erkek | 1" | 316 Stainless Steel, EPDM, FEP, Plastic, Rubber, Stainless Steel | 29 in. Hg @ 72° F | 450 psi @ 72° F | Boru | Pürüzsüz | Yeşil, Sarı | EPDM, Rubber | Steel Wire, Yarn | 5 34" | -40° F | Evet | 54675K43 |

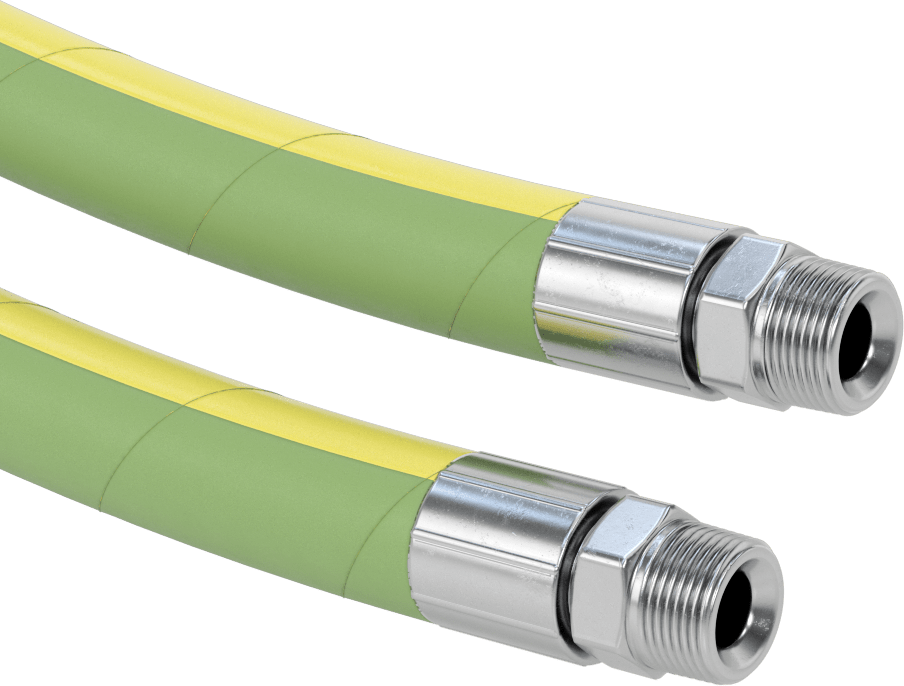

 | — | 1 | NPT | Acetone, Alcohol, Ammonia, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Toluene (Methylbenzene), Vegetable Oil, Xylene | Çelik | Dişli | 350° F | Erkek | 1" | EPDM, FEP, Plastic, Rubber, Steel | 29 in. Hg @ 72° F | 450 psi @ 72° F | Boru | Pürüzsüz | Yeşil, Sarı | EPDM, Rubber | Steel Wire, Yarn | 5 34" | -40° F | Evet | 54675K16 |

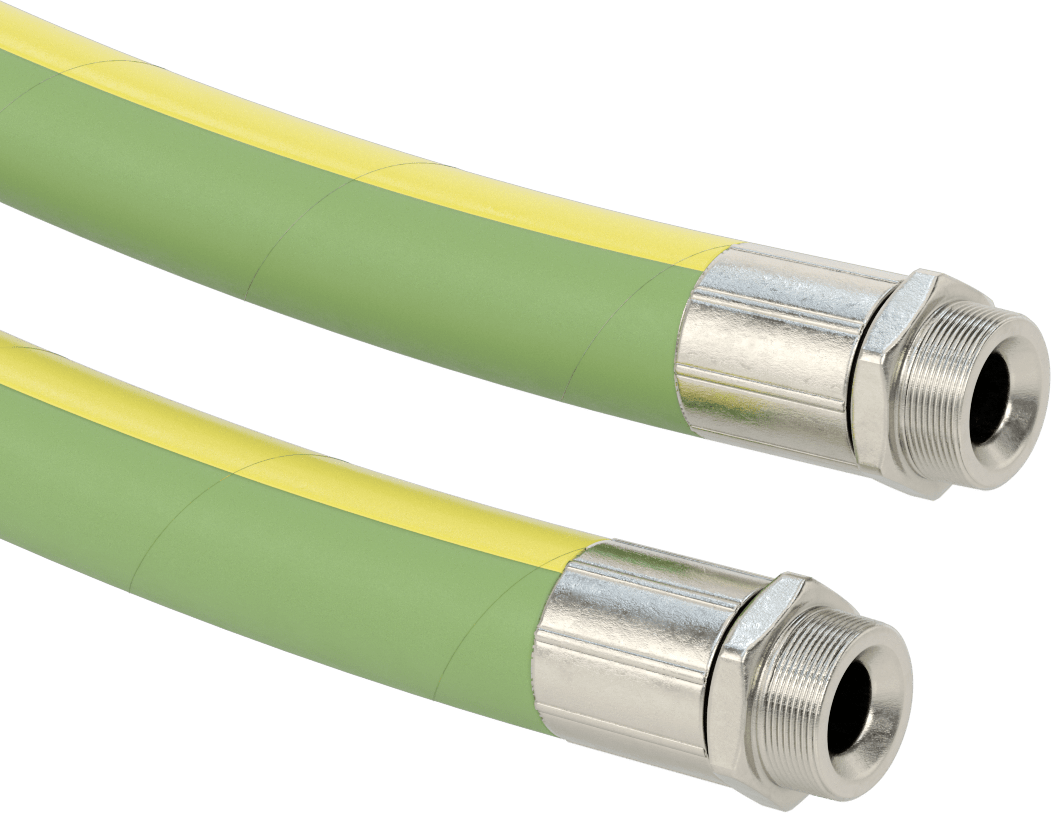

 | — | 2 | NPT | Acetone, Acid, Alcohol, Ammonia, Carbon Dioxide, Citric Acid, Ethanol, Hydrogen Peroxide, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Nitric Acid, Phosphoric Acid, Potassium Hydroxide, Toluene (Methylbenzene), Vegetable Oil, Xylene | 316 Stainless Steel, Stainless Steel | Dişli | 350° F | Erkek | 2" | 316 Stainless Steel, EPDM, FEP, Plastic, Rubber, Stainless Steel | 29 in. Hg @ 72° F | 300 psi @ 72° F | Boru | Pürüzsüz | Yeşil, Sarı | EPDM, Rubber | Steel Wire, Yarn | 13" | -40° F | Evet | 54675K45 |

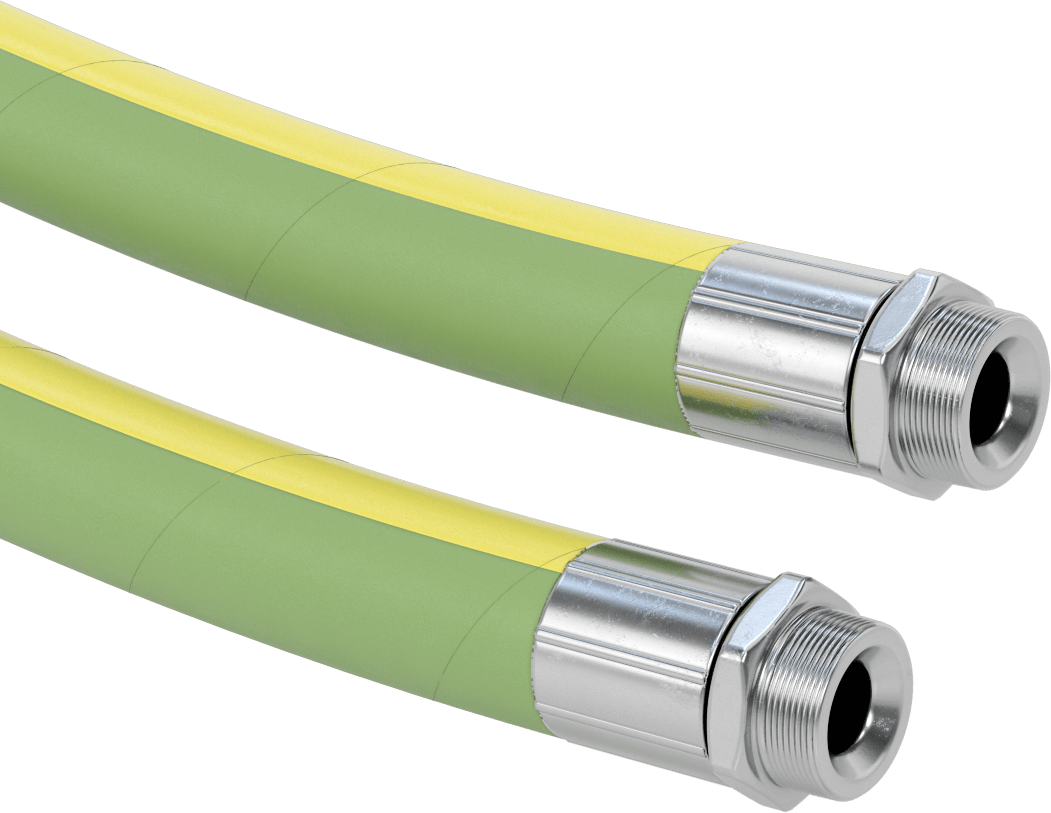

 | — | 2 | NPT | Acetone, Acid, Alcohol, Ammonia, Citric Acid, Ethanol, Isopropyl Alcohol, Liquid Ammonia, Methyl Ethyl Ketone (MEK), Mineral Oil, Mineral Spirits, Toluene (Methylbenzene), Vegetable Oil, Xylene | Çelik | Dişli | 350° F | Erkek | 2" | EPDM, FEP, Plastic, Rubber, Steel | 29 in. Hg @ 72° F | 300 psi @ 72° F | Boru | Pürüzsüz | Yeşil, Sarı | EPDM, Rubber | Steel Wire, Yarn | 13" | -40° F | Evet | 54675K881 |
