Kalibrasyon Sertifikalı Sol Dişli Halka Kalıpları
76 ürün
Laboratuvarda kalibre edilmiş ve NIST'e izlenebilir bir sertifika ile desteklenen bu ölçü aletleri, sol dişlerin tolerans aralığı içinde olup olmadığını kontrol eder. Bazen test raporu ve uzun form sertifikası olarak da adlandırılan sertifika, test edilen ölçümleri ayrıntılı olarak belirtir. Bu ölçü aletlerini vidalar, dişli çubuklar ve dış dişli diğer parçalar üzerinde kullanın. Daha hızlı testler için, dişli halka kalibre tutucusu ile birden fazla halka kalibreyi tutun.
| Görsel | Fiyat | Diş Boyutu | Diş Yönü | Diş Uyumu | Diş Tipi | Sertifika Türü | Ölçü Ölçüm Türü | Malzeme | Sertlik | Boyut Kontrol Ölçer Sınıfı | Parça No |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Kalibrasyon Sertifikalı Sol Dişli Halka Kalıpları | |||||||||||
 | ₺54.525 | 6-32 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N31 |
 | ₺54.525 | 6-32 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N73 |
 | ₺52.034 | 8-32 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N32 |
 | ₺52.034 | 8-32 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N74 |
 | ₺52.034 | 10-24 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N33 |
 | ₺52.034 | 10-24 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N75 |
 | ₺52.034 | 10-32 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N11 |
 | ₺52.034 | 10-32 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N53 |
 | ₺52.034 | 10-32 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N12 |
 | ₺52.034 | 10-32 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N54 |
 | ₺48.651 | 14"-20 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N34 |
 | ₺48.651 | 14"-20 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N76 |
 | ₺48.651 | 14"-28 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N13 |
 | ₺48.651 | 14"-28 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N55 |
 | ₺48.651 | 14"-28 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N14 |
 | ₺48.651 | 14"-28 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N56 |
 | ₺48.651 | 516"-18 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N35 |
 | ₺48.651 | 516"-18 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N77 |
 | ₺48.651 | 516"-24 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N15 |
 | ₺48.651 | 516"-24 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N57 |
 | ₺48.651 | 516"-24 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N16 |
 | ₺48.651 | 516"-24 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N58 |
 | ₺50.787 | 38"-16 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N36 |
 | ₺50.787 | 38"-16 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N78 |
 | ₺50.787 | 38"-24 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N17 |
 | ₺50.787 | 38"-24 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N59 |
 | ₺50.787 | 38"-24 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N18 |
 | ₺50.787 | 38"-24 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N61 |
 | ₺50.787 | 716"-20 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N19 |
 | ₺50.787 | 716"-20 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N62 |
 | ₺50.787 | 716"-20 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N21 |
 | ₺50.787 | 716"-20 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N63 |
 | ₺51.677 | 12"-13 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N37 |
 | ₺51.677 | 12"-13 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N79 |
 | ₺51.677 | 12"-20 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N22 |
 | ₺51.677 | 12"-20 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N64 |
 | ₺51.677 | 12"-20 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N23 |
 | ₺51.677 | 12"-20 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N65 |
 | ₺53.457 | 58"-11 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N38 |
 | ₺53.457 | 58"-11 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N81 |
 | ₺53.457 | 58"-18 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N24 |
 | ₺53.457 | 58"-18 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N66 |
 | ₺53.457 | 58"-18 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N25 |
 | ₺53.457 | 58"-18 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N67 |
 | ₺54.702 | 34"-10 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N39 |
 | ₺54.702 | 34"-10 | Sol El | Birleşik Standart Sınıf 2A | UNC | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N82 |
 | ₺54.702 | 34"-16 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N26 |
 | ₺54.702 | 34"-16 | Sol El | Birleşik Standart Sınıf 2A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N68 |
 | ₺54.702 | 34"-16 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | Go | Steel, Tool Steel | Rockwell C60 | X | 7836N27 |
 | ₺54.702 | 34"-16 | Sol El | Birleşik Standart Sınıf 3A | UNF | Calibration Certificate, Calibration Certificate Traceable to NIST | No-Go | Steel, Tool Steel | Rockwell C60 | X | 7836N69 |

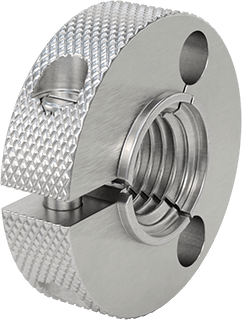

 | ₺57.372 | 1"-8 | Sol El | — | UNC | — | — | Alet Çeliği | Rockwell C60 | — | 7836N41 |

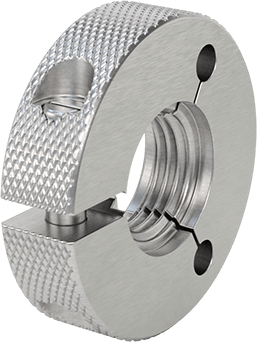

 | ₺57.372 | 1"-8 | Sol El | — | UNC | — | — | Alet Çeliği | Rockwell C60 | — | 7836N83 |
 | ₺61.287 | 1 14"-12 | Sol El | — | UNF | — | — | Alet Çeliği | Rockwell C60 | — | 7836N28 |
 | ₺61.287 | 1 14"-12 | Sol El | — | UNF | — | — | Alet Çeliği | Rockwell C60 | — | 7836N71 |

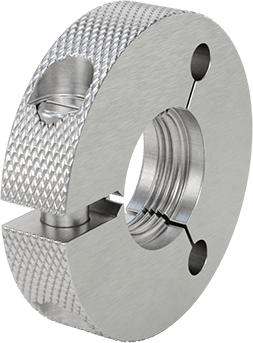

 | ₺61.287 | 1 14"-12 | Sol El | — | UNF | — | — | Alet Çeliği | Rockwell C60 | — | 7836N29 |
 | ₺61.287 | 1 14"-12 | Sol El | — | UNF | — | — | Alet Çeliği | Rockwell C60 | — | 7836N72 |
 | ₺52.034 | M5 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N42 |
 | ₺52.034 | M5 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N84 |
 | ₺48.651 | M6 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N43 |
 | ₺48.651 | M6 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N85 |
 | ₺50.787 | M8 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N44 |
 | ₺50.787 | M8 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N86 |
 | ₺50.787 | M10 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N46 |
 | ₺50.787 | M10 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N45 |
 | ₺50.787 | M10 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N88 |
 | ₺50.787 | M10 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N87 |
 | ₺51.677 | M12 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N47 |
 | ₺51.677 | M12 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N48 |
 | ₺51.677 | M12 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N91 |
 | ₺51.677 | M12 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N89 |
 | ₺52.566 | M14 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N49 |
 | ₺52.566 | M14 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N92 |

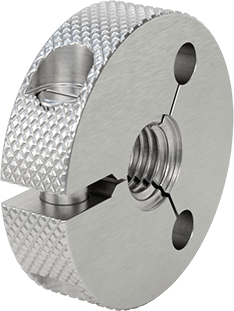

 | ₺54.347 | M16 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N52 |

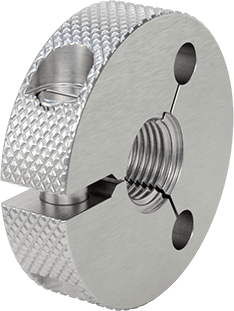

 | ₺54.347 | M16 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N51 |
 | ₺54.347 | M16 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N94 |

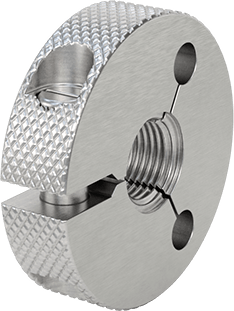

 | ₺54.347 | M16 | Sol El | — | Metrik | — | — | Alet Çeliği | Rockwell C60 | — | 7836N93 |
