Hassas Hizalama Pimleri
61 urun[L5-terminal]
İki parçadaki delinmiş delikleri hassas bir şekilde hizalayın.
| Gorsel | Fiyat | Pim Çapı | Uzunluk | Sap Uzunluğu | Kulp Çapı | Hizalama Pimi Stili | Malzeme | Performans | Sertlik | Parca No |
|---|---|---|---|---|---|---|---|---|---|---|
| Hassas Hizalama Pimleri | ||||||||||
 | ₺903 | 18" | 2 12" | 1 12" | 14" | T | Çelik | Hassas | Rockwell C58 | 98021A412 |
 | ₺936 | 0.1250" | 2 12" | 1 12" | 14" | L | Çelik | Hassas | Rockwell C58 | 98021A441 |
 | ₺1.243 | 0.1562" | 3 12" | 2 12" | 516" | L | Çelik | Hassas | Rockwell C58 | 98021A511 |
 | ₺1.187 | 0.1860" | 2 12" | 2 12" | 516" | L | Çelik | Hassas | Rockwell C58 | 98021A512 |
 | ₺903 | 316" | 3" | 2 12" | 516" | T | Çelik | Hassas | Rockwell C58 | 98021A415 |
 | ₺936 | 0.1875" | 3" | 2 12" | 516" | L | Çelik | Hassas | Rockwell C58 | 98021A313 |
 | ₺1.026 | 0.1875" | 4" | 2 12" | 516" | L | Çelik | Hassas | Rockwell C58 | 98021A513 |
 | ₺1.220 | 0.1875" | 6" | 2 12" | 516" | L | Çelik | Hassas | Rockwell C58 | 98021A514 |
 | ₺2.420 | 0.1895" | 2 12" | 2 12" | 516" | L | Çelik | Hassas | Rockwell C58 | 98021A515 |
 | ₺936 | 0.1910" | 3" | 2 12" | 516" | L | Çelik | Hassas | Rockwell C58 | 98021A516 |
 | ₺1.410 | 0.1925" | 3" | 2 12" | 516" | L | Çelik | Hassas | Rockwell C58 | 98021A517 |
 | ₺1.140 | 0.1960" | 3" | 2 12" | 516" | L | Çelik | Hassas | Rockwell C58 | 98021A518 |
 | ₺2.420 | 0.2485" | 5" | 2 12" | 38" | L | Çelik | Hassas | Rockwell C58 | 98021A519 |
 | ₺1.100 | 14" | 2" | 2 12" | 38" | T | Çelik | Hassas | Rockwell C58 | 98021A444 |
 | ₺2.160 | 14" | 2" | 3" | - | Kayan Tutamak | Çelik | Hassas | Rockwell C58 | 98021A231 |
 | ₺2.477 | 14" | 3" | 2 12" | 38" | T | Çelik | Hassas | Rockwell C58 | 98021A419 |
 | ₺1.067 | 14" | 4" | 2 12" | 38" | T | Çelik | Hassas | Rockwell C58 | 98021A445 |
 | ₺2.940 | 0.2500" | 3" | 2 12" | 38" | L | Çelik | Hassas | Rockwell C58 | 98021A315 |
 | ₺1.140 | 0.2500" | 4" | 2 12" | 38" | L | Çelik | Hassas | Rockwell C58 | 98021A317 |
 | ₺1.187 | 0.2500" | 6" | 2 12" | 38" | L | Çelik | Hassas | Rockwell C58 | 98021A521 |
 | ₺1.187 | 0.2570" | 3" | 2 12" | 38" | L | Çelik | Hassas | Rockwell C58 | 98021A522 |
 | ₺1.386 | 0.2750" | 4" | 2 12" | 38" | L | Çelik | Hassas | Rockwell C58 | 98021A442 |
 | ₺2.612 | 516" | 4" | 3" | 716" | T | Çelik | Hassas | Rockwell C58 | 98021A446 |
 | ₺917 | 0.3125" | 2" | 3" | 716" | L | Çelik | Hassas | Rockwell C58 | 98021A523 |
 | ₺1.110 | 0.3125" | 3 12" | 3" | 716" | L | Çelik | Hassas | Rockwell C58 | 98021A321 |
 | ₺1.326 | 0.3125" | 4" | 3" | 716" | L | Çelik | Hassas | Rockwell C58 | 98021A443 |
 | ₺3.303 | 0.3125" | 6" | 3" | 716" | L | Çelik | Hassas | Rockwell C58 | 98021A524 |
 | ₺3.015 | 38" | 4" | 3 12" | 12" | T | Çelik | Hassas | Rockwell C58 | 98021A432 |
 | ₺4.296 | 38" | 5" | 3" | - | Kayan Tutamak | Çelik | Hassas | Rockwell C58 | 98021A235 |
 | ₺1.460 | 38" | 6" | 3 12" | 12" | T | Çelik | Hassas | Rockwell C58 | 98021A435 |
 | ₺1.361 | 0.3750" | 3" | 3 12" | 12" | L | Çelik | Hassas | Rockwell C58 | 98021A525 |
 | ₺1.274 | 0.3750" | 4" | 3 12" | 12" | L | Çelik | Hassas | Rockwell C58 | 98021A323 |
 | ₺3.536 | 0.3750" | 6" | 3 12" | 12" | L | Çelik | Hassas | Rockwell C58 | 98021A526 |
 | ₺1.571 | 0.4375" | 4" | 3 12" | 916" | L | Çelik | Hassas | Rockwell C58 | 98021A527 |
 | ₺1.571 | 0.4375" | 6" | 3 12" | 916" | L | Çelik | Hassas | Rockwell C58 | 98021A528 |
 | ₺1.617 | 12" | 4" | 3 12" | 58" | T | Çelik | Hassas | Rockwell C58 | 98021A437 |
 | ₺1.617 | 12" | 6" | 3 12" | 58" | T | Çelik | Hassas | Rockwell C58 | 98021A439 |
 | ₺3.723 | 0.5000" | 4" | 3 12" | 58" | L | Çelik | Hassas | Rockwell C58 | 98021A327 |
 | ₺2.390 | 0.5000" | 6" | 3 12" | 58" | L | Çelik | Hassas | Rockwell C58 | 98021A529 |
 | ₺2.657 | 0.5000" | 9" | 3 12" | 58" | L | Çelik | Hassas | Rockwell C58 | 98021A531 |
 | ₺2.390 | 0.5625" | 4" | 3 12" | 58" | L | Çelik | Hassas | Rockwell C58 | 98021A532 |
 | ₺3.066 | 0.5625" | 6" | 3 12" | 58" | L | Çelik | Hassas | Rockwell C58 | 98021A533 |
 | ₺3.066 | 0.6250" | 6" | 3 12" | 78" | L | Çelik | Hassas | Rockwell C58 | 98021A534 |
 | ₺3.551 | 0.6250" | 8" | 3 12" | 78" | L | Çelik | Hassas | Rockwell C58 | 98021A535 |
 | ₺5.708 | 0.7500" | 6" | 3 12" | 78" | L | Çelik | Hassas | Rockwell C58 | 98021A536 |
 | ₺3.807 | 0.7500" | 8" | 3 12" | 78" | L | Çelik | Hassas | Rockwell C58 | 98021A537 |
 | ₺983 | 4 mm | 88 mm | 64 mm | 8 mm | L | Çelik | Hassas | Rockwell C40 | 3065N11 |
 | ₺983 | 5 mm | 76 mm | 64 mm | 8 mm | L | Çelik | Hassas | Rockwell C40 | 3065N12 |
 | ₺1.021 | 5 mm | 152 mm | 64 mm | 8 mm | L | Çelik | Hassas | Rockwell C40 | 3065N13 |
 | ₺1.243 | 6 mm | 76 mm | 64 mm | 10 mm | L | Çelik | Hassas | Rockwell C40 | 3065N14 |

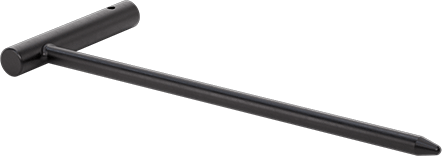

 | ₺1.047 | 6 mm | 152 mm | 64 mm | 10 mm | L | Çelik | Hassas | Rockwell C40 | 3065N15 |

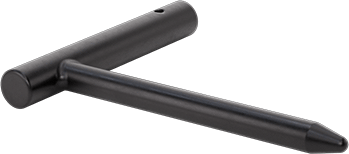

 | ₺1.218 | 8 mm | 88 mm | 76 mm | 11 mm | L | Çelik | Hassas | Rockwell C40 | 3065N16 |

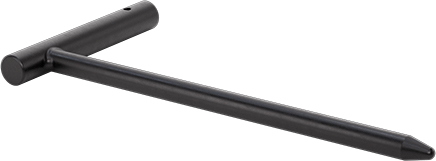

 | ₺1.767 | 8 mm | 152 mm | 76 mm | 11 mm | L | Çelik | Hassas | Rockwell C40 | 3065N17 |

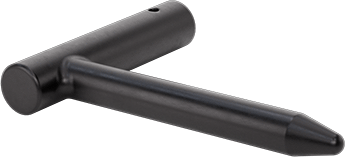

 | ₺1.362 | 10 mm | 76 mm | 64 mm | 13 mm | L | Çelik | Hassas | Rockwell C40 | 3065N18 |

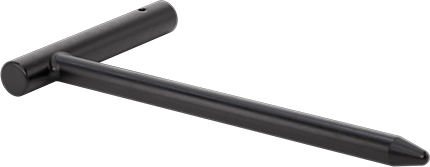

 | ₺1.833 | 10 mm | 152 mm | 88 mm | 13 mm | L | Çelik | Hassas | Rockwell C40 | 3065N19 |

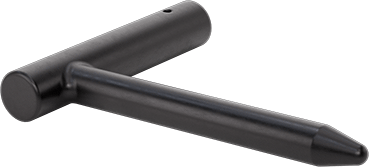

 | ₺1.703 | 12 mm | 102 mm | 88 mm | 16 mm | L | Çelik | Hassas | Rockwell C40 | 3065N21 |

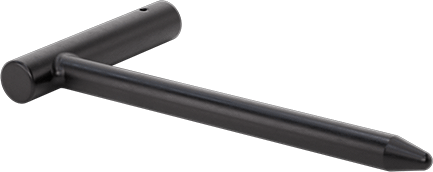

 | ₺1.952 | 12 mm | 152 mm | 88 mm | 16 mm | L | Çelik | Hassas | Rockwell C40 | 3065N22 |

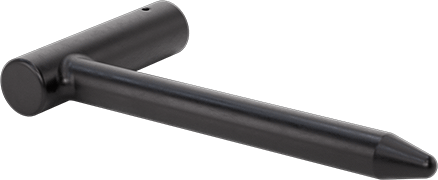

 | ₺2.304 | 16 mm | 152 mm | 88 mm | 22 mm | L | Çelik | Hassas | Rockwell C40 | 3065N23 |

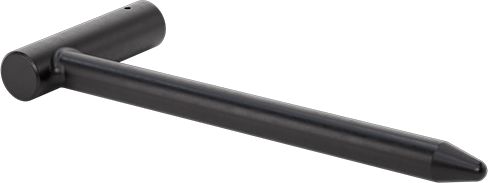

 | ₺2.423 | 16 mm | 204 mm | 88 mm | 22 mm | L | Çelik | Hassas | Rockwell C40 | 3065N24 |

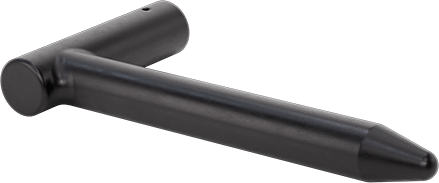

 | ₺2.711 | 20 mm | 152 mm | 88 mm | 22 mm | L | Çelik | Hassas | Rockwell C40 | 3065N25 |

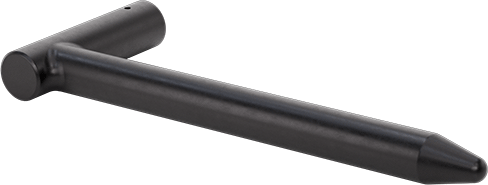

 | ₺3.614 | 20 mm | 204 mm | 88 mm | 22 mm | L | Çelik | Hassas | Rockwell C40 | 3065N26 |
