Bilyalı Burunlu Yaylı Pistonlar
237 urun
| Gorsel | Fiyat | Diş Boyutu | Nose Material | Spring Plunger Nose Type | Gövde Uzunluğu | Gövde Malzemesi | Burun Çapı | Extended Nose Force | Montaj Türü | Compressed Nose Force | Uzatılmış Burun Uzunluğu | Diş Tipi | Diş Aralığı | Parca No |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bilyalı Burunlu Yaylı Pistonlar | ||||||||||||||
 | ₺1.967 | 4-48 | 316 Stainless Steel, Stainless Steel | Bilye | 0.19" | 316 Stainless Steel, Stainless Steel | 0.062" | 0.1 lbf | Dişli | 0.5 lbf | 0.02" | UNF | İnce | 8686A11 |
 | ₺753 | 4-48 | 440C Stainless Steel, Stainless Steel | Bilye | 0.19" | 18-8 Stainless Steel, Stainless Steel | 0.062" | 0.1 lbf | Dişli | 0.5 lbf | 0.02" | UNF | İnce | 3408A88 |
 | ₺725 | 4-48 | 440C Stainless Steel, Stainless Steel | Bilye | 0.19" | Çelik | 0.062" | 0.1 lbf | Dişli | 0.5 lbf | 0.02" | UNF | İnce | 3408A65 |
 | ₺1.370 | 4-48 | Pirinç | Bilye | 0.19" | Pirinç | 0.062" | 0.1 lbf | Dişli | 0.5 lbf | 0.02" | UNF | İnce | 8687A11 |
 | ₺968 | 4-48 | Nylon, Plastic | Bilye | 0.19" | 18-8 Stainless Steel, Stainless Steel | 0.062" | 0.1 lbf | Dişli | 0.5 lbf | 0.02" | UNF | İnce | 34085A35 |
 | ₺852 | 4-48 | Nylon, Plastic | Bilye | 0.19" | Çelik | 0.062" | 0.1 lbf | Dişli | 0.5 lbf | 0.02" | UNF | İnce | 84805A51 |
 | ₺1.967 | 5-40 | 316 Stainless Steel, Stainless Steel | Bilye | 0.25" | 316 Stainless Steel, Stainless Steel | 0.062" | 0.3 lbf | Dişli | 0.8 lbf | 0.02" | UNC | Kaba | 8686A12 |
 | ₺737 | 5-40 | 440C Stainless Steel, Stainless Steel | Bilye | 0.25" | 18-8 Stainless Steel, Stainless Steel | 0.062" | 0.3 lbf | Dişli | 0.8 lbf | 0.02" | UNC | Kaba | 3408A89 |
 | ₺822 | 5-40 | 440C Stainless Steel, Stainless Steel | Bilye | 0.25" | Çelik | 0.062" | 0.3 lbf | Dişli | 0.8 lbf | 0.02" | UNC | Kaba | 3408A66 |
 | ₺1.370 | 5-40 | Pirinç | Bilye | 0.25" | Pirinç | 0.062" | 0.3 lbf | Dişli | 0.8 lbf | 0.02" | UNC | Kaba | 8687A12 |
 | ₺884 | 5-40 | Nylon, Plastic | Bilye | 0.25" | 18-8 Stainless Steel, Stainless Steel | 0.062" | 0.3 lbf | Dişli | 0.8 lbf | 0.02" | UNC | Kaba | 34085A36 |
 | ₺840 | 5-40 | Nylon, Plastic | Bilye | 0.25" | Çelik | 0.062" | 0.3 lbf | Dişli | 0.8 lbf | 0.02" | UNC | Kaba | 84805A52 |
 | ₺1.842 | 6-40 | 316 Stainless Steel, Stainless Steel | Bilye | 0.31" | 316 Stainless Steel, Stainless Steel | 0.078" | 0.5 lbf | Dişli | 1 lbf | 0.023" | UNF | İnce | 8686A13 |
 | ₺717 | 6-40 | 440C Stainless Steel, Stainless Steel | Bilye | 0.31" | 18-8 Stainless Steel, Stainless Steel | 0.078" | 0.5 lbf | Dişli | 1 lbf | 0.023" | UNF | İnce | 3408A9 |
 | ₺809 | 6-40 | 440C Stainless Steel, Stainless Steel | Bilye | 0.31" | Çelik | 0.078" | 0.5 lbf | Dişli | 1 lbf | 0.023" | UNF | İnce | 3408A67 |
 | ₺612 | 6-40 | 440C Stainless Steel, Stainless Steel | Bilye | 0.35" | 18-8 Stainless Steel, Stainless Steel | 0.078" | 0.5 lbf | Dişli | 1 lbf | 0.023" | UNF | İnce | 5901A31 |
 | ₺572 | 6-40 | 440C Stainless Steel, Stainless Steel | Bilye | 0.35" | Çelik | 0.078" | 0.5 lbf | Dişli | 1 lbf | 0.023" | UNF | İnce | 5901A11 |
 | ₺1.370 | 6-40 | Pirinç | Bilye | 0.31" | Pirinç | 0.078" | 0.5 lbf | Dişli | 1 lbf | 0.023" | UNF | İnce | 8687A13 |
 | ₺881 | 6-40 | Nylon, Plastic | Bilye | 0.31" | 18-8 Stainless Steel, Stainless Steel | 0.078" | 0.5 lbf | Dişli | 1 lbf | 0.023" | UNF | İnce | 34085A37 |
 | ₺770 | 6-40 | Nylon, Plastic | Bilye | 0.31" | Çelik | 0.078" | 0.5 lbf | Dişli | 1 lbf | 0.023" | UNF | İnce | 84805A53 |
 | ₺1.842 | 8-32 | 316 Stainless Steel, Stainless Steel | Bilye | 0.34" | 316 Stainless Steel, Stainless Steel | 0.094" | 0.5 lbf | Dişli | 1.3 lbf | 0.025" | UNC | Kaba | 8686A14 |
 | ₺639 | 8-32 | 440C Stainless Steel, Stainless Steel | Bilye | 0.34" | 18-8 Stainless Steel, Stainless Steel | 0.094" | 0.5 lbf | Dişli | 1.3 lbf | 0.025" | UNC | Kaba | 3408A91 |
 | ₺633 | 8-32 | 440C Stainless Steel, Stainless Steel | Bilye | 0.34" | Çelik | 0.094" | 0.5 lbf | Dişli | 1.3 lbf | 0.025" | UNC | Kaba | 3408A68 |
 | ₺624 | 8-32 | 440C Stainless Steel, Stainless Steel | Bilye | 0.45" | 18-8 Stainless Steel, Stainless Steel | 0.094" | 0.5 lbf | Dişli | 1.3 lbf | 0.025" | UNC | Kaba | 5901A32 |
 | ₺582 | 8-32 | 440C Stainless Steel, Stainless Steel | Bilye | 0.45" | Çelik | 0.094" | 0.5 lbf | Dişli | 1.3 lbf | 0.025" | UNC | Kaba | 5901A12 |
 | ₺1.290 | 8-32 | Pirinç | Bilye | 0.34" | Pirinç | 0.094" | 0.5 lbf | Dişli | 1.3 lbf | 0.025" | UNC | Kaba | 8687A14 |
 | ₺852 | 8-32 | Nylon, Plastic | Bilye | 0.34" | 18-8 Stainless Steel, Stainless Steel | 0.094" | 0.5 lbf | Dişli | 1.3 lbf | 0.025" | UNC | Kaba | 34085A5 |
 | ₺747 | 8-32 | Nylon, Plastic | Bilye | 0.34" | Çelik | 0.094" | 0.5 lbf | Dişli | 1.3 lbf | 0.025" | UNC | Kaba | 84805A54 |
 | ₺1.838 | 8-36 | 316 Stainless Steel, Stainless Steel | Bilye | 0.34" | 316 Stainless Steel, Stainless Steel | 0.094" | 0.5 lbf | Dişli | 1.3 lbf | 0.025" | UNF | İnce | 8686A15 |
 | ₺750 | 8-36 | 440C Stainless Steel, Stainless Steel | Bilye | 0.34" | 18-8 Stainless Steel, Stainless Steel | 0.094" | 0.5 lbf | Dişli | 1.3 lbf | 0.025" | UNF | İnce | 3408A92 |
 | ₺698 | 8-36 | 440C Stainless Steel, Stainless Steel | Bilye | 0.34" | Çelik | 0.094" | 0.5 lbf | Dişli | 1.3 lbf | 0.025" | UNF | İnce | 3408A69 |
 | ₺1.439 | 8-36 | Pirinç | Bilye | 0.34" | Pirinç | 0.094" | 0.5 lbf | Dişli | 1.3 lbf | 0.025" | UNF | İnce | 8687A15 |
 | ₺899 | 8-36 | Nylon, Plastic | Bilye | 0.34" | 18-8 Stainless Steel, Stainless Steel | 0.094" | 0.5 lbf | Dişli | 1.3 lbf | 0.025" | UNF | İnce | 34085A38 |
 | ₺728 | 8-36 | Nylon, Plastic | Bilye | 0.34" | Çelik | 0.094" | 0.5 lbf | Dişli | 1.3 lbf | 0.025" | UNF | İnce | 84805A55 |
 | ₺1.466 | 10-24 | 440C Stainless Steel, Stainless Steel | Bilye | 0.51" | 18-8 Stainless Steel, Stainless Steel | 0.094" | 2 lbf | Dişli | 5 lbf | 0.025" | UNC | Kaba | 3408A621 |
 | ₺957 | 10-24 | 440C Stainless Steel, Stainless Steel | Bilye | 0.51" | Çelik | 0.094" | 2 lbf | Dişli | 5 lbf | 0.025" | UNC | Kaba | 3408A521 |
 | ₺1.838 | 10-32 | 316 Stainless Steel, Stainless Steel | Bilye | 0.51" | 316 Stainless Steel, Stainless Steel | 0.094" | 1.5 lbf | Dişli | 3 lbf | 0.025" | UNF | İnce | 8686A16 |
 | ₺1.838 | 10-32 | 316 Stainless Steel, Stainless Steel | Bilye | 0.51" | 316 Stainless Steel, Stainless Steel | 0.094" | 2 lbf | Dişli | 5 lbf | 0.025" | UNF | İnce | 8686A17 |
 | ₺1.182 | 10-32 | 440C Stainless Steel, Stainless Steel | Bilye | 0.51" | 18-8 Stainless Steel, Stainless Steel | 0.094" | 0.5 lbf | Dişli | 1.5 lbf | 0.025" | UNF | İnce | 3408A93 |
 | ₺1.358 | 10-32 | 440C Stainless Steel, Stainless Steel | Bilye | 0.51" | 18-8 Stainless Steel, Stainless Steel | 0.094" | 1.5 lbf | Dişli | 3 lbf | 0.025" | UNF | İnce | 3408A94 |
 | ₺1.365 | 10-32 | 440C Stainless Steel, Stainless Steel | Bilye | 0.51" | 18-8 Stainless Steel, Stainless Steel | 0.094" | 2 lbf | Dişli | 5 lbf | 0.025" | UNF | İnce | 3408A95 |
 | ₺609 | 10-32 | 440C Stainless Steel, Stainless Steel | Bilye | 0.51" | Çelik | 0.094" | 0.5 lbf | Dişli | 1.5 lbf | 0.025" | UNF | İnce | 3408A7 |
 | ₺609 | 10-32 | 440C Stainless Steel, Stainless Steel | Bilye | 0.51" | Çelik | 0.094" | 1.5 lbf | Dişli | 3 lbf | 0.025" | UNF | İnce | 3408A71 |
 | ₺581 | 10-32 | 440C Stainless Steel, Stainless Steel | Bilye | 0.51" | Çelik | 0.094" | 2 lbf | Dişli | 5 lbf | 0.025" | UNF | İnce | 3408A72 |
 | ₺633 | 10-32 | 440C Stainless Steel, Stainless Steel | Bilye | 0.57" | 18-8 Stainless Steel, Stainless Steel | 0.094" | 1.5 lbf | Dişli | 3 lbf | 0.025" | UNF | İnce | 5901A33 |
 | ₺591 | 10-32 | 440C Stainless Steel, Stainless Steel | Bilye | 0.57" | Çelik | 0.094" | 1.5 lbf | Dişli | 3 lbf | 0.025" | UNF | İnce | 5901A13 |
 | ₺1.272 | 10-32 | Pirinç | Bilye | 0.51" | Pirinç | 0.094" | 1.5 lbf | Dişli | 3 lbf | 0.025" | UNF | İnce | 8687A16 |
 | ₺1.272 | 10-32 | Pirinç | Bilye | 0.51" | Pirinç | 0.094" | 2 lbf | Dişli | 5 lbf | 0.025" | UNF | İnce | 8687A17 |
 | ₺1.530 | 10-32 | Nylon, Plastic | Bilye | 0.51" | 18-8 Stainless Steel, Stainless Steel | 0.094" | 0.5 lbf | Dişli | 1.5 lbf | 0.025" | UNF | İnce | 34085A39 |
 | ₺1.523 | 10-32 | Nylon, Plastic | Bilye | 0.51" | 18-8 Stainless Steel, Stainless Steel | 0.094" | 1.5 lbf | Dişli | 3 lbf | 0.025" | UNF | İnce | 34085A41 |

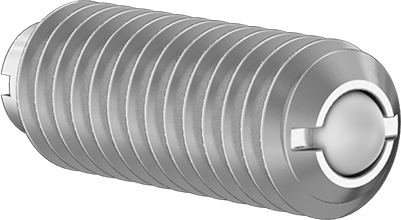

 | ₺1.536 | 10-32 | — | — | — | — | — | — | Dişli | — | — | UNF | İnce | 34085A42 |
 | ₺776 | 10-32 | — | — | — | — | — | — | Dişli | — | — | UNF | İnce | 84805A63 |
 | ₺840 | 10-32 | — | — | — | — | — | — | Dişli | — | — | UNF | İnce | 84805A56 |
 | ₺779 | 10-32 | — | — | — | — | — | — | Dişli | — | — | UNF | İnce | 84805A64 |
 | ₺2.012 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 8686A18 |
 | ₺2.012 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 8686A19 |
 | ₺711 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 3408A96 |
 | ₺705 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 3408A97 |

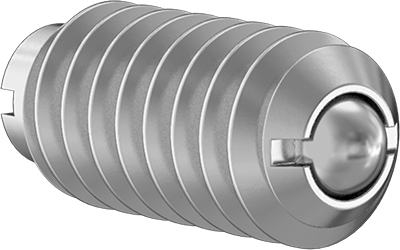

 | ₺737 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 3408A98 |
 | ₺690 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 84775A42 |

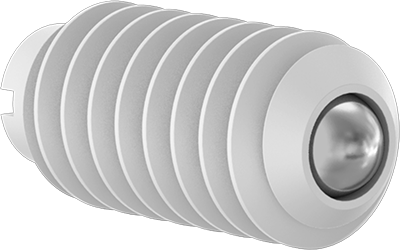

 | ₺717 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 84775A41 |
 | ₺615 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 3408A73 |
 | ₺593 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 3408A74 |

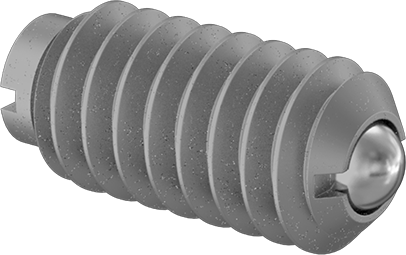

 | ₺657 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 3408A75 |

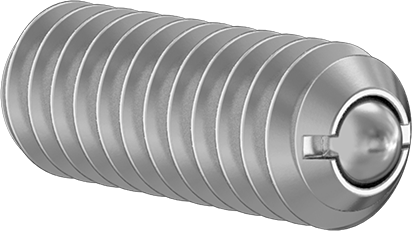

 | ₺659 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 5901A34 |

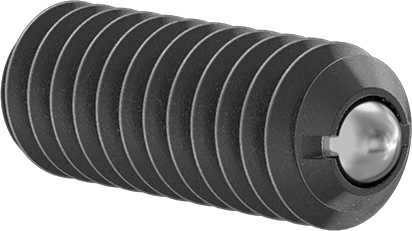

 | ₺597 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 5901A14 |

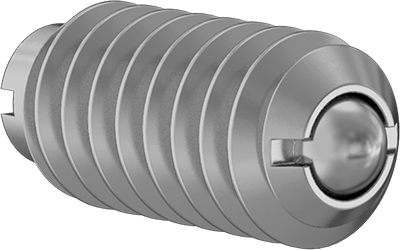

 | ₺1.407 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 8687A18 |
 | ₺1.407 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 8687A19 |
 | ₺981 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 34085A43 |

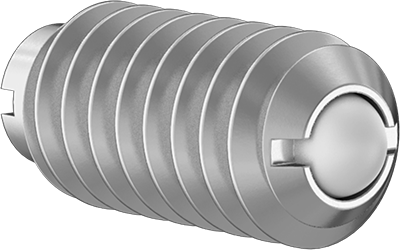

 | ₺987 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 34085A44 |
 | ₺981 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 34085A45 |
 | ₺744 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 84775A52 |

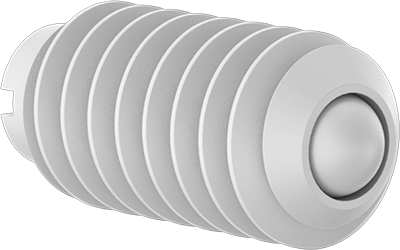

 | ₺770 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 84775A51 |
 | ₺789 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 84805A65 |
 | ₺861 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 84805A57 |
 | ₺789 | 14"-20 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 84805A66 |
 | ₺1.535 | 14"-28 | — | — | — | — | — | — | Dişli | — | — | UNF | İnce | 3408A631 |

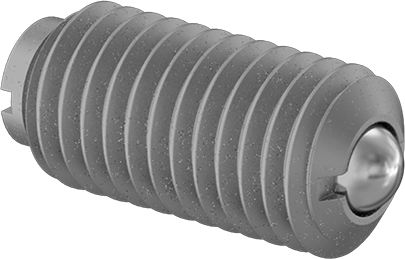

 | ₺1.098 | 14"-28 | — | — | — | — | — | — | Dişli | — | — | UNF | İnce | 3408A531 |
 | ₺2.232 | 516"-18 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 8686A21 |

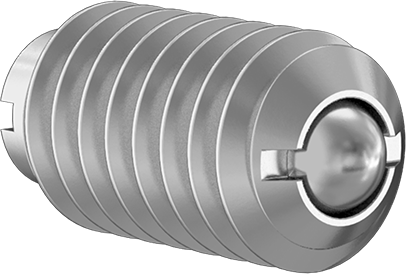

 | ₺809 | 516"-18 | — | — | — | — | — | — | Dişli | — | — | UNC | Kaba | 3408A99 |
